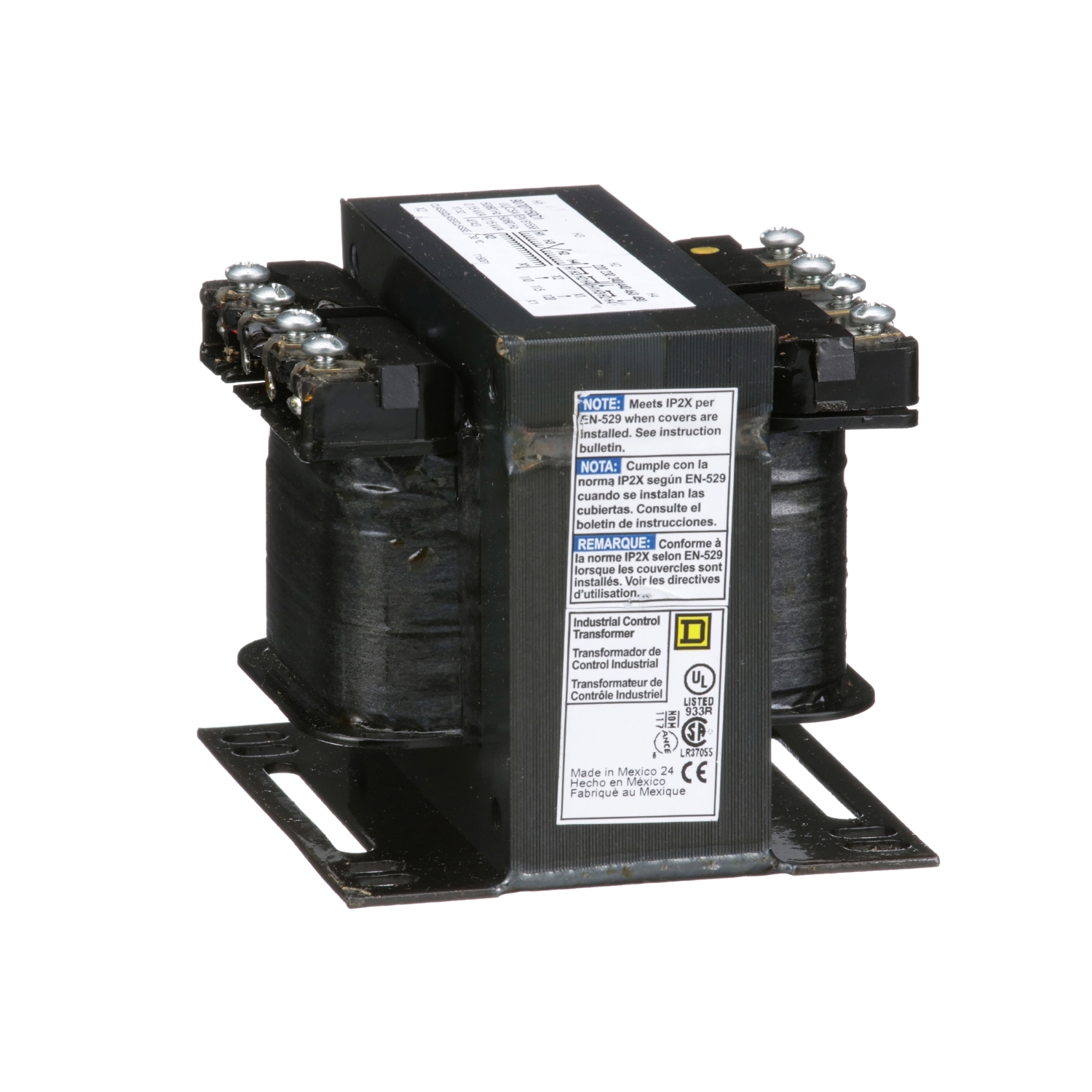

| Product Type | Industrial Control Transformer |
|---|---|
| Type | T |
| Number of Phases | 1 phase |
|---|---|
| Power Rating | 150 VA UL 150 VA CSA 150 VA NOM 150 VA CE |
| Primary to Secondary Voltage | 240 x 480 V 120 V 230 x 460 V 115 V 220 x 440 V 110 V |
| Temperature Rise | 55 °C |
| Electrical Connection | Screw clamp terminals |
| Height | 3.2 in (81.3 mm) |
| Width | 3.75 in (95.25 mm) |
| Depth | 3.59 in (91.19 mm) |
| Material | Copper: winding |
| Fingersafe Cover Compatibility | FSC1 |
| Certifications | CSA file LR37055 guide 184-N-90 UL listed file E61239 |
|---|---|
| Enclosure Type | Not rated (open device) |
| Insulation Temperature | 221 °F (105 °C) |
| Category | US10CP816200 |
|---|---|
| Discount Schedule | 0CP8 |
| GTIN | 785901904656 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.60 in (14.224 cm) |
| Package 1 Width | 6.40 in (16.256 cm) |
| Package 1 Length | 7.10 in (18.034 cm) |
| Package 1 Weight | 5.919 lb(US) (2.685 kg) |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 450 |
| Package 2 Height | 40.00 in (101.600 cm) |
| Package 2 Width | 40.00 in (101.600 cm) |
| Package 2 Length | 48.00 in (121.920 cm) |
| Package 2 Weight | 2506.949 lb(US) (1137.132 kg) |
| Warranty | 10 Years |
|---|
