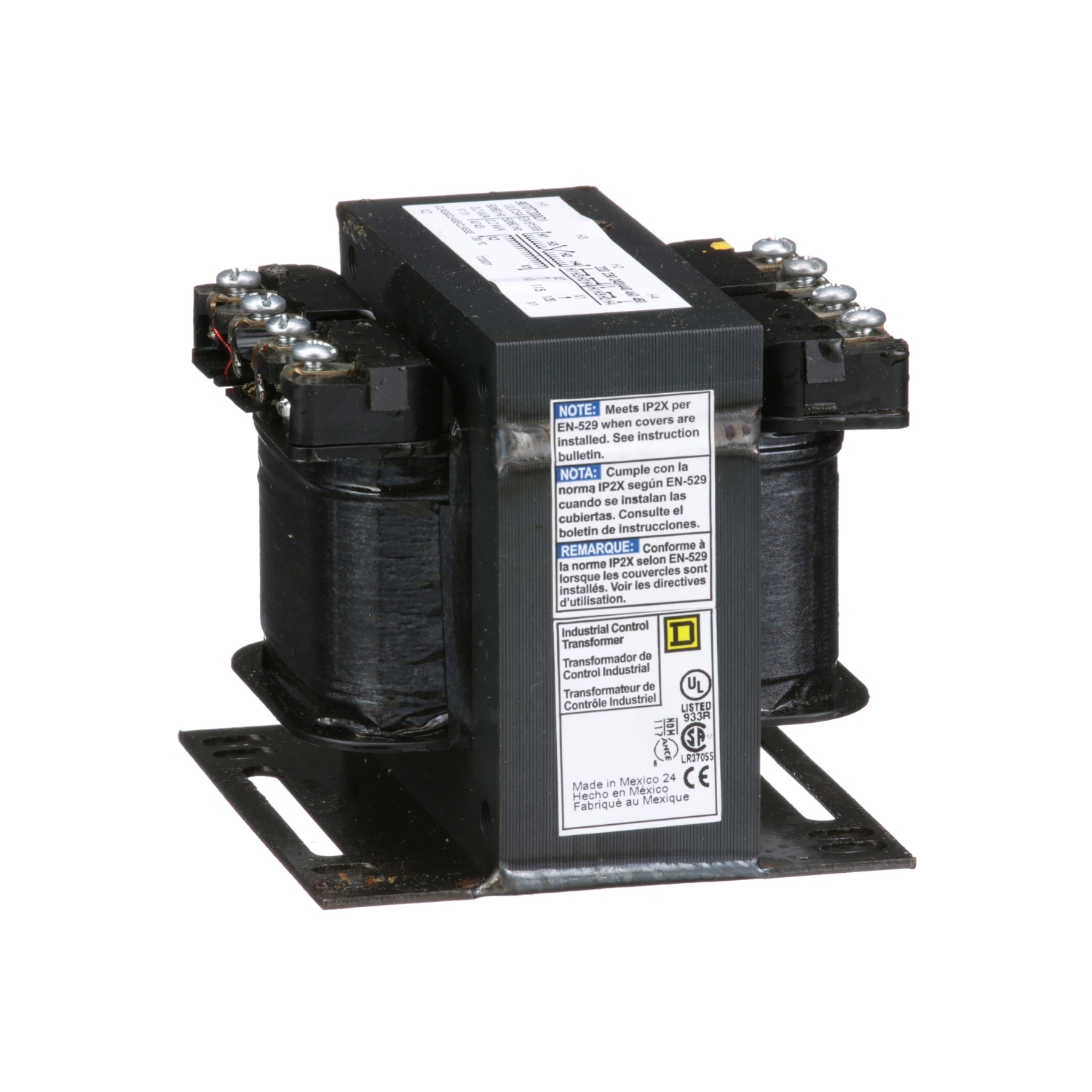

Name: 9070T200D1, Transformer, Type T, industrial control, 200VA, 1 phase, 240x480V primary, 120V secondary, 80C rise
SKU: 9070T200D1
Availability: InStock

9070T200D1, Transformer, Type T, industrial control, 200VA, 1 phase, 240x480V primary, 120V secondary, 80C rise

MXN $2,925.00 - (IVA Incluido) + Envío

34 disponibles

The Square D™ by Schneider Electric Type T Industrial Control Transformers are designed for the global market and are the best choice when size and cost are of concern. They come with unmatched design innovations for top performance and is manufactured using the most advanced insulating materials. They also have customer installable accessories such as covers, fuse blocks and fuse clips to fit your exact need. This industrial control transformer has a power rating of 200VA and is 1 phase. It has a 240x480V primary voltage and 120V secondary voltage. It also has a temperature rise of 80 degrees Celsius. This transformer complies to UL, CSA, CE standards. This product comes with an 18 month warranty.

Comprar Ahora

Main
Product Type	Industrial Control Transformer
Type	T

Complementary
Number of Phases	1 phase
Power Rating	200 VA UL 200 VA CSA 200 VA NOM 200 VA CE
Primary to Secondary Voltage	240 x 480 V 120 V 230 x 460 V 115 V 220 x 440 V 110 V
Temperature Rise	80 °C
Electrical Connection	Screw clamp terminals
Height	3.2 in (81.3 mm)
Width	3.75 in (95.25 mm)
Depth	3.59 in (91.19 mm)
Material	Copper: winding
Fingersafe Cover Compatibility	FSC1

Environment
Certifications	UL listed file E61239 CSA file LR37055 guide 184-N-90
Enclosure Type	Not rated (open device)
Insulation Temperature	266 °F (130 °C)

Ordering and shipping details
Category	US10CP816200
Discount Schedule	0CP8
GTIN	785901904663
Returnability	Yes
Country of origin	MX

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	3.25 in (8.255 cm)
Package 1 Width	3.60 in (9.144 cm)
Package 1 Length	3.75 in (9.525 cm)
Package 1 Weight	5.60 lb(US) (2.54 kg)
Unit Type of Package 2	PAL
Number of Units in Package 2	450
Package 2 Height	40.00 in (101.6 cm)
Package 2 Width	40.00 in (101.6 cm)
Package 2 Length	48.00 in (121.92 cm)
Package 2 Weight	2520.0004 lb(US) (1143.052 kg)
