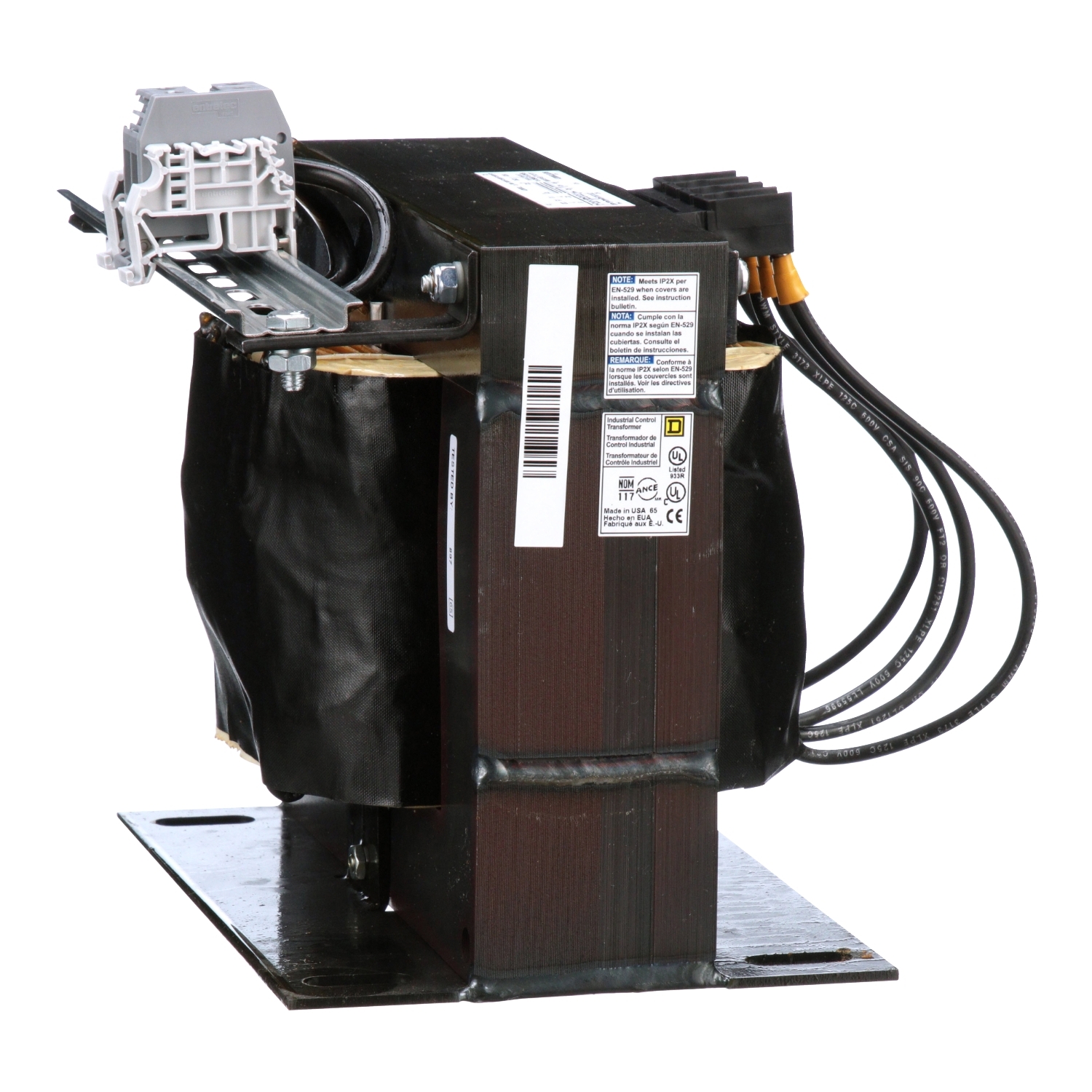

Name: 9070T3000D1, Transformer, Type T, industrial control, 3000VA, 1 phase, 240x480V primary, 120V secondary, 115C rise [TAA, BAA, BABA]
SKU: 9070T3000D1
Availability: InStock

9070T3000D1, Transformer, Type T, industrial control, 3000VA, 1 phase, 240x480V primary, 120V secondary, 115C rise [TAA, BAA, BABA]

MXN $29,211.00 - (IVA Incluido) + Envío

11 disponibles

The Square D™ by Schneider Electric Type T Industrial Control Transformers are designed for the global market and are the best choice when size and cost are of concern. They come with unmatched design innovations for top performance and is manufactured using the most advanced insulating materials. They also have customer installable accessories such as covers, fuse blocks and fuse clips to fit your exact need. This industrial control transformer has a power rating of 3000VA and is 1 phase. It has a 240x480V primary voltage and 120V secondary voltage. It also has a temperature rise of 115 degrees Celsius. This transformer complies to UL, CSA, CE standards. This product comes with an 18 month warranty.

Comprar Ahora

Main
Product Type	Industrial Control Transformer
Type	T

Complementary
Number of Phases	1 phase
Power Rating	3000 VA UL 3000 VA CSA 3000 VA NOM 2000 VA CE
Primary to Secondary Voltage	240 x 480 V 120 V 230 x 460 V 115 V 220 x 440 V 110 V
Temperature Rise	115 °C
Electrical Connection	Screw clamp terminals
Height	8.75 in (222.25 mm)
Width	9 in (228.6 mm)
Depth	7.24 in (183.90 mm)
Material	Copper: winding
Fingersafe Cover Compatibility	FSC2

Environment
Certifications	CSA file LR37055 guide 184-N-90 UL listed file E61239
Enclosure Type	Not rated (open device)
Insulation Temperature	356 °F (180 °C)

Ordering and shipping details
Category	US10CP816205
Discount Schedule	0CP8
GTIN	785901876083
Returnability	Yes
Country of origin	US

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	13.30 in (33.782 cm)
Package 1 Width	12.80 in (32.512 cm)
Package 1 Length	13.00 in (33.02 cm)
Package 1 Weight	65.751 lb(US) (29.824 kg)

Compliance
Compliance	TAA BAA BABA BAA via COTS

Contractual warranty
Warranty	10 Years

Show More Show Less

Peso	0.029824 kg
Dimensiones	34 × 33 × 33.782 cm
