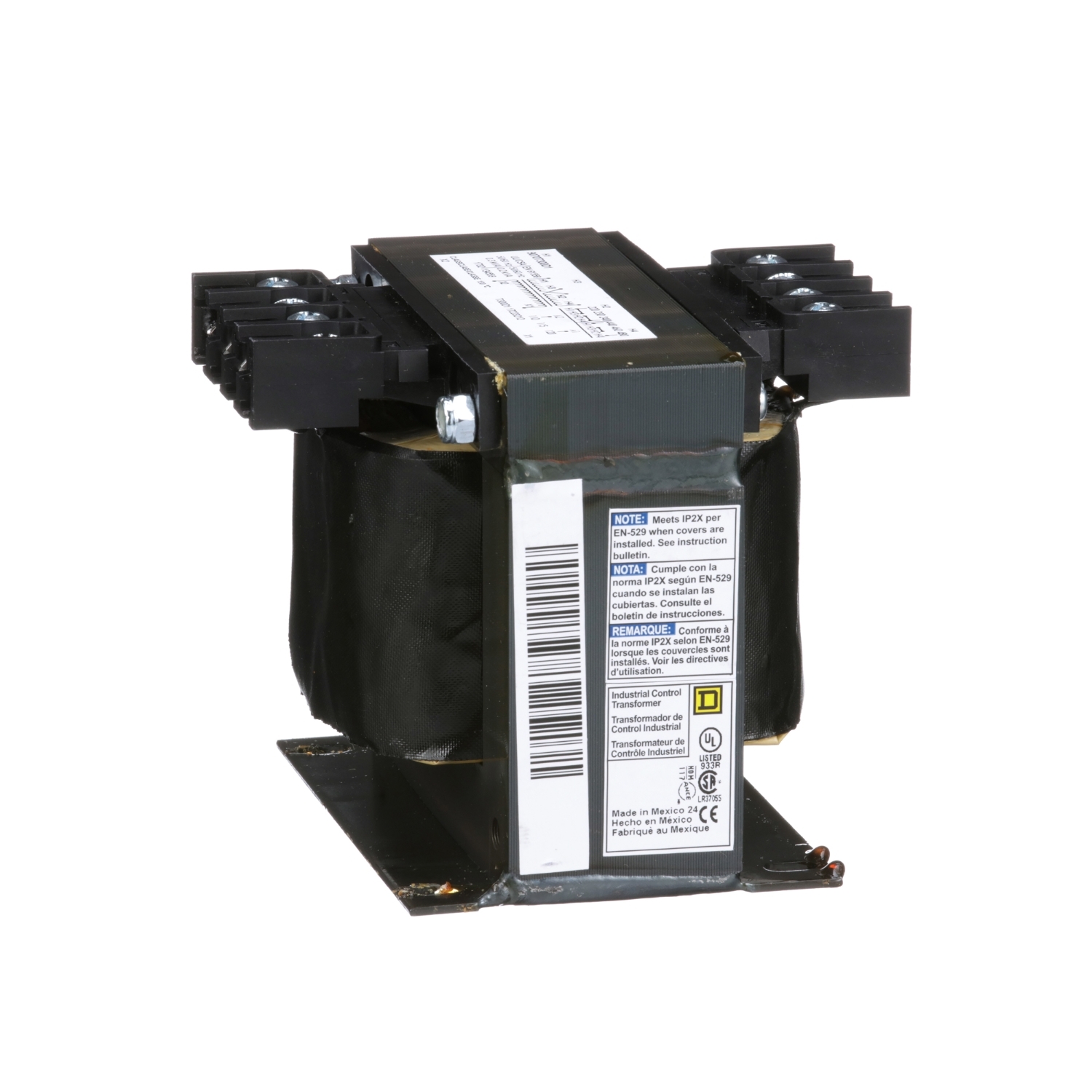

| Product Type | Industrial Control Transformer |
|---|---|
| Type | T |
| Number of Phases | 1 phase |
|---|---|
| Power Rating | 300 VA UL 300 VA CSA 300 VA NOM 200 VA CE |
| Primary to Secondary Voltage | 240 x 480 V 120 V 230 x 460 V 115 V 220 x 440 V 110 V |
| Temperature Rise | 80 °C |
| Electrical Connection | Screw clamp terminals |
| Height | 3.84 in (97.54 mm) |
| Width | 4.5 in (114.3 mm) |
| Depth | 4.74 in (120.40 mm) |
| Material | Copper: winding |
| Fingersafe Cover Compatibility | FSC2 |
| Certifications | CSA file LR37055 guide 184-N-90 UL listed file E61239 |
|---|---|
| Enclosure Type | Not rated (open device) |
| Insulation Temperature | 266 °F (130 °C) |
| Category | US10CP816201 |
|---|---|
| Discount Schedule | 0CP8 |
| GTIN | 785901904687 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.90 in (9.906 cm) |
| Package 1 Width | 4.74 in (12.04 cm) |
| Package 1 Length | 4.50 in (11.43 cm) |
| Package 1 Weight | 9.381 lb(US) (4.255 kg) |
| Warranty | 10 Years |
|---|
