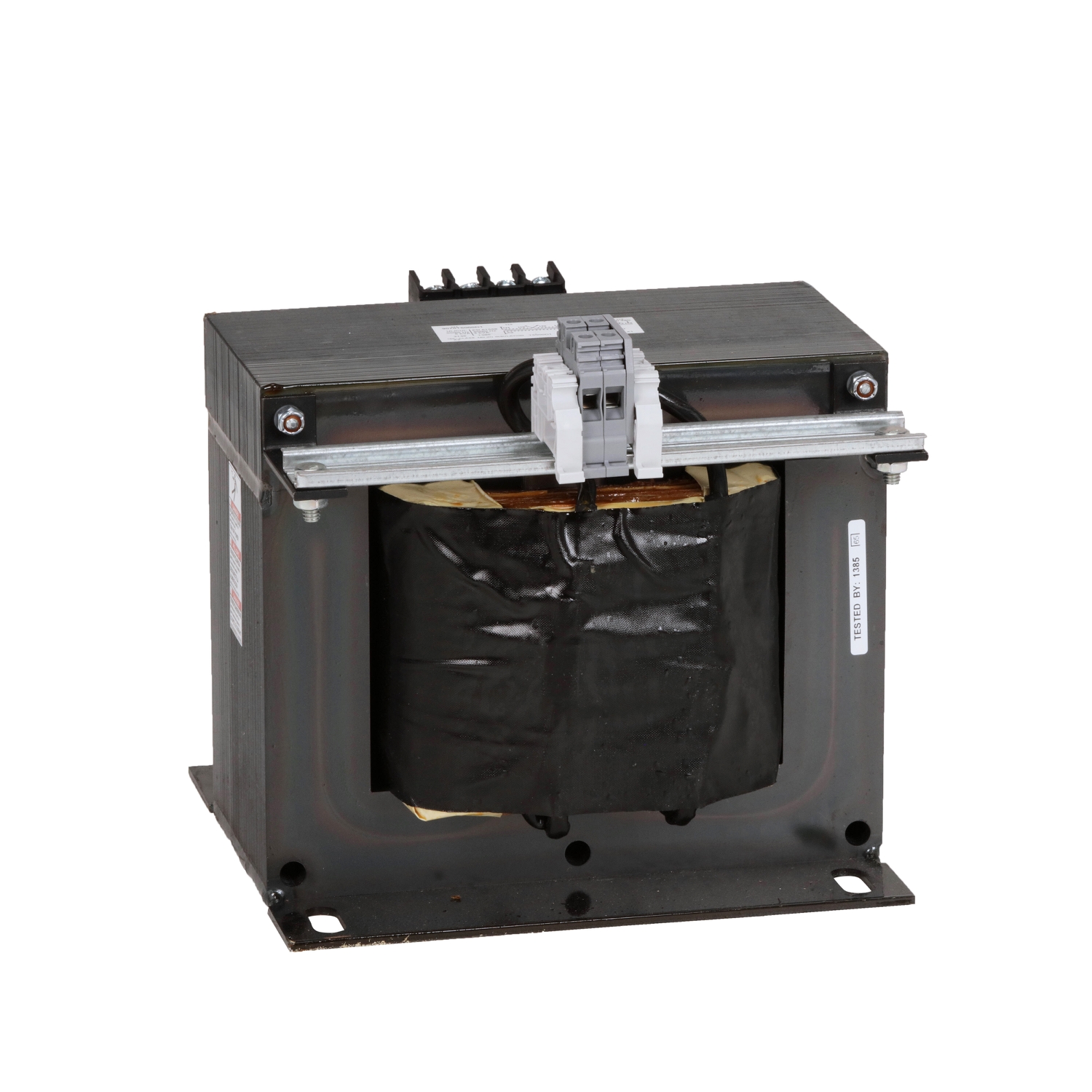

| Product Type | Industrial Control Transformer |
|---|---|
| Type | T |
| Number of Phases | 1 phase |
|---|---|
| Power Rating | 5000 VA UL 5000 VA CSA 5000 VA NOM 3000 VA CE |
| Primary to Secondary Voltage | 240 x 480 V 120 V 230 x 460 V 115 V 220 x 440 V 110 V |
| Temperature Rise | 115 °C |
| Electrical Connection | Screw clamp terminals |
| Height | 8.75 in (222.25 mm) |
| Width | 9 in (228.6 mm) |
| Depth | 9.15 in (232.41 mm) |
| Material | Copper: winding |
| Fingersafe Cover Compatibility | FSC2 |
| Certifications | CSA file LR37055 guide 184-N-90 UL listed file E61239 |
|---|---|
| Enclosure Type | Not rated (open device) |
| Insulation Temperature | 356 °F (180 °C) |
| Category | US10CP816205 |
|---|---|
| Discount Schedule | 0CP8 |
| GTIN | 785901876113 |
| Returnability | Yes |
| Country of origin | US |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 13.20 in (33.528 cm) |
| Package 1 Width | 11.80 in (29.972 cm) |
| Package 1 Length | 14.80 in (37.592 cm) |
| Package 1 Weight | 93.800 lb(US) (42.547 kg) |
| Warranty | 10 Years |
|---|
