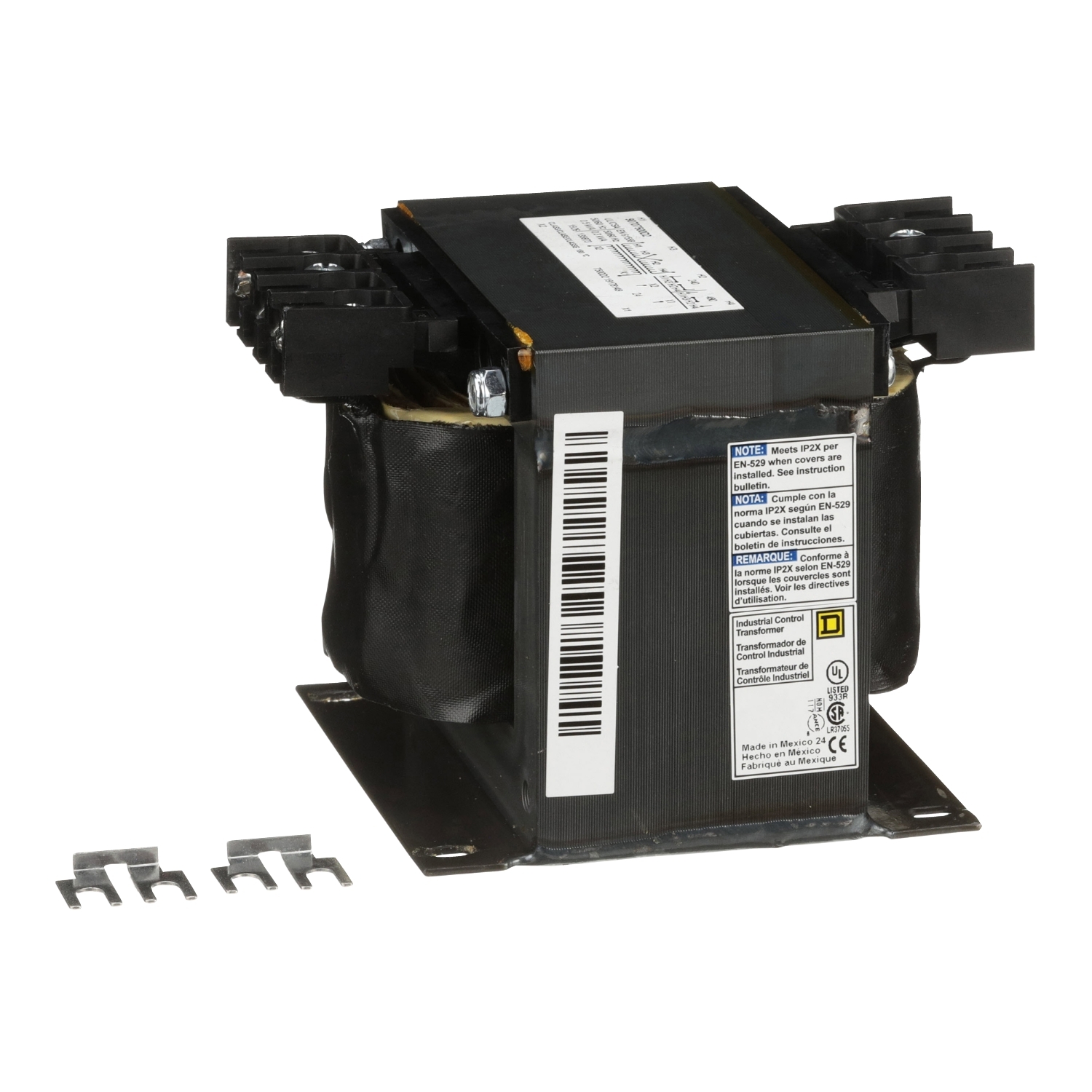

Name: 9070T500D2, Transformer, Type T, industrial control, 500VA, 1 phase, 240x480V primary, 24V secondary, 115C rise
SKU: 9070T500D2
Availability: InStock

9070T500D2, Transformer, Type T, industrial control, 500VA, 1 phase, 240x480V primary, 24V secondary, 115C rise

MXN $3,861.00 - (IVA Incluido) + Envío

1 disponibles

The Square D™ by Schneider Electric Type T Industrial Control Transformers are designed for the global market and are the best choice when size and cost are of concern. They come with unmatched design innovations for top performance and is manufactured using the most advanced insulating materials. They also have customer installable accessories such as covers, fuse blocks and fuse clips to fit your exact need. This industrial control transformer has a power rating of 500VA and is 1 phase. It has a 240x480V primary voltage and 24V secondary voltage. It also has a temperature rise of 115 degrees Celsius. This transformer complies to UL, CSA, CE standards. This product comes with an 18 month warranty.

Comprar Ahora

Main
Product Type	Industrial Control Transformer
Type	T

Complementary
Number of Phases	1 phase
Power Rating	500 VA UL 500 VA CSA 500 VA NOM 300 VA CE
Primary to Secondary Voltage	240 x 480 V 24 V
Temperature Rise	115 °C
Electrical Connection	Screw clamp terminals
Height	3.84 in (97.54 mm)
Width	4.5 in (114.3 mm)
Depth	5.49 in (139.45 mm)
Material	Copper: winding
Fingersafe Cover Compatibility	FSC2

Environment
Certifications	CSA file LR37055 guide 184-N-90 UL listed file E61239
Enclosure Type	Not rated (open device)
Insulation Temperature	356 °F (180 °C)

Ordering and shipping details
Category	US10CP816201
Discount Schedule	0CP8
GTIN	785901845447
Returnability	Yes
Country of origin	MX

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	6.50 in (16.510 cm)
Package 1 Width	6.70 in (17.018 cm)
Package 1 Length	7.85 in (19.939 cm)
Package 1 Weight	12.339 lb(US) (5.597 kg)
Unit Type of Package 2	PAL
Number of Units in Package 2	150
Package 2 Height	40.00 in (101.600 cm)
Package 2 Width	40.00 in (101.600 cm)
Package 2 Length	48.00 in (121.920 cm)
Package 2 Weight	1851.0005 lb(US) (839.599 kg)
