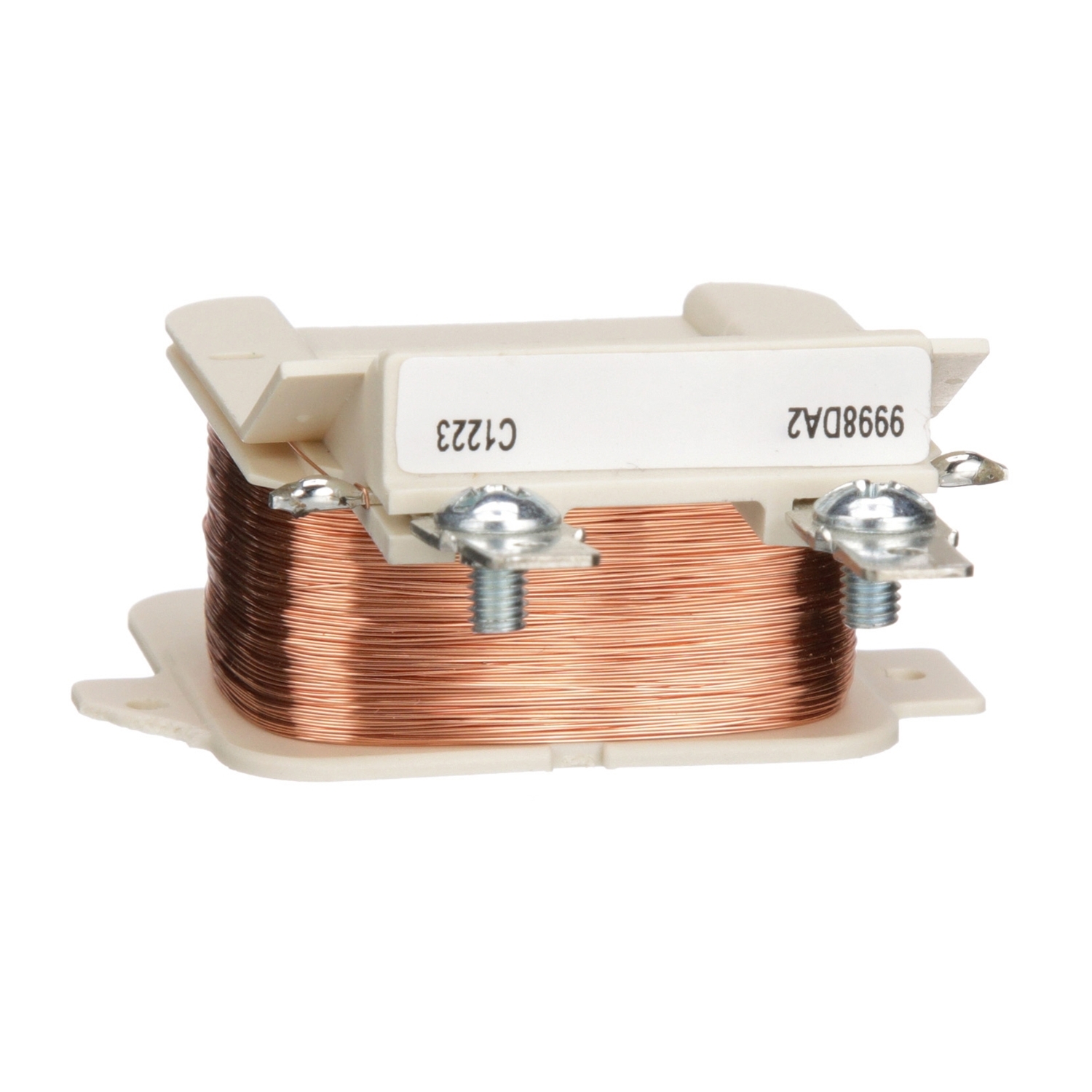

9998DA2V09, Contactor, Definite Purpose, replacement coil, 220/240VAC 50/60Hz, for 8910DPA 50A and 60A contactors, 2 and 3 poles

MXN $1,629.00 - (IVA Incluido) + Envío

33 disponibles

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This replacement coil is for 8910DPA5 or 8910DPA6 definite purpose contactor rated 50A or 60A with 2 or 3 poles. Replacement coils are available with a variety of coil voltages. This 208/240 VAC 60 Hz and 220 VAC 50 Hz coil is for a 8910DPA5 and 8910DPA6 definite purpose contactor. The inrush power of this coil is 109 VA. It has an average sealed consumption of 10 VA. This coil is 3.27 inches tall, 2.56 inches wide and 3.67 inches deep. This coil is used in a contactor that is UL listed and CSA certified.

Comprar Ahora

Categoría: Contactors

Etiqueta: Contactors

SKU: 9998DA2V09

Contactor, Definite Purpose, replacement coil, 220/240VAC 50/60Hz, for 8910DPA 50A and 60A contactors, 2 and 3 poles

9998DA2V09

Main
Product or Component Type	Coil
Accessory / separate part destination	8910DPA contactor

Complementary
[Ue] rated operational voltage	208/240 V AC 60 Hz 220 V AC 50 Hz
Inrush power in VA	109 VA
Average consumption	10 VA
Height	3.27 in (83.06 mm)
Width	2.56 in (65.02 mm)
Depth	3.67 in (93.22 mm)

Ordering and shipping details
Category	US1CP1B21752
Discount Schedule	CP1B
GTIN	785901081456
Returnability	Yes
Country of origin	MX

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	1.700 in (4.318 cm)
Package 1 Width	2.600 in (6.604 cm)
Package 1 Length	3.50 in (8.89 cm)
Package 1 Weight	2.720 oz (77.111 g)

Contractual warranty
Warranty	18 months

Show More Show Less

Peso	5 kg
Dimensiones	15 × 15 × 15 cm
Marcas	Schneider Electric

Marca

Schneider Electric

Product Datasheet

Instruction Sheet
