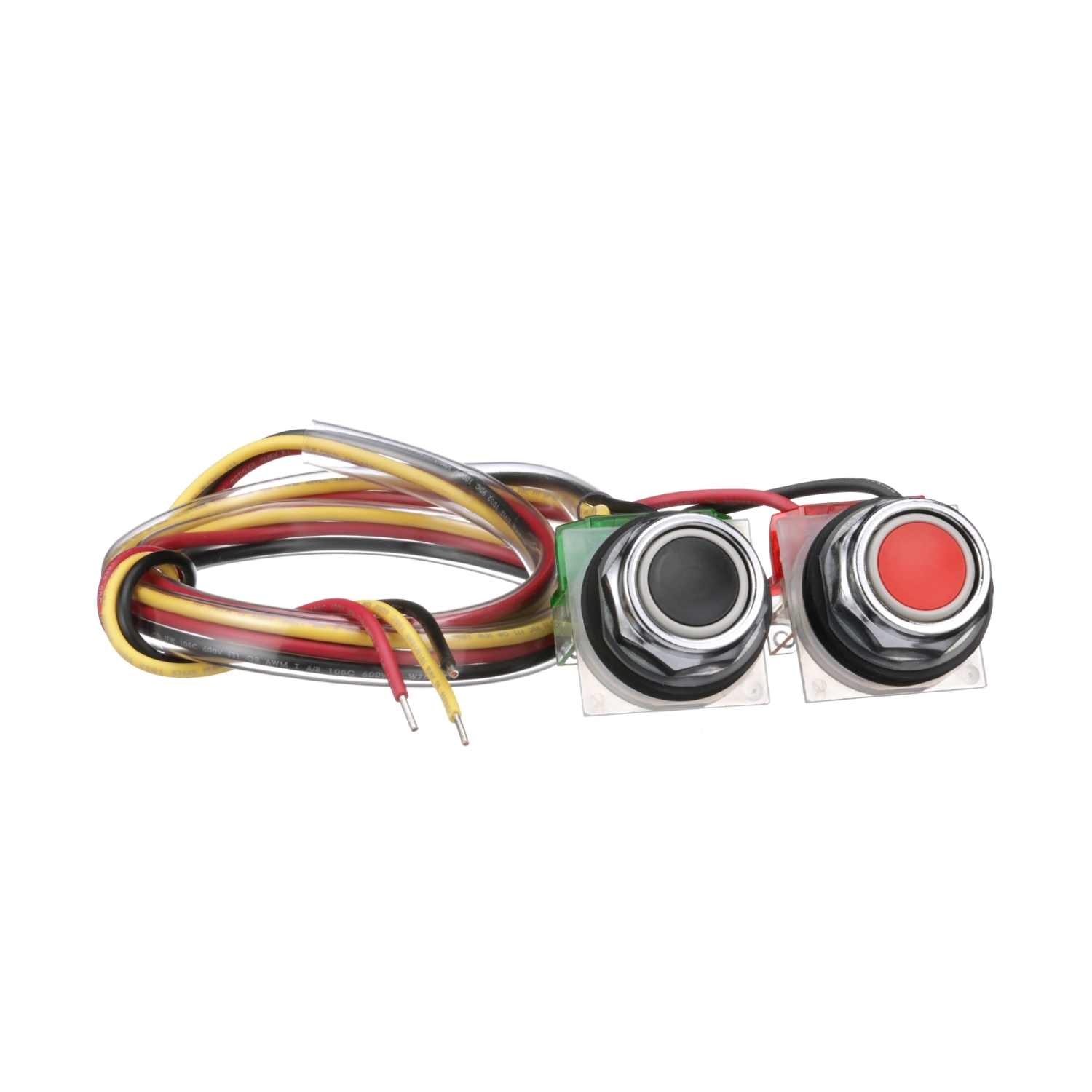

9999SA3, NEMA Motor Starter and contactor, Type S, start/stop or on/off push button kit, NEMA 1/3R/12

USD $276.32 - (IVA Incluido) + Envío

8 disponibles

Type S magnetic contactors and starters are for motor control applications and 8903S lighting contactors are for lighting control applications. This Start Stop push button kit is for NEMA size 4 through 7 Type S contactors and starters or 8903SQ through 8903SZ lighting contactors in NEMA 1 enclosure. The push button kit is mounted into the knockout in the enclosure cover. This push button kit is UL listed and CSA certified.

Comprar Ahora

Categoría: Contactors

Etiqueta: Contactors

SKU: 9999SA3

NEMA Motor Starter and contactor, Type S, start/stop or on/off push button kit, NEMA 1/3R/12

9999SA3

Main
Product Range	Type S
Component type	Push-button
Used with	contactor starter

Complementary
NEMA size	2 0 6 4 5 3 7 00 1
marking	START-STOP ON-OFF
Mounting Mode	Panel-mounted
Rated breaking capacity	6 A 120 V AC inductive control circuit UL 508 3 A 240 V AC inductive control circuit UL 508 1.2 A 600 V AC inductive control circuit UL 508 10 A 600 V AC resistive control circuit UL 508 1.1 A 125 V DC resistive control circuit UL 508 0.55 A 250 V DC resistive control circuit UL 508 0.2 A 600 V DC resistive control circuit UL 508

Environment
NEMA Degree of Protection	NEMA 1 NEMA 12/3R
Product Certifications	UL Recognized CSA

Ordering and shipping details
Category	US10CP121761
Discount Schedule	0CP1
GTIN	785901030171
Returnability	Yes
Country of origin	MX

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	3.4 in (8.6 cm)
Package 1 Width	4.4 in (11.2 cm)
Package 1 Length	6.5 in (16.5 cm)
Package 1 Weight	16.5 oz (467.2 g)
