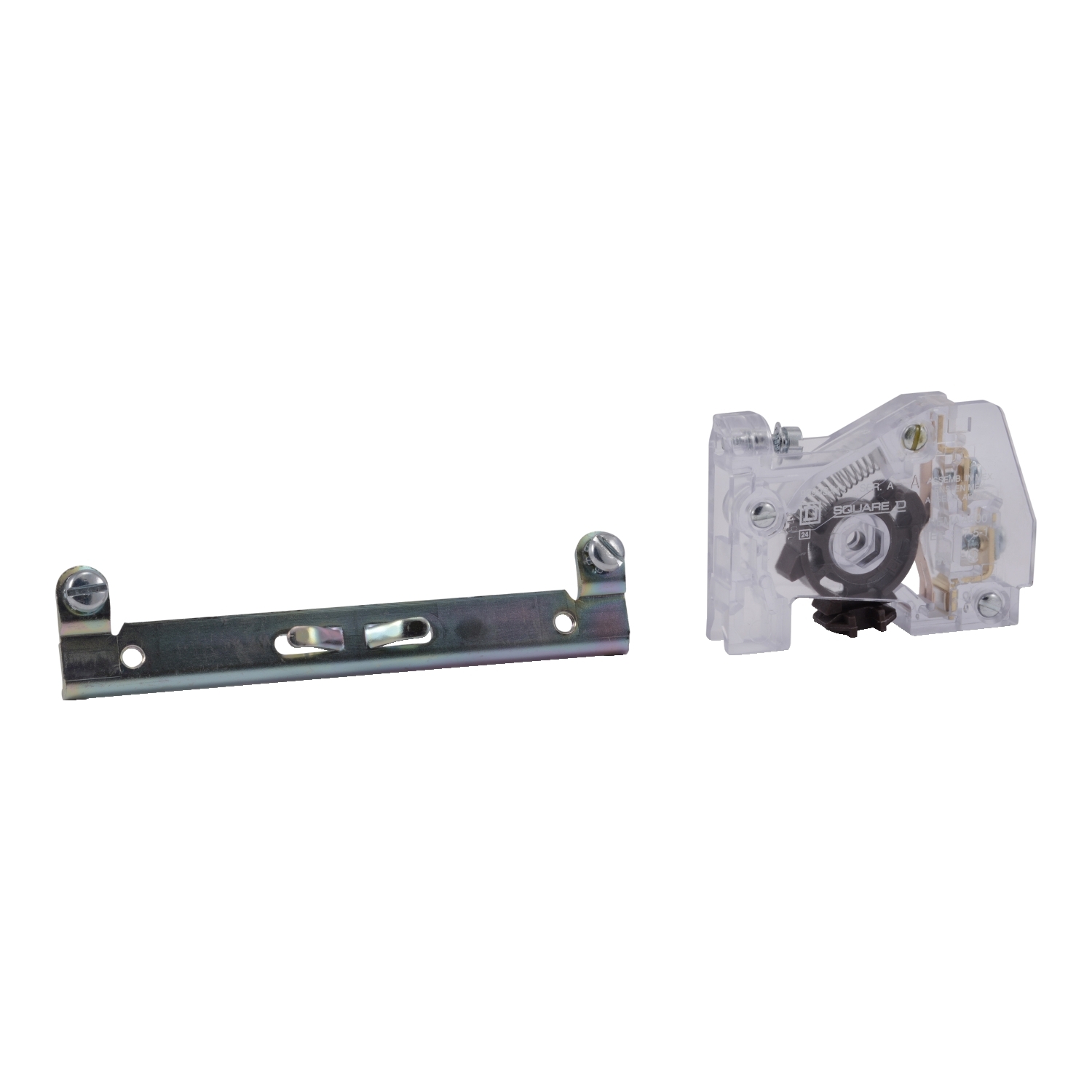

9999SX13, NEMA Motor Starter and contactor, Type S, auxiliary contact, 1 NO contact, external, nonconvertible

MXN $1,905.00 - (IVA Incluido) + Envío

1 disponibles

Type S magnetic contactors and starters are for motor control applications and 8903S lighting contactors are for lighting control applications. This external nonconvertible contact can be used as part of an electrical interlock system. This auxiliary contact has one normally open contact. Auxiliary contact module has a NEMA B600 contact rating with a maximum voltage rating of 600VAC. Inductive break rating of 3.0 A at 120 VAC. Contact modules are UL component recognized and CSA certified.

Comprar Ahora

Categoría: Contactors

Etiqueta: Contactors

SKU: 9999SX13

NEMA Motor Starter and contactor, Type S, auxiliary contact, 1 NO contact, external, nonconvertible

9999SX13

Main
Product Range	Type S
Component type	Auxiliary Contact Module
Used with	contactor starter

Complementary
NEMA size	1 6 7 5 0 3 2 00 4
Auxiliary contact composition	1 NO
[Uc] control circuit voltage	<= 600 V AC 50/60 Hz
Rated breaking capacity	6 A 120 V AC inductive control circuit UL 508 3 A 240 V AC inductive control circuit UL 508 1.2 A 600 V AC inductive control circuit UL 508 1.5 A 480 V AC inductive control circuit UL 508 10 A <= 600 V AC resistive control circuit UL 508

Environment
Product Certifications	UL Listed CSA UL Recognized

Ordering and shipping details
Category	US10CP121761
Discount Schedule	0CP1
GTIN	785901721307
Returnability	No
Country of origin	MX

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	1.50 in (3.81 cm)
Package 1 Width	3.0000000000 in (7.62 cm)
Package 1 Length	4.50 in (11.43 cm)
Package 1 Weight	2.720 oz (77.111 g)
