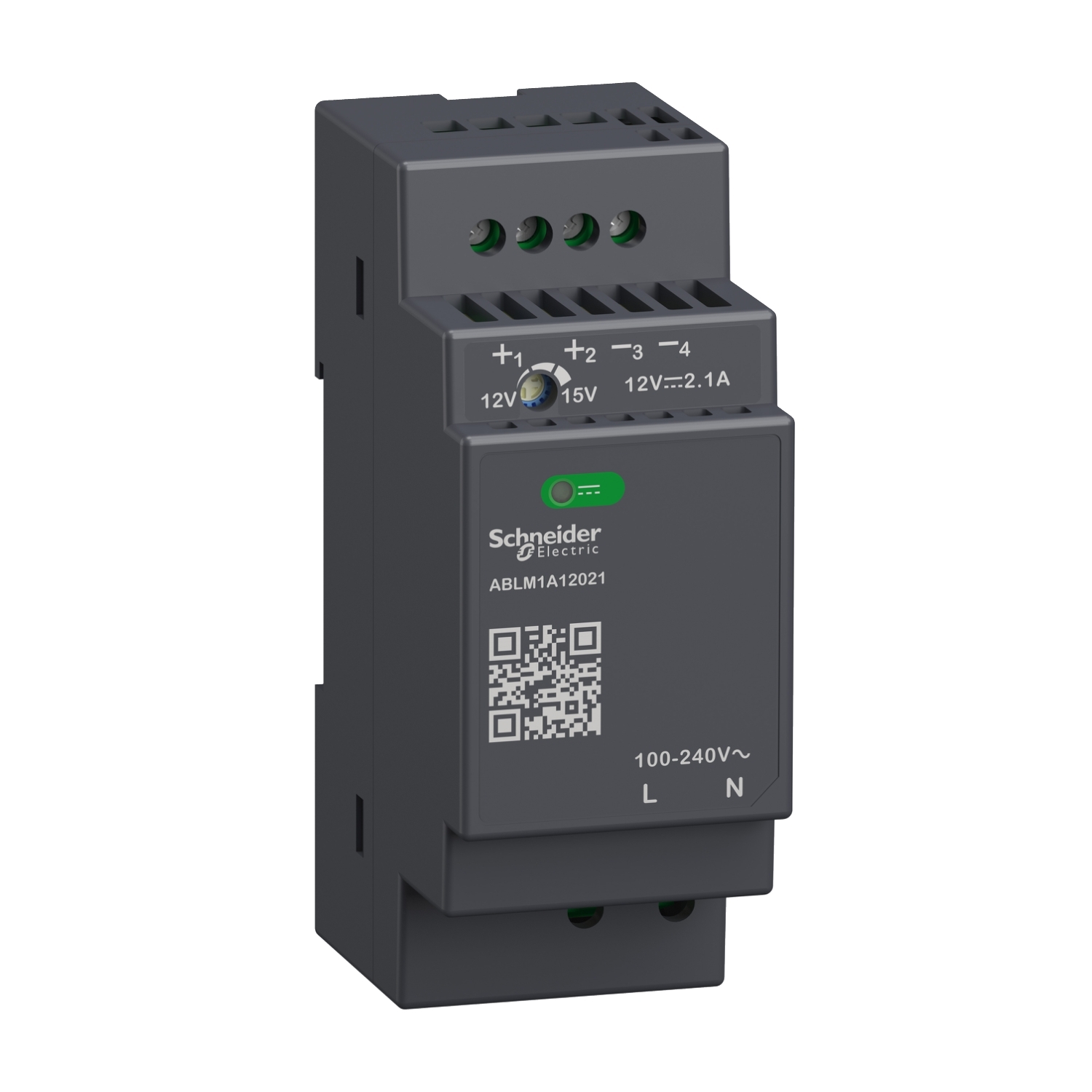

| Range of Product | Modicon Power Supply |
|---|---|
| Product or Component Type | Power supply |
| Power supply type | Regulated switch mode |
| Variant option | Modular |
| Enclosure Material | Plastic |
| Nominal input voltage | 100…240 V AC single phase 100…240 V AC phase to phase |
| Kw Rating | 25 W |
| Output voltage | 12 V DC |
| Power supply output current | 2.1 A |
| Efficiency at full load | 90…264 V AC |
|---|---|
| Nominal network frequency | 50…60 Hz |
| Network system compatibility | TN TT IT |
| Maximum leakage current | 0.25 mA 240 V AC |
| Input protection type | Integrated fuse (not interchangeable) 3.15 A External protection (recommended) 20 A Curve B External protection (recommended) 20 A Curve C External protection (recommended) 4 A Curve B External protection (recommended) 4 A Curve C |
| Inrush current | 25 A 115 V 50 A 230 V |
| Power factor | 0.48 at 115 V AC 0.38 at 230 V AC |
| Efficiency | 85 % 115 V AC 85 % 230 V AC |
| Output voltage adjustment | 12…15 V |
| Power dissipation in W | 4.6 W |
| Current consumption | < 0.8 A 115 V AC < 0.6 A 230 V AC |
| Turn-on time | < 2 s |
| Holding time | > 20 ms 115 V AC > 60 ms 230 V AC |
| Startup with capacitive loads | 3000 µF |
| Residual ripple | < 100 mV |
| Meantime between failure [MTBF] | 2500000 h at 77 °F (25 °C), full load 1000000 h at 131 °F (55 °C), 80 % load |
| Output protection type | Against overload and short-circuits, protection technology: automatic reset Against over temperature, protection technology: manual reset Against overvoltage, protection technology: manual reset |
| Connections – terminals | Screw connection 0.5…1.5 mm², AWG 20…AWG 16) without wire end ferrule input/output Screw connection 0.5…1 mm², AWG 20…AWG 18) with wire end ferrule input/output |
| Line and load regulation | < 0.5 % network in line < 1 % network 0 to 100 % load |
| Status LED | 1 LED (Green) output voltage |
| Depth | 2.2 in (55.6 mm) |
| Height | 3.6 in (91 mm) |
| Width | 1.4 in (36 mm) |
| Net Weight | 0.375 lb(US) (0.170 kg) |
| Output coupling | Serial |
| Mounting support | Top hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 Double-profile DIN rail panel mounting |
| Supply | SELV IEC 60950-1 SELV IEC 60204-1 SELV IEC 60364-4-41 |
| Dielectric strength | 3000 V AC input/output |
| Service life | 10 year(s) |
| Overvoltage category | II |
| Standards | IEC 62368-1 EN/IEC 61010-1 EN 61010-2-201 EN/IEC 61204-3 IEC 61000-6-1 IEC 61000-6-2 IEC 61000-6-3 IEC 61000-6-4 IEC 61000-3-2 EN 61000-3-3 UL 62368-1 UL 61010-1 UL 61010-2-201 CSA C22.2 No 62368-1 CSA C22.2 No 61010-1 CSA C22.2 No 61010-2-201 EN/IEC 62368-1 |
|---|---|
| Product certifications | CE CUL Listed CUL Recognized RCM CB Scheme EAC KC NEC class 2 |
| Operating altitude | < 6561.68 ft (2000 m) overvoltage category III 2000 m…5000 m overvoltage category II |
| Shock resistance | 150 m/s² 11 ms |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | -13…131 °F (-25…55 °C) without current derating mounting position A < 6561.68 ft (2000 m) 131…158 °F (55…70 °C) with current derating of 2.67 % per °C mounting position A < 6561.68 ft (2000 m) |
| Electrical shock protection class | Class II without PE connection |
| Pollution degree | 2 |
| Vibration resistance | 3 mm (f= 2…9 Hz) conforming to IEC 60721-3-3 10 m/s² (f= 9…200 Hz) conforming to IEC 60721-3-3 |
| Electromagnetic immunity | Immunity to electrostatic discharge – test level: 8 kV (contact discharge) conforming to IEC 61000-4-2 Immunity to electrostatic discharge – test level: 15 kV (air discharge) conforming to IEC 61000-4-2 Electromagnetic field immunity test – test level: 15 V/m (80 MHz…2 GHz) conforming to IEC 61000-4-3 Electromagnetic field immunity test – test level: 5 V/m (2…2.7 GHz) conforming to IEC 61000-4-3 Electromagnetic field immunity test – test level: 5 V/m (2.7…6 GHz) conforming to IEC 61000-4-3 Immunity to fast transients – test level: 4 kV (on input-output) conforming to IEC 61000-4-4 Surge immunity test – test level: 4 kV (between power supply and earth) conforming to IEC 61000-4-5 Surge immunity test – test level: 3 kV (between phases) conforming to IEC 61000-4-5 Immunity to conducted disturbances – test level: 15 V (0.15…80 MHz) conforming to IEC 61000-4-6 Immunity to magnetic fields – test level: 30 A/m (50…60 Hz) conforming to IEC 61000-4-8 Immunity to voltage dips – test level: 100 % (1 cycle) conforming to IEC 61000-4-11 Immunity to voltage dips – test level: 60 % (10 cycles) conforming to IEC 61000-4-11 Immunity to voltage dips – test level: 30 % (25 cycles) conforming to IEC 61000-4-11 Disturbing field emission conforming to EN 55016-2-3 Limits for harmonic current emissions conforming to IEC 61000-3-2 conforming to EN 55016-1-2 conforming to EN 55016-2-1 |
| Electromagnetic emission | Conducted emissions IEC 61000-6-3 Radiated emissions IEC 61000-6-4 |
| Category | US1CP1222525 |
|---|---|
| Discount Schedule | CP12 |
| GTIN | 3606481500144 |
| Returnability | Yes |
| Country of origin | IN |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.77 in (4.500 cm) |
| Package 1 Width | 2.44 in (6.200 cm) |
| Package 1 Length | 4.33 in (11.000 cm) |
| Package 1 Weight | 6.208 oz (176.000 g) |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 29 |
| Package 2 Height | 5.91 in (15.000 cm) |
| Package 2 Width | 11.81 in (30.000 cm) |
| Package 2 Length | 15.75 in (40.000 cm) |
| Package 2 Weight | 12.575 lb(US) (5.704 kg) |
