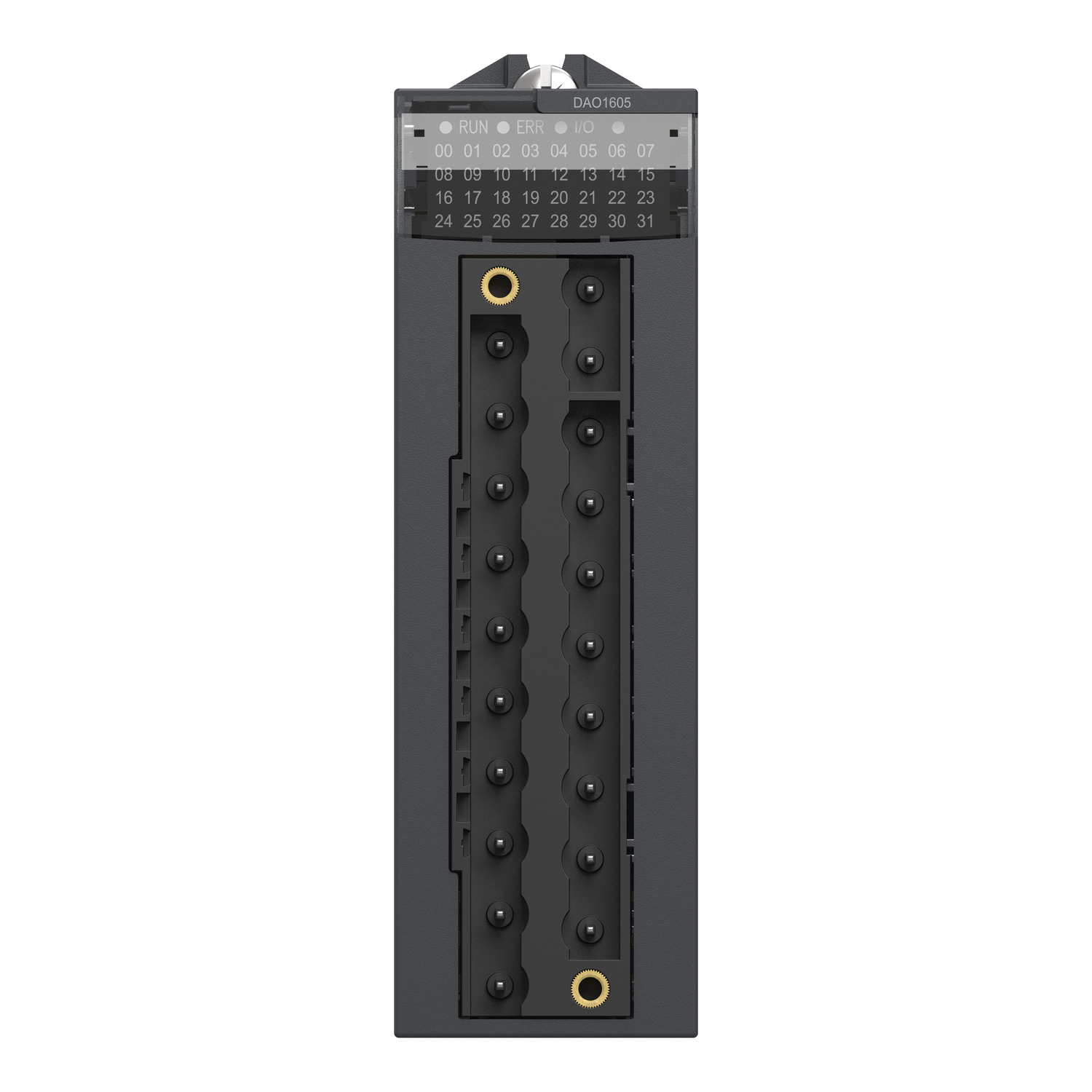

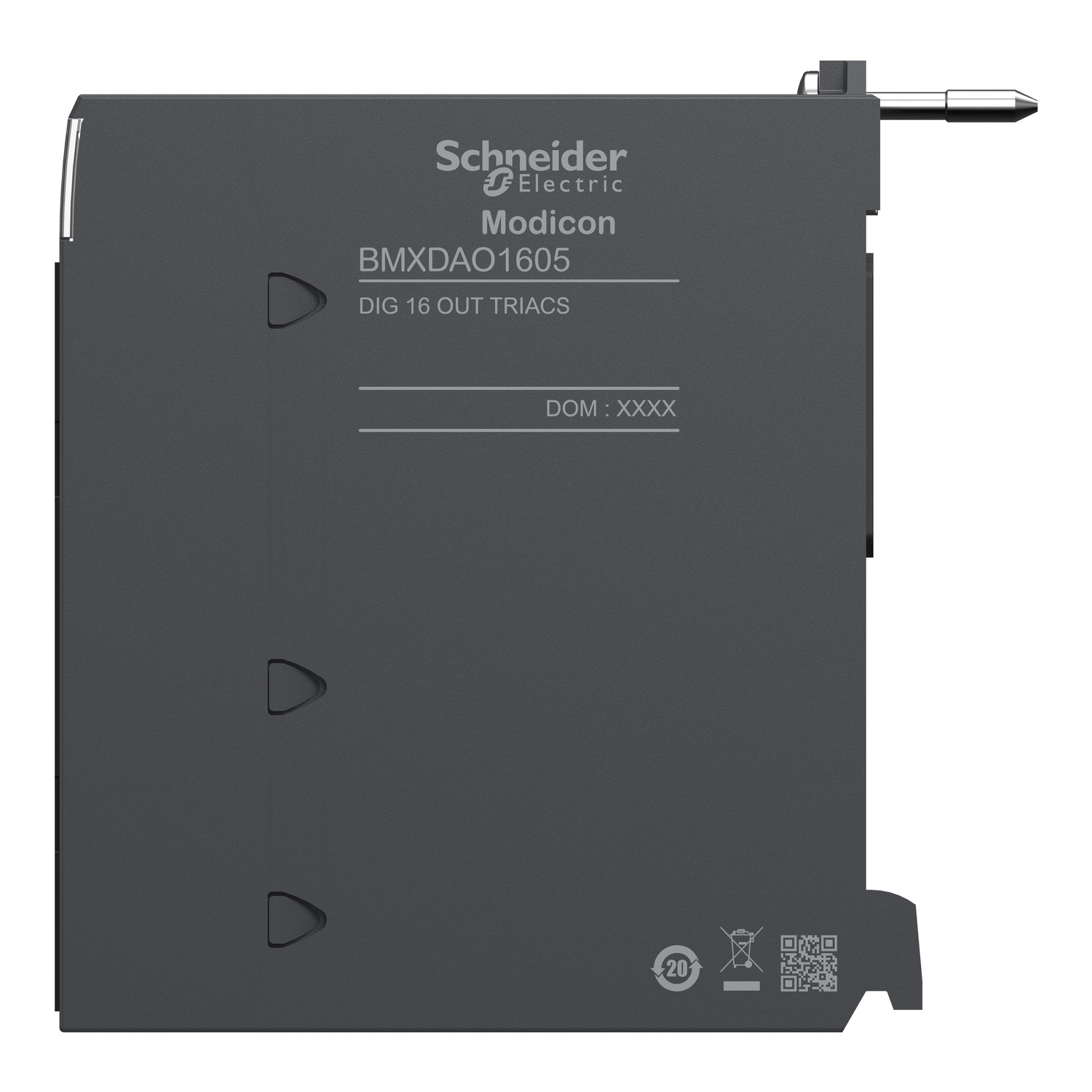

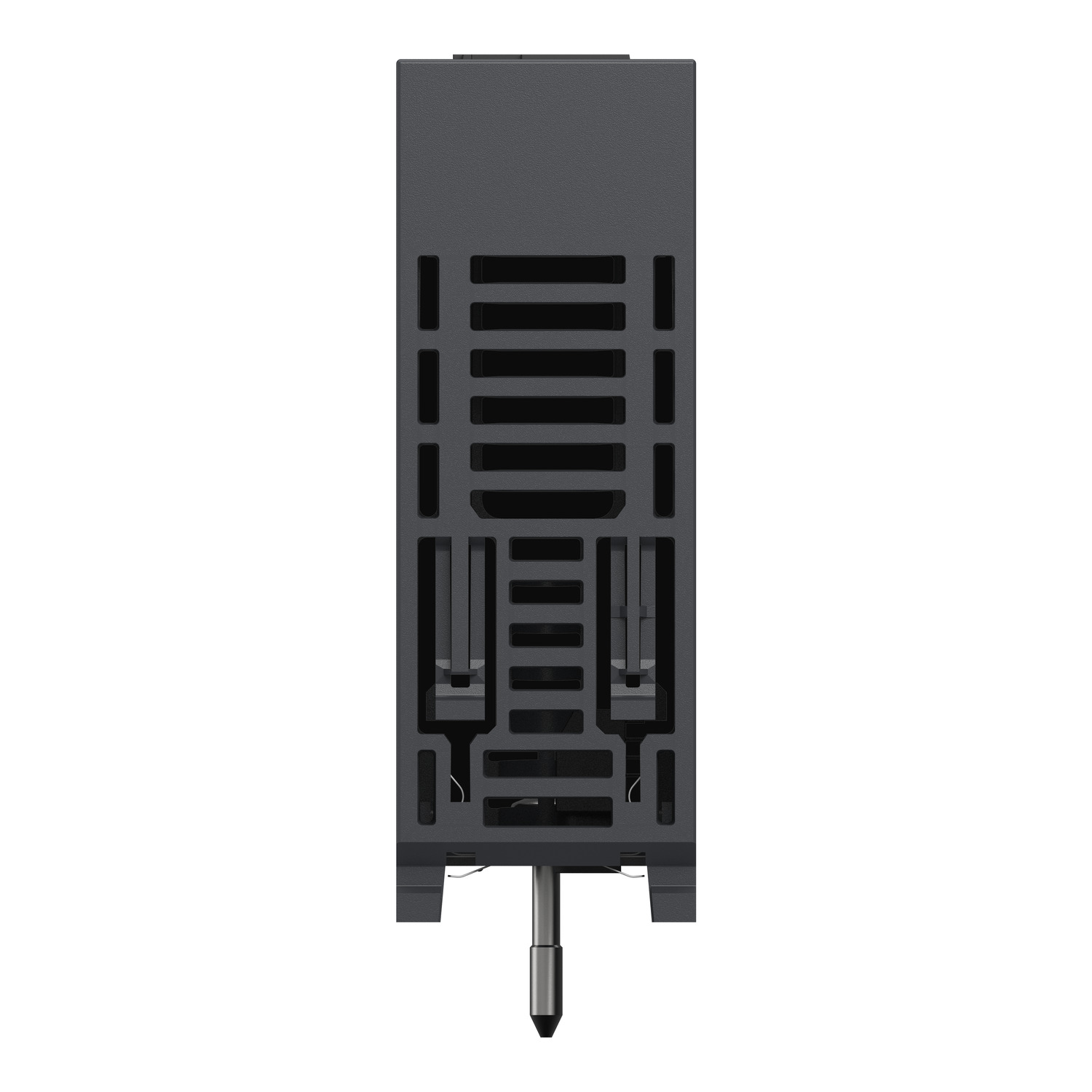

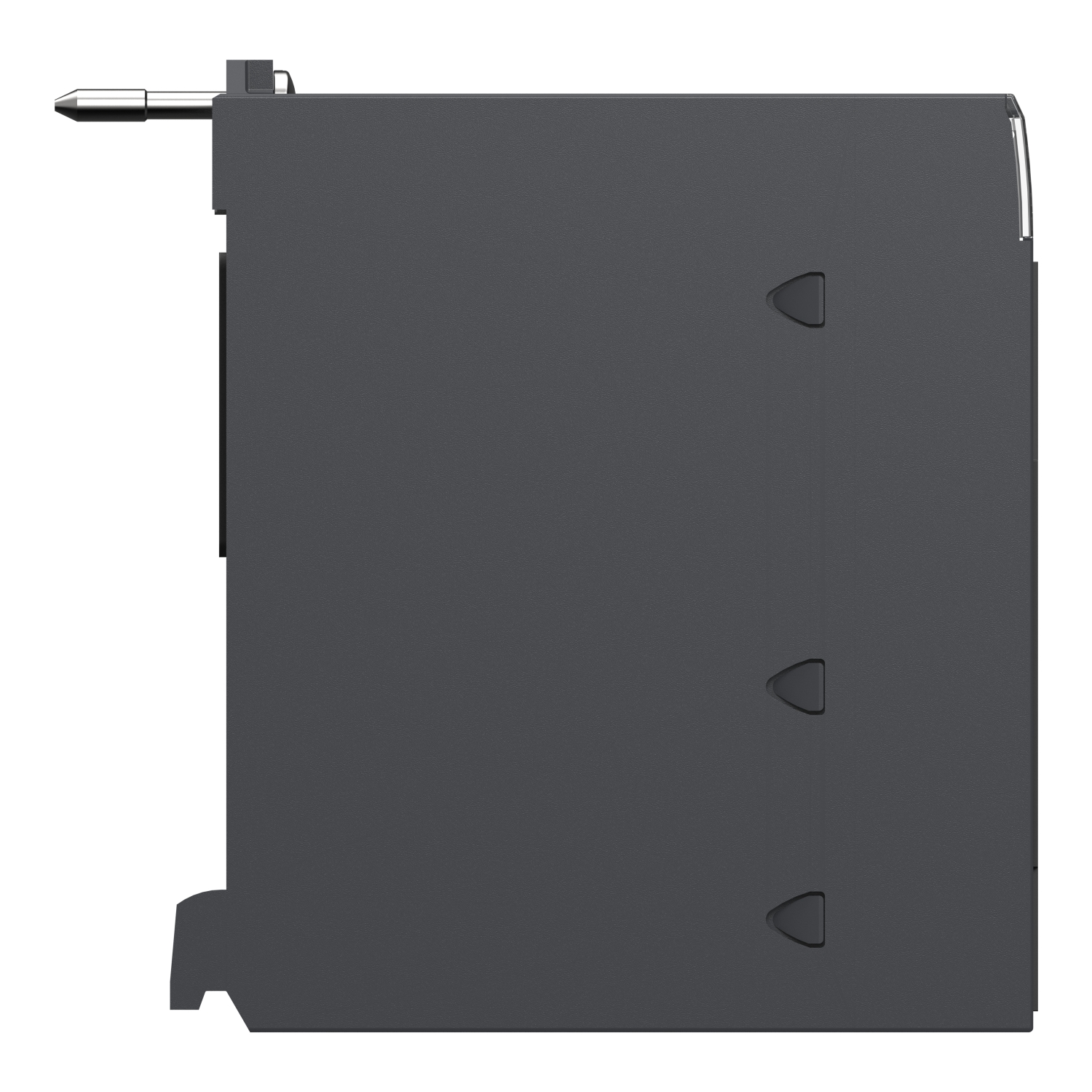

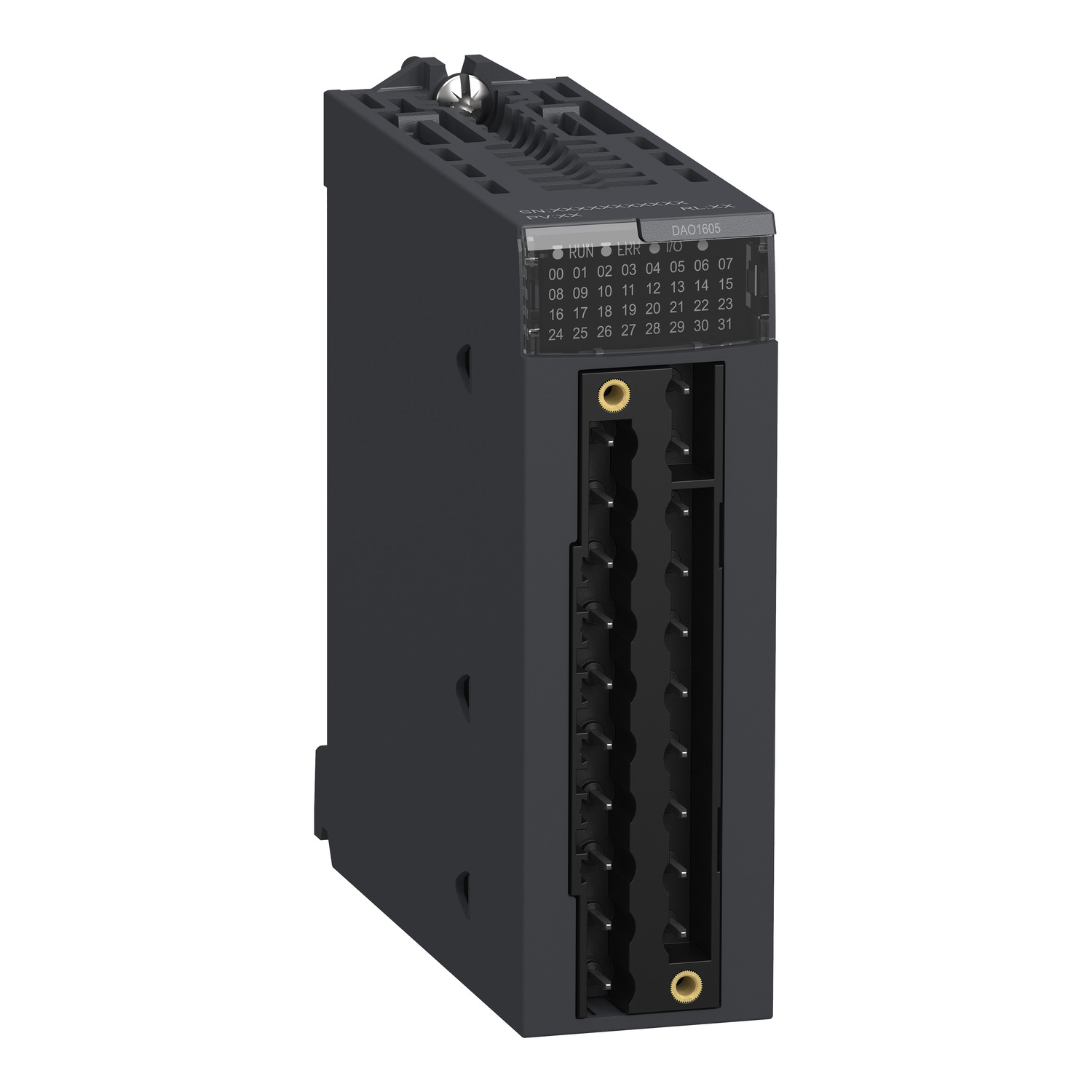

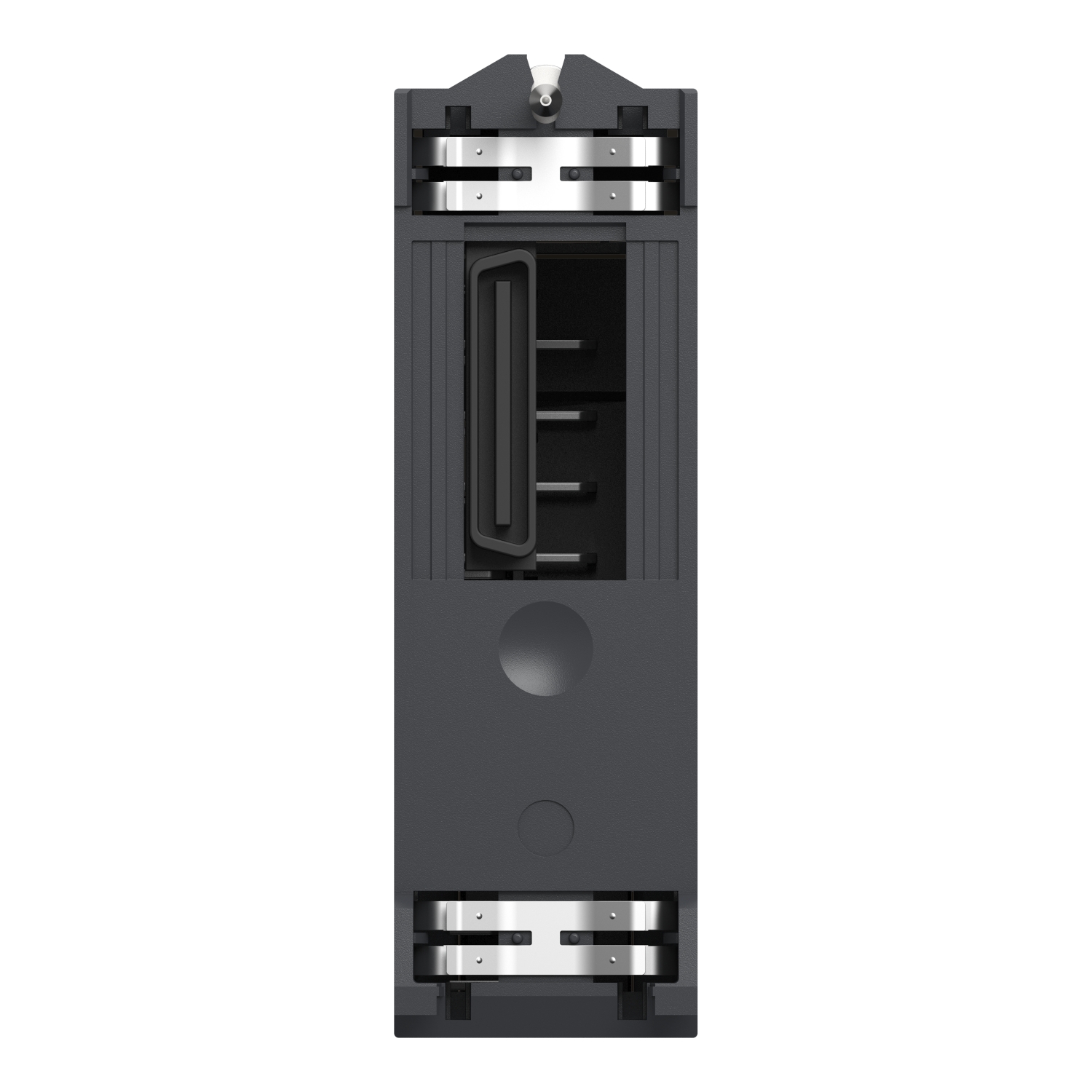

BMXDAO1605 discrete output module, Modicon X80, 16 triac outputs, 100 to 240V AC

MXN $13,052.00 - (IVA Incluido) + Envío

34 disponibles

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete output module has 16 triac outputs. It is a discrete output module with an output voltage of 100V to 240V AC, 85 to 288V AC, a typical current consumption 100mA at 3.3V DC and 0.6A current per channel. This product is robust, high quality and based on the latest innovative technology. Protection type is 1 external fuse fast blow. It is an IP20 rated product. It is suitable for medium to large process applications. This product is certified by EAC, Merchant Navy, CSA, RCM, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Comprar Ahora

Categoría: PLC's

Etiqueta: PLC's

SKU: BMXDAO1605

discrete output module, Modicon X80, 16 triac outputs, 100 to 240V AC

BMXDAO1605

Main
Range of Product	Modicon X80
Product or Component Type	Discrete output module
Discrete output number	16
Discrete output type	Triac
Discrete output voltage	100…240 V AC
Discrete output current	0.6 A

Complementary
Maximum leakage current	1.5 mA at state 0 120 V AC 60 Hz 3 mA at state 0 240 V AC 60 Hz
Maximum voltage drop	<1.5 V at state 1
Insulation resistance	> 10 MOhm 500 V DC
Response time on output	<= 1.011 ms resistive activation <= 1.011 ms resistive deactivation
Typical current consumption	79 mA 3.3 V DC
MTBF reliability	1800000 H
Protection type	1 external fuse fast blow
Inrush current	20 A
Maximum current per output common	2.4 A
Output current limits	0.025…4.8 A
Status LED	1 LED (Green) module operating (RUN) 1 LED per channel (Green) channel diagnostic 1 LED (Red) module error (ERR) 1 LED (Red) module I/O

Environment
IP Degree of Protection	IP20
Directives	2014/35/EU – low voltage directive 2014/30/EU – electromagnetic compatibility
Dielectric strength	2830 V AC 50/60 Hz 1 min
Vibration resistance	3 gn
Shock resistance	30 gn
Ambient Air Temperature for Storage	-40…185 °F (-40…85 °C)
Ambient Air Temperature for Operation	32…140 °F (0…60 °C)
Relative humidity	5…95 % 131 °F (55 °C) without condensation
Operating altitude	0…6561.68 ft (0…2000 m) 2000…5000 m with derating factor

Ordering and shipping details
Category	US1PC3418160
Discount Schedule	PC34
GTIN	3595863966954
Returnability	Yes
Country of origin	US

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	2.165 in (5.500 cm)
Package 1 Width	4.606 in (11.700 cm)
Package 1 Length	4.606 in (11.700 cm)
Package 1 Weight	7.160 oz (203.000 g)
Unit Type of Package 2	S02
Number of Units in Package 2	15
Package 2 Height	5.906 in (15.000 cm)
Package 2 Width	11.811 in (30.000 cm)
Package 2 Length	15.748 in (40.000 cm)
Package 2 Weight	7.491 lb(US) (3.398 kg)
