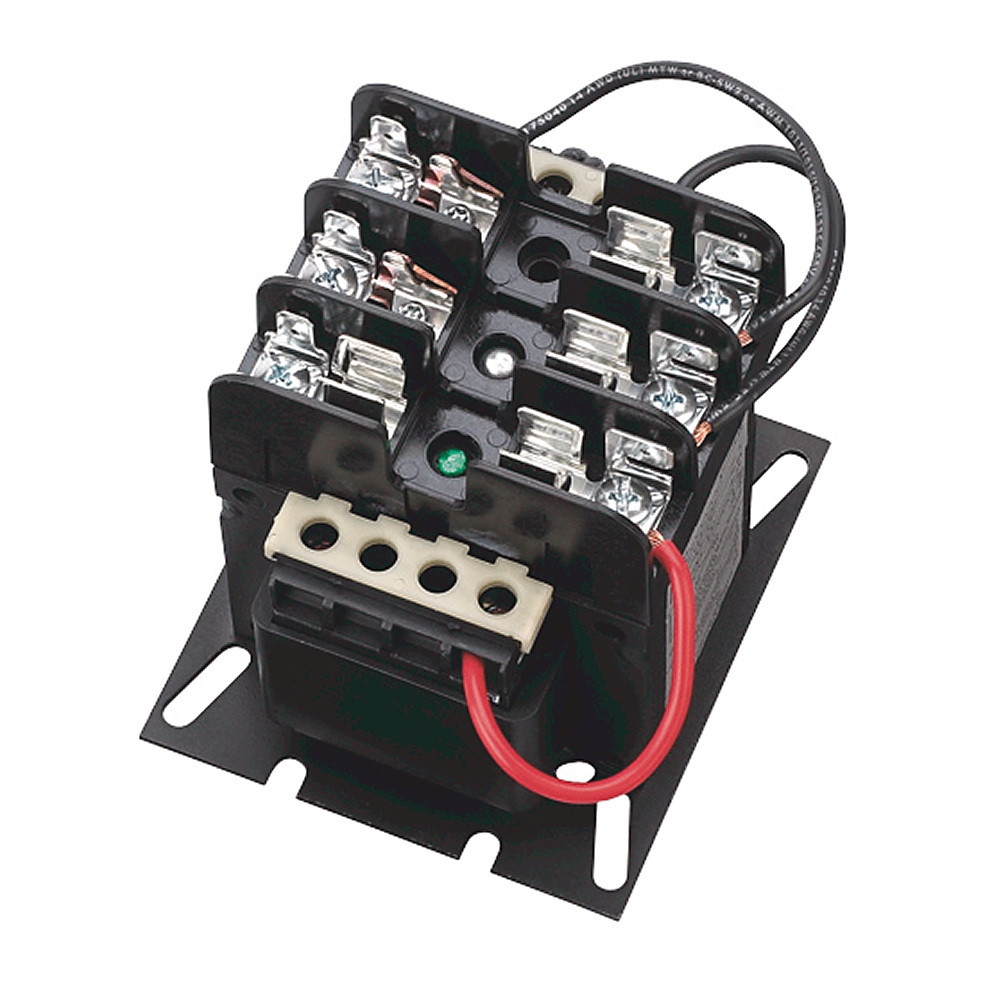

1497-A-M4-3-N, Control Circuit Transformer
MXN $5,258.00 - (IVA Incluido) + Envío
1 disponibles
Control Circuit Transformer
Marca:Rockwell Automation
| Continuous VA (XFrmr Rating) | 63 VA |
|---|---|
| PrimaryCode | Pri380/400/415-Sec115X230 50Hz |
| Rated apparent power | 63 VA |
|---|---|
| Secondary voltage | 115, 230V-50 Hz |
| Fuse block option | 2 primary-1 sary |
| Secondary fuse size | 4A @ 24V (per NEC) |
| Primary voltage | 380/400/415V-50 Hz |
| Factory installed options | No cover/no sary fuse |
| Inrush VA | 347VA @ 85% of rated sary voltage, 40% power factor |
| Primary fuse size | 0.75A @ 240V (when only primary protection is used per NEC) |
| Short-circuit-proof | False |
| Bulk package | Single pack |
|---|---|
| Depth | Without fusing: 3-7/8 in (98.00 mm) |
| Width | Without fusing: 3.5 in (88.90 mm) |
| Height | Without fusing: 2-3/8 in (73.91 mm) |
| Shipping weight, approx | Without top mounted fuse block: 4.5 lb (2.04 Kg) |
| Modular version | False |
| Ring core | False |
| Built as energy saving transformer | False |
| Built as safety transformer | False |
| Built as isolating transformer | False |
| Conductor material | Copper |
| Type of insulation material according to IEC 85 | B |
|---|
| Suitable for mounting on PCB | False |
|---|
| Peso | 2.218 kg |
|---|---|
| Dimensiones | 13 × 11.4 × 13.58 cm |
| Marcas | Allen-Bradley |
Marca
Rockwell Automation
| Type | Resource | Publication |
|---|---|---|
| General | Product Cutsheet | -- |
| Technical Data | 1497-td001_-en-p | 1497-TD001 |
|
Product Cutsheet
General
-- |
|
1497-td001_-en-p
Technical Data
1497-TD001 |
