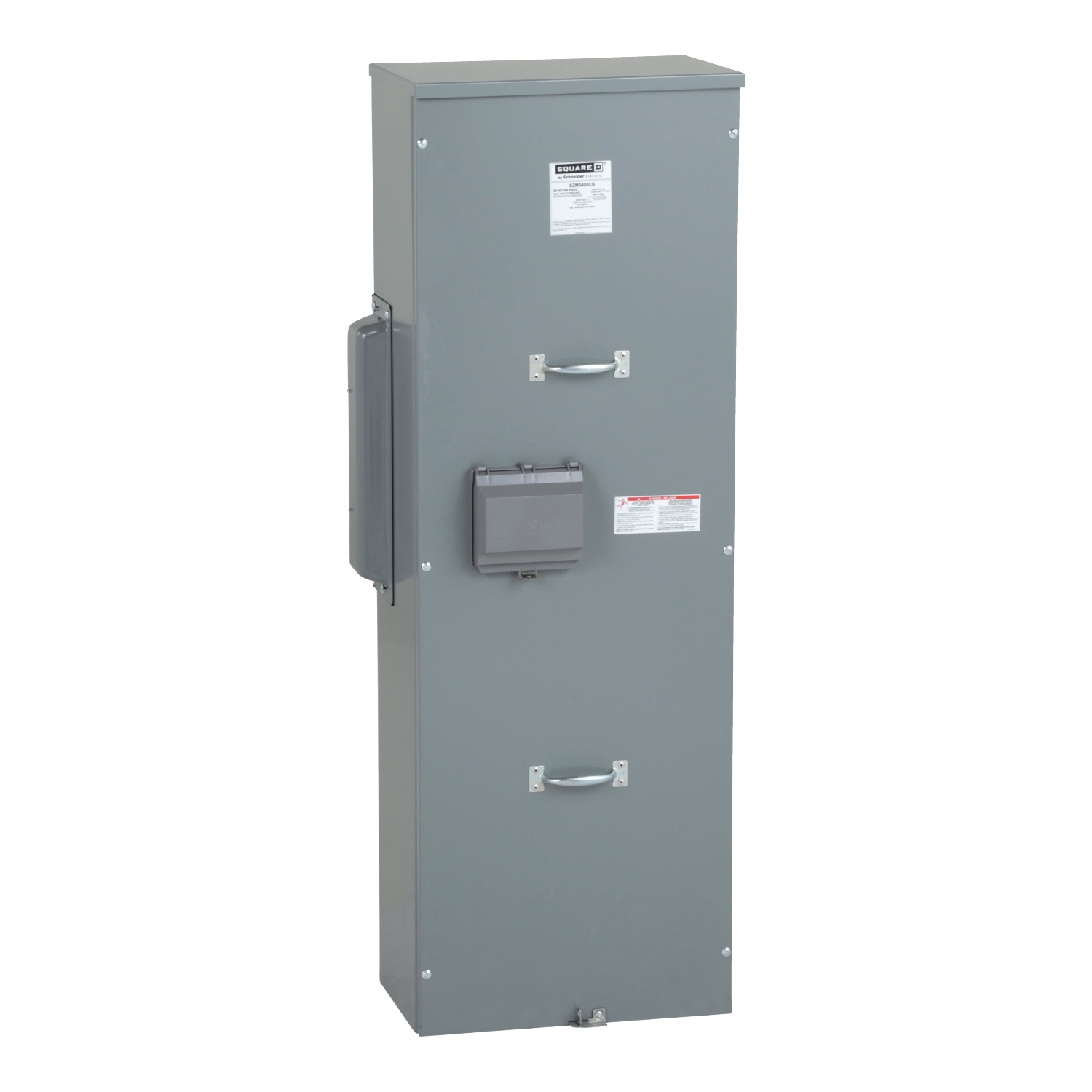

Name: EZM3400CB, Main circuit breaker unit, EZ Meter-Pak, 400A, 240VAC max, 3ph/4W, 400A bus, 65kA, OH/UG, Type 3R
SKU: EZM3400CB
Availability: InStock

EZM3400CB, Main circuit breaker unit, EZ Meter-Pak, 400A, 240VAC max, 3ph/4W, 400A bus, 65kA, OH/UG, Type 3R

MXN $49,559.00 - (IVA Incluido) + Envío

2 disponibles

Square D EZ Meter-Pak meter centers provide reliable, versatile, and compact multi metering equipment for multi unit residential and commercial construction. The main devices are available as main circuit breakers, main fusible switches, or main lug terminal boxes. The compact footprint makes them easier to handle and install. Visi-Tite nuts eliminate the need for time-consuming torque readings when connecting devices. External mounting channels permit immediate installation with no disassembly or adjustment required. EZM main devices are suitable for use as service equipment with required grounding and bonding. This main circuit breaker provides 3 phases in, 3 phases out for a 4 wire configuration. It accepts 208Y/120VAC and 240/120VAC delta incoming service from OH or UG feeds. The unit is rated for 400A with the busbar rated for 400A. It has a short circuit current rating of 65kA. The enclosure is painted steel Type 3R. This EZ Meter-Pak meter center complies with UL standards.

Comprar Ahora

Main
Range of Product	EZ meter-pak
Product or Component Type	Meter center main unit
Main type	Main Circuit Breaker
Included Items	Circuit-breaker 1) 3P 400 A 65 kA Closing plate

Complementary
Main rated current	400 A
Bus rated current	400 A
Enclosure Material	Painted steel
[Ue] rated operational voltage	208Y/120 V AC 240/120 V delta AC
Device mounting	Surface
Number of Phases	3 phase in 3 phase out
Service feed location	OH UG
Electrical connection	Lugs 1 AWG 6…300 kcmil aluminium/copper) ground Lugs 1 AWG 1…600 kcmil aluminium/copper) line Lugs 2 AWG 1…250 kcmil aluminium/copper) line Lugs 1 AWG 1…600 kcmil aluminium/copper) neutral Lugs 2 AWG 1…250 kcmil aluminium/copper) neutral
Wiring configuration	4-wire
Height	53.97 in (1370.84 mm)
Width	18.66 in (473.96 mm)
Depth	11.50 in (292.10 mm)

Environment
Product Certifications	UL Listed
Enclosure Rating	NEMA 3R

Ordering and shipping details
Category	US10DE400020
Discount Schedule	0DE4
GTIN	785901304951
Returnability	Yes
Country of origin	US

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	14.21 in (36.1 cm)
Package 1 Width	22.80 in (57.9 cm)
Package 1 Length	54.61 in (138.7 cm)
Package 1 Weight	98.000 lb(US) (44.452 kg)
