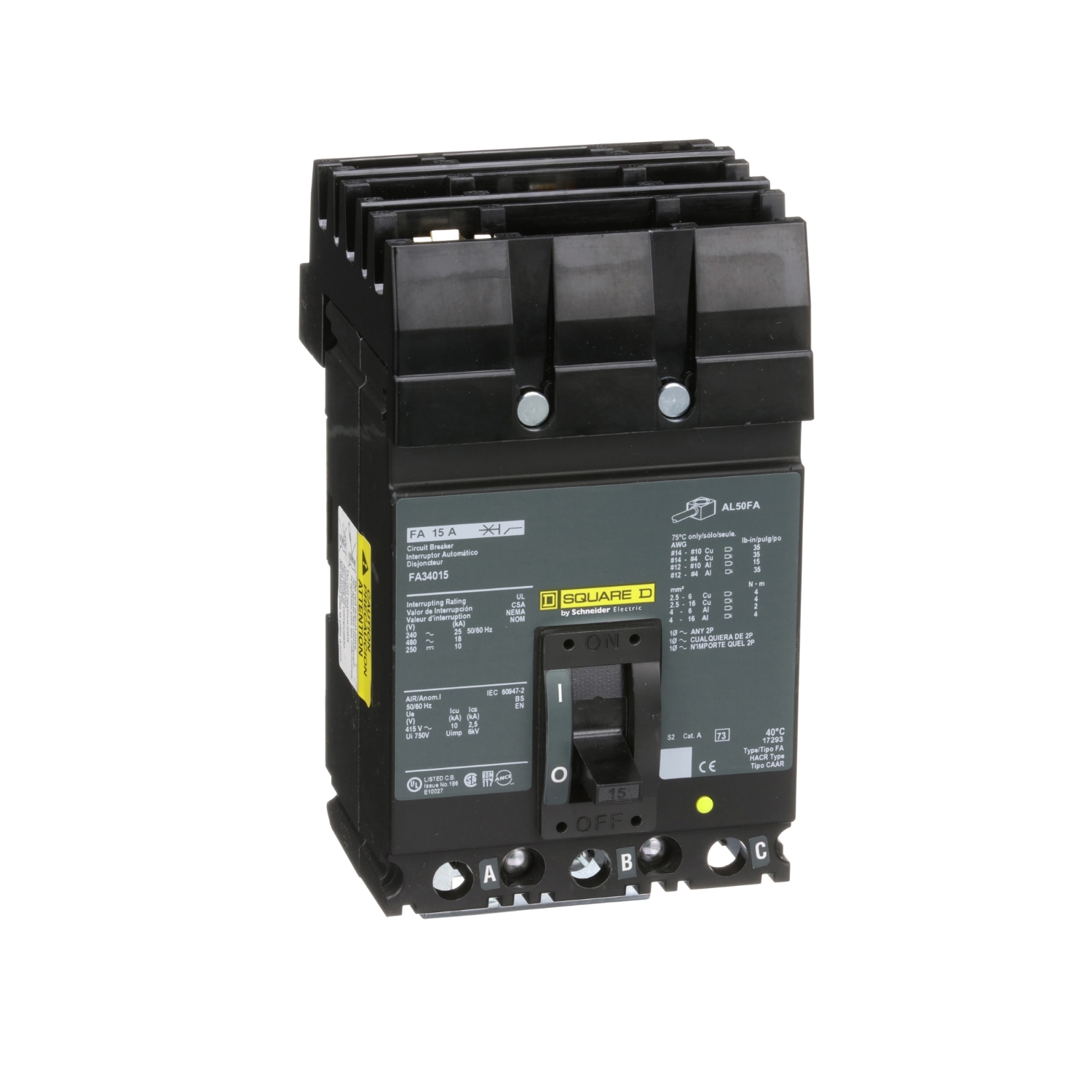

Circuit breaker, FA, 480V 15A, 3 pole
FA34015
| Product or Component Type | Circuit breaker |
|---|---|
| Trip Unit Technology | Thermal-magnetic |
| Line Rated Current | 15 A |
|---|---|
| Number of Poles | 3P |
| Breaking capacity code | A |
| Mounting Mode | I-Line |
| Magnetic Hold Current | 275 A |
| Magnetic Tripping Current | 600 A |
| Electrical connection | Lugs, load I-Line connection, line |
| Terminal identifier | AL50FA |
| Phase connection | ABC |
| Height | 6.4 in (162.6 mm) |
| Width | 4.5 in (114.3 mm) |
| Depth | 4.13 in (104.90 mm) |
| Circuit breaker application | HACR rated |
| Certifications | UL Listed CSA |
|---|
| Category | US10DE201005 |
|---|---|
| Discount Schedule | 0DE2 |
| GTIN | 00785901422501 |
| Returnability | No |
| Country of origin | US |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Warranty | 18 months |
|---|
