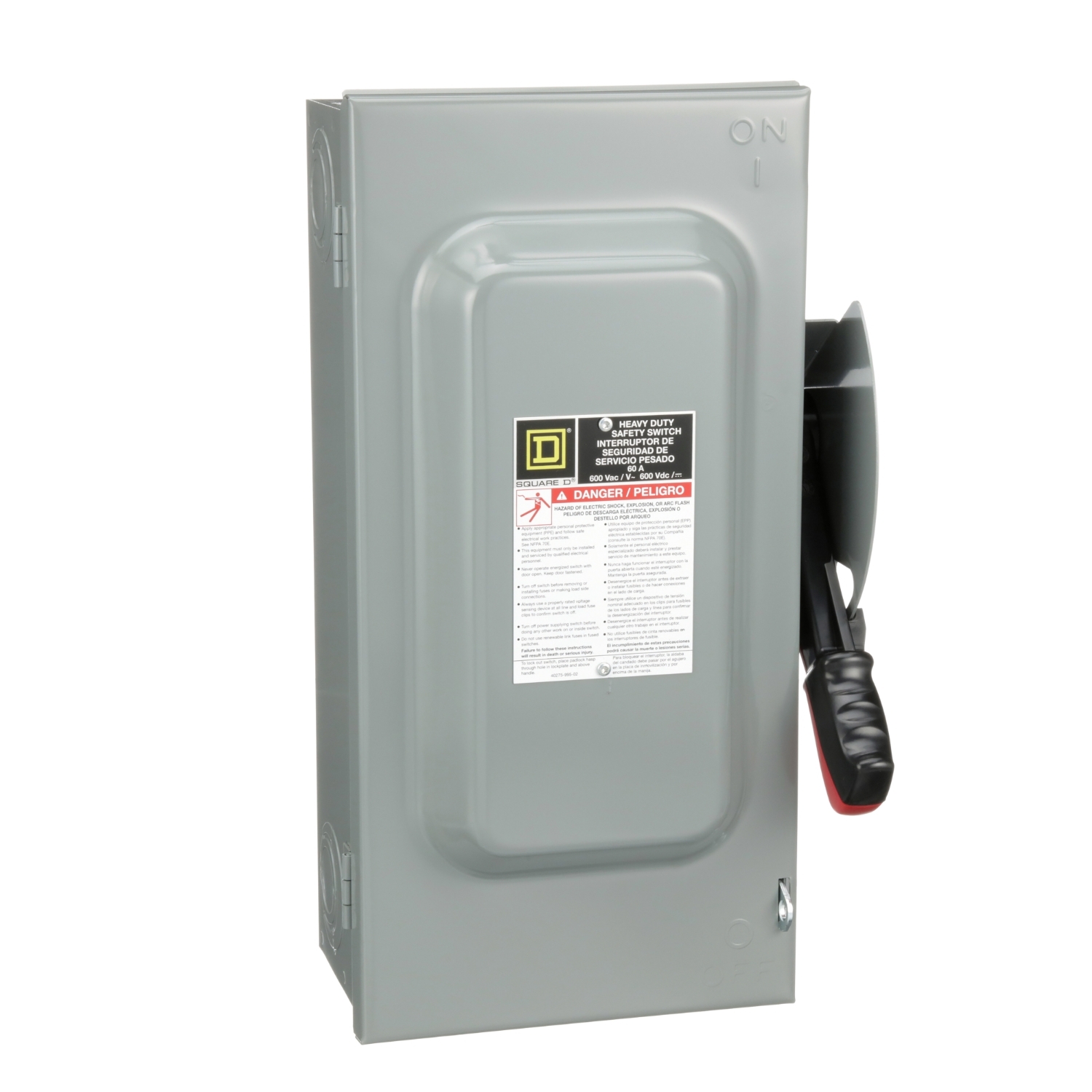

| Product | Single Throw Safety Switch |
|---|---|
| Duty Rating | Heavy duty |
| Device Application | Heavy application |
| Disconnect Type | Fusible disconnect |
| Factory Installed Neutral | None |
| Number of Poles | 3 |
| Current Rating | 60 A |
| Voltage Rating | 600 V AC/DC |
| Enclosure Rating | NEMA 1 steel |
| Motor power hp | 15 hp at 480 V AC 50-60 Hz for 3 phase motors 30 hp at 480 V AC 50-60 Hz for 3 phase motors 15 hp at 600 V AC 50-60 Hz for 3 phase motors 50 hp at 600 V AC 50-60 Hz for 3 phase motors 30 hp at 600 V DC |
| Short-circuit current | 10 kA for H or K 200 kA for R or J |
|---|---|
| Fuse type | H or K R or J |
| Mounting Type | Surface |
| Electrical Connection | Lugs |
| Wiring configuration | 3-wire |
| Wire Size | AWG 14…AWG 3 copper AWG 12…AWG 3 aluminium |
| Tightening torque | 50 lbf.in (5.6 N.m) (AWG 3) 45 lbf.in (5.08 N.m) (AWG 6…AWG 4) 40 lbf.in (4.5 N.m) 0.013 in² (8.367 mm²) (AWG 8) 50 lbf.in (5.6 N.m) 0.003…0.008 in² (2.06…5.261 mm²) (AWG 14…AWG 10) |
| Depth | 6.38 in (162.05 mm) |
| Width | 10.5 in (266.7 mm) |
| Height | 17.5 in (444.5 mm) |
| Net Weight | 15.4 lb(US) (7 kg) |
| Certifications | UL listed file E2875 |
|---|
| Category | US10DE100008 |
|---|---|
| Discount Schedule | 0DE1 |
| GTIN | 785901482147 |
| Returnability | No |
| Country of origin | US |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.30 in (18.542 cm) |
| Package 1 Width | 10.90 in (27.686 cm) |
| Package 1 Length | 20.00 in (50.8 cm) |
| Package 1 Weight | 15.099 lb(US) (6.849 kg) |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 40 |
| Package 2 Height | 41.00 in (104.14 cm) |
| Package 2 Width | 40.00 in (101.6 cm) |
| Package 2 Length | 48.00 in (121.92 cm) |
| Package 2 Weight | 636.001 lb(US) (288.485 kg) |
| Warranty | 18 months |
|---|
