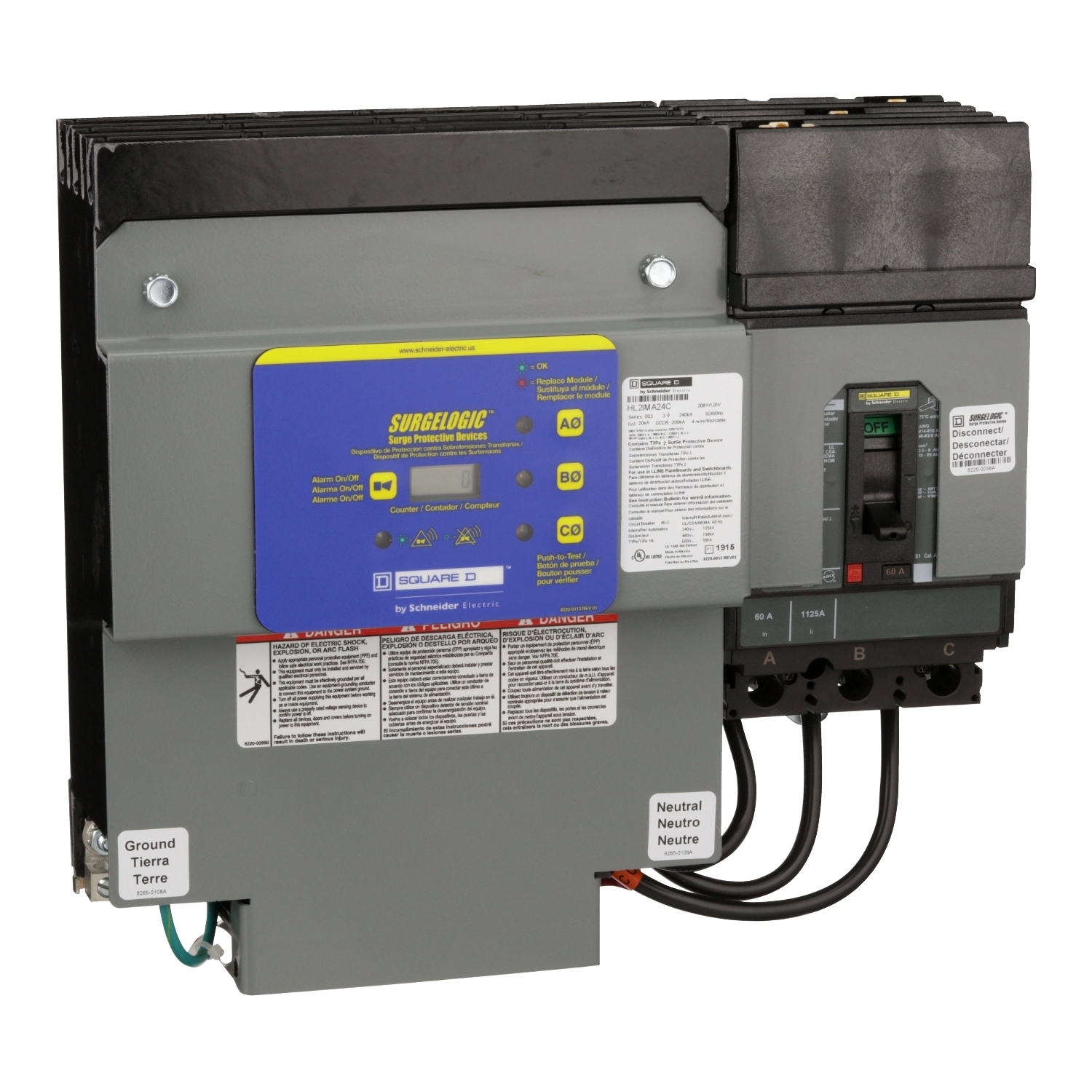

Name: HL2IMA24C, Surge protection device, Surgelogic, HL, 240kA, 208Y/120 VAC, 3 phase, 4 wire, SPD type 2
SKU: HL2IMA24C
Availability: InStock

HL2IMA24C, Surge protection device, Surgelogic, HL, 240kA, 208Y/120 VAC, 3 phase, 4 wire, SPD type 2

MXN $55,586.00 - (IVA Incluido) + Envío

2 disponibles

Surgelogic™ EMA and EBA series SPDs offer a full range of externally mounted surge suppression solutions. These units are designed to provide surge suppression from service entrance panels to point-of-use equipment. US and Canadian UL® Listed to the UL 1449 standard. Complies with requirements of NEC® Article 285 and CSA 22.2 No. 8- M1986 as appropriate.

Comprar Ahora

Main
Product	Surge protection device
Range	Surgelogic
Device Short Name	IMA
Type	HL

Complementary
Voltage Rating	208Y/120 V AC
MCOV	150 V
SCCR	200 kA
Surge Current	240 kA
Rated Current	60 A
Breaking Capacity	50 kA
Number of Phases	3 phase
Max Number of Poles	3
Wiring Configuration	4-wire
Connection	I-Line line Lugs ground AWG 6 copper 35.4 lbf.in (4 N.m) Lugs neutral AWG 6 copper 35.4 lbf.in (4 N.m)
Trip Unit Technology	Thermal-magnetic
Local Signalling	Status LED green per phase normal operation Status LED red per phase fault
Provided Equipment	Alarm enable/disable switch Surge counter Circuit-breaker
Cable length	19.02 in (483 mm)
Mounting Support	Panel mounting
Height	12.2 in (308.9 mm)
Width	13.5 in (341.9 mm)
Depth	5.6 in (142.1 mm)

Environment
Enclosure Rating	NEMA 2
Standards	UL 1449:Ed. 3 UL 1283:ed. 5 CSA C22.2 No 8:1986 UL 96A:ed. 12 UL 489:ed. 11 CSA C22.2 No 5-09

Ordering and shipping details
Category	US1DE1B08460
Discount Schedule	DE1B
GTIN	785901851431
Returnability	Yes
Country of origin	MX

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	9.00 in (22.86 cm)
Package 1 Width	16.00 in (40.64 cm)
Package 1 Length	17.50 in (44.45 cm)
Package 1 Weight	22.187 lb(US) (10.064 kg)
