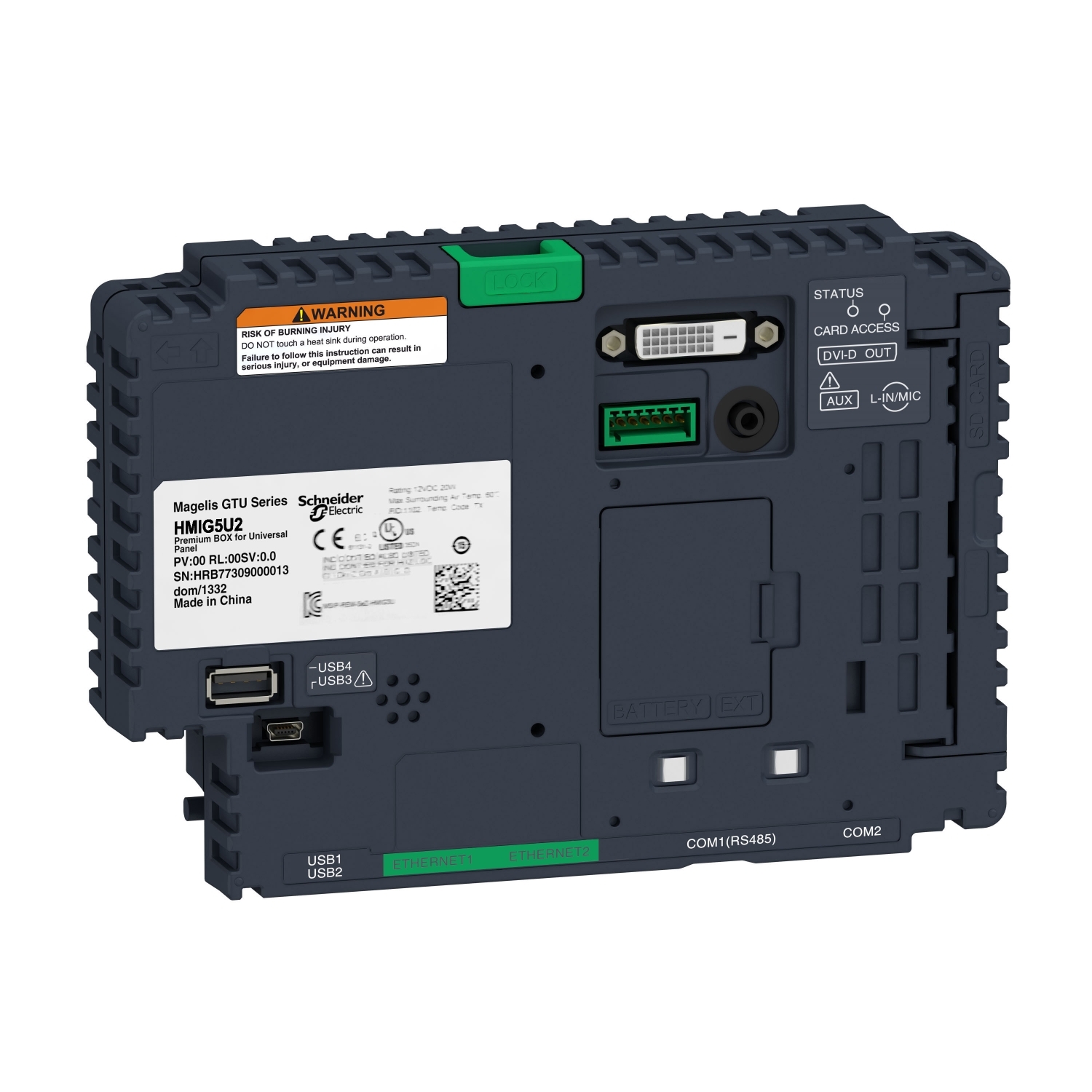

HMIG5U2, base unit, Harmony GTU, open box, 32GB CFast card

USD $6,537.71 - (IVA Incluido) + Envío

16 disponibles

This product is part of the Harmony GTU range, an offer of High performance IoT-ready modular HMI panels from 7 to 19inch (Width) screen. The open box features Intel X86 1.33GHz processor and 32GB CFast card data storage, suits for universal panel. It is designed with backup memory of NVRAM 512kB and internal memory of RAM 2GB. This open box supports Windows Embedded 7 operating system. It is equipped with 10BASE-T/100BASE-TX/1000BASE-T Ethernet port. Communication port protocols are Modbus, Modbus TCP/IP and Uni-Telway. Its dimensions are 188mm (width) x 45mm (depth) x 131mm (height) and weighs 0.9kg. This product is certified by ATEX, CE, CULus, IEC, CUL, GL, LR, BV, RCM and EAC. It meets CSA C22.2 No 142, ANSI/ISA 12-12-01, UL 508, Class I division 2 CSA C22.2 No 213 and IEC 61132-2 standards. Harmony GTU (formerly known as Magelis GTU) are universal panels that include smartphone-like interface and Wireless technology. They offer unmatched comfort of use with no compromise on performance and openness.

Comprar Ahora

Categoría: HMI

Etiqueta: HMI

SKU: HMIG5U2

base unit, Harmony GTU, open box, 32GB CFast card

HMIG5U2

Main
Range of Product	Harmony GTU
Product or Component Type	Base unit
Device short name	Open Box
Range Compatibility	Harmony GTU
[Us] rated supply voltage	12…24 V DC power supply

Complementary
Integrated connection type	Ethernet TCP/IP 2 RJ45 COM1 serial link RJ45 RS485 110…115200 bit/s COM2 serial link SUB-D 9 RS232C/RS422/RS485 110…115200 bit/s Auxiliary port terminal block Expansion unit fieldbus card USB 2.0 port mini B USB DVI-D video port DVI-D Microphone mini-jack USB 2.0 port 3 USB type A
Communication port protocol	Modbus Modbus TCP/IP Uni-Telway
Operating system	Windows Embedded 7
Software package	Internet Explorer Vijeo Citect web client Vijeo Designer run time .NET framework 4.0 Adobe PDF reader Multimedia player Office reader VNC client/server
Processor name	Intel X86 1.33 GHz
Data storage equipment	32 GB CFast card
Port Ethernet	10BASE-T/100BASE-TX/1000BASE-T
Memory description	512 KB NVRAM backup memory 2 GB RAM internal
Type of cooling	Natural convection
Width	7.4 in (188 mm)
Height	5.2 in (131 mm)
Depth	1.8 in (45 mm)
Net Weight	2.0 lb(US) (0.9 kg)

Environment
Standards	CSA C22.2 No 142 ANSI/ISA 12-12-01 UL 508 Class I division 2 CSA C22.2 No 213 IEC 61132-2
Product certifications	CE CULus ATEX IEC-Ex RCM GL KC CUL EAC ABS BV CCS DNV LR RINA UKCA UKEX
Ambient air temperature for operation	32.0000000000…140.0000000000 °F (0…60 °C)
Ambient air temperature for storage	-4.0000000000…140.0000000000 °F (-20…60 °C)
Pollution degree	2 IEC 61131-2 ed.3
Relative Humidity	10…90 % non-condensing
Operating altitude	2000
Vibration resistance	3.5 mm constant amplitude 5…9 Hz) IEC 61131-2 9.8 m/s² 9…150 Hz) IEC 61131-2
Electromagnetic compatibility	Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2

Ordering and shipping details
Category	US10MC222567
Discount Schedule	0MC2
GTIN	3606481213785
Returnability	Yes
Country of origin	US

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	5.2 in (13.1 cm)
Package 1 Width	8.3 in (21.0 cm)
Package 1 Length	10.2 in (26.0 cm)
Package 1 Weight	2.782 lb(US) (1.262 kg)
Unit Type of Package 2	S04
Number of Units in Package 2	4
Package 2 Height	11.8 in (30.0 cm)
Package 2 Width	15.7 in (40.0 cm)
Package 2 Length	23.6 in (60.0 cm)
Package 2 Weight	12.924 lb(US) (5.862 kg)
Number of Units in Package 3	48
Package 3 Height	31.5 in (80.0 cm)
Package 3 Width	47.2 in (120.0 cm)
Package 3 Length	41.3 in (105.0 cm)
Package 3 Weight	174.924 lb(US) (79.344 kg)
