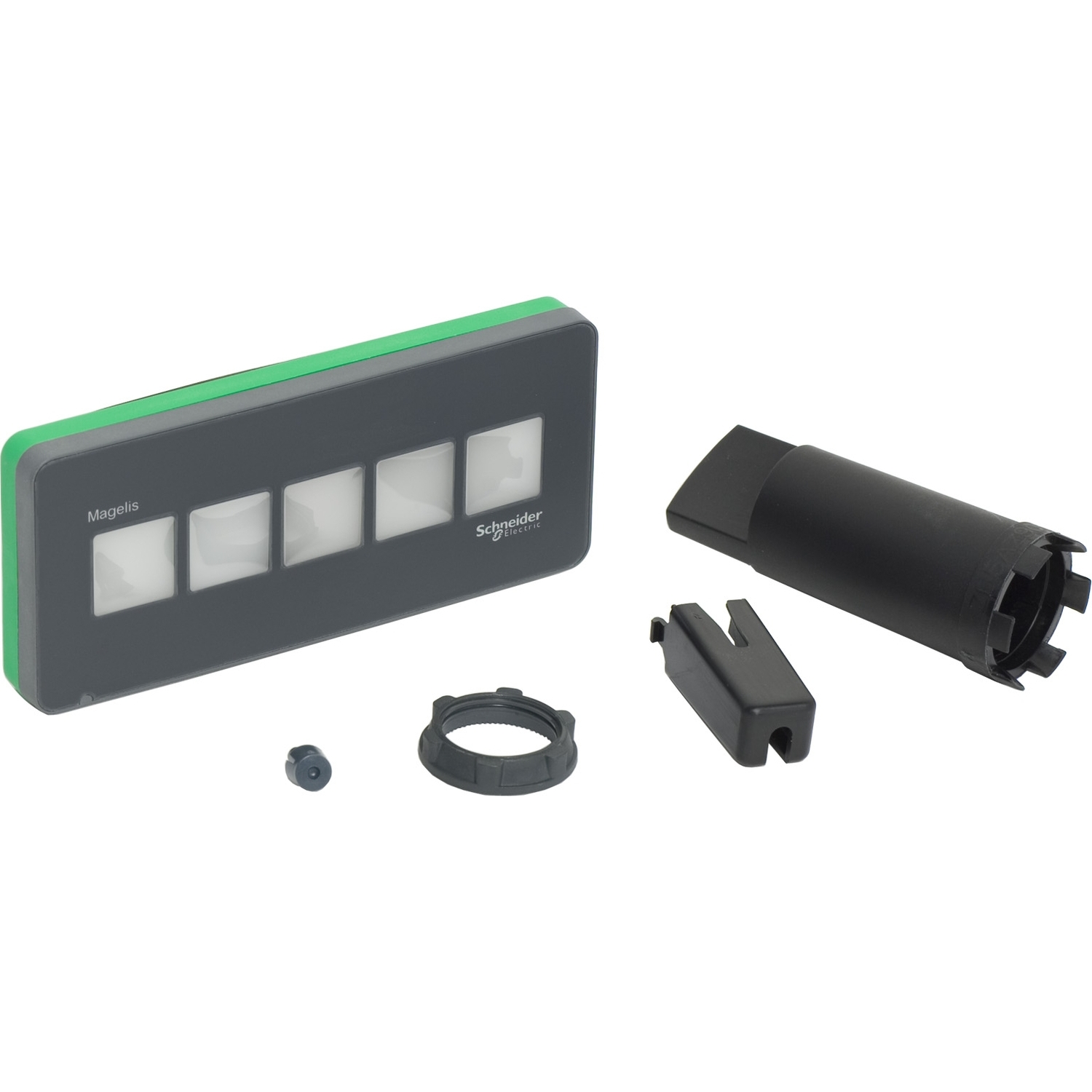

Illuminated Switch-5 Function keys with multi-color LEDs backlit
HMIZRA1
| Range of Product | Harmony HMIZ |
|---|---|
| Product or Component Type | Illuminated USB switch |
| Product compatibility | XBTGC – controller panel XBTGT2… – advanced touch panel HMISTO – touch panel HMISCU – touch panel XBTGT6… – advanced touch panel HMIGTW – advanced touch panel XBTGK – graphic display XBTGT4… – advanced touch panel XBTGT5… – advanced touch panel XBTGT7… – advanced touch panel HMISTU – touch panel HMIGTO – advanced touch panel HMIPSP – S-Panel PC HMIPSO – S-Panel PC HMIBMU – Modular Box PC HMIBMP – Modular Box PC HMIBMO – Modular Box PC HMIBMI – Modular Box PC |
| Device Application | Food and beverage Industrial machines |
| Provided equipment | 1 x User Manual 1 x USB type B cable clamp 1 x fixing nut 1 x tightening wrench 1 x anti-rotation tee 1 x gasket 1 x insert label 1 x USB cable type A/B 3.3 ft (1 m) |
| Software designation | Vijeo Designer >= V6.1 SP2 |
|---|---|
| Connector Type | USB type B |
| Control type | 5 push-buttons multi-colour backlit LED |
| Colour of cover | Front dark grey |
| [Us] rated supply voltage | 5 V DC USB 2.0 |
| Supply voltage limits | 4.75…5.25 V DC |
| power consumption in W | 2 W |
| Shock resistance | 147 m/s²3 chocks in each direction X, Y and Z IEC 61131-2 |
| Electromagnetic compatibility | Electrostatic discharge immunity test – test level: 8 kV (air discharge) conforming to IEC 61000-4-2 Electrostatic discharge immunity test – test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 Electrical fast transient/burst immunity test – test level: 2 kV (power ports) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test – test level: 1 kV (signal ports) conforming to IEC 61000-4-4 |
| mounting location | Flat surface |
| Quantity per Set | 1 piece |
| Height | 2.1 in (54 mm) |
| Width | 4.8 in (122 mm) |
| Depth | 1.1 in (28 mm) |
| Net Weight | 0.24 lb(US) (0.11 kg) |
| Ambient Air Temperature for Storage | -4.0000000000…140.0000000000 °F (-20…60 °C) |
|---|---|
| Relative humidity | 10…90 % 32.0000000000…131.0000000000 °F (0…55 °C) non-condensing |
| Pollution degree | 2 |
| Environmental characteristic | Corrosive gas free |
| Operating altitude | <= 6561.68 ft (2000 m) |
| Vibration resistance | 3.5 mm 5…9 Hz)IEC 61131-2 |
| IP degree of protection | IP65 front panel (in enclosure)) |
| NEMA degree of protection | NEMA 4X indoor installation NEMA 13 enclosed outdoor |
| Standards | CSA C22.2 No 142 UL 508 CSA C22.2 No 213 EN 61000-6-4 ANSI/ISA 12.12.01 EN 61000-6-2 EMC 2004/108/EC |
| Product Certifications | GOST UL/cUL listed C-tick CE |
| Level or class | Class I Division 2 Groups A/B/C/D |
| Category | US10MC222569 |
|---|---|
| Discount Schedule | 0MC2 |
| GTIN | 3595864167152 |
| Returnability | No |
| Country of origin | US |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.0 in (7.5 cm) |
| Package 1 Width | 5.4 in (13.6 cm) |
| Package 1 Length | 7.4 in (18.7 cm) |
| Package 1 Weight | 10.8 oz (307.5 g) |
