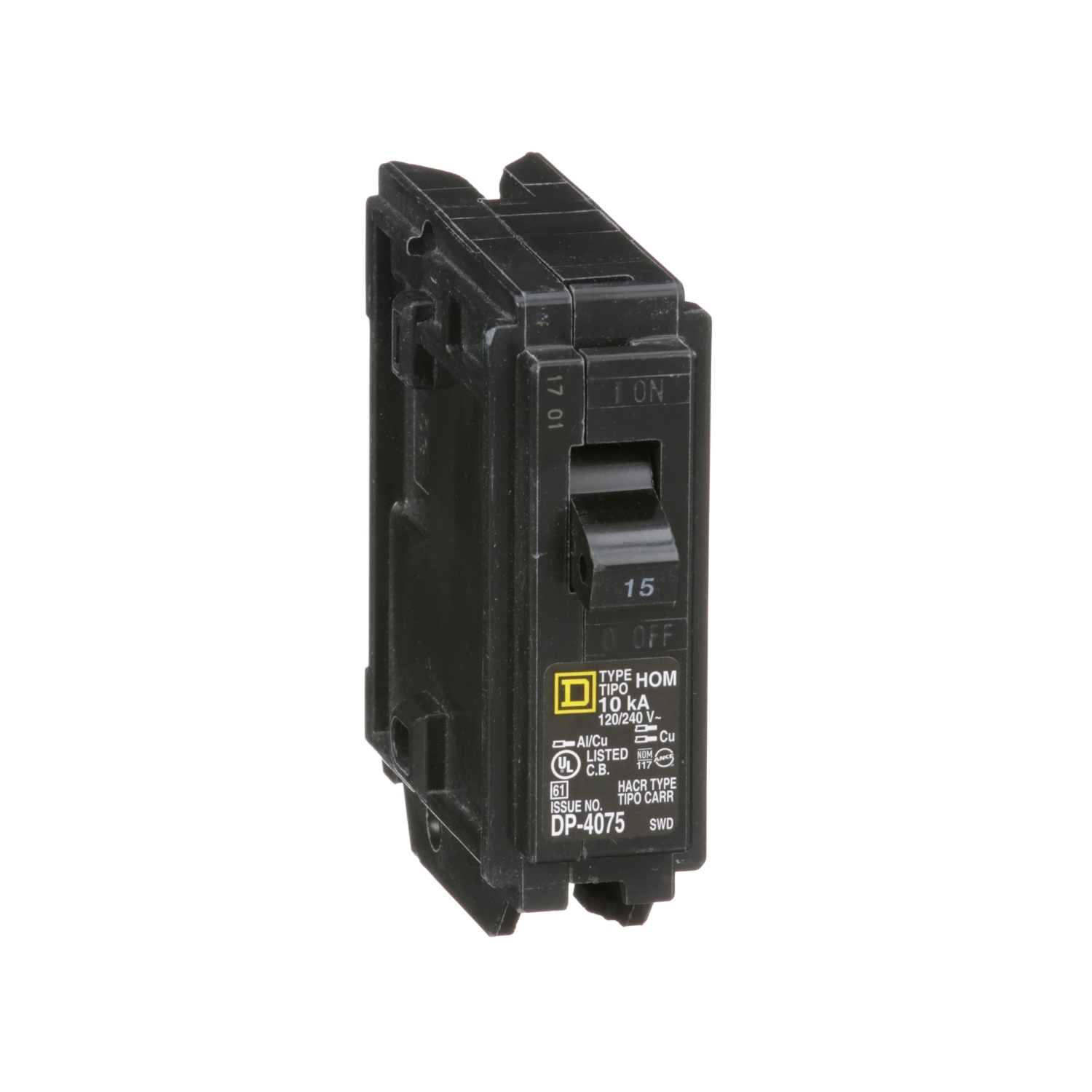

Name: HOM115, Mini circuit breaker, Homeline, 15A, 1 pole, 120/240VAC, 10kA AIR, standard type, plug in, UL
SKU: HOM115
Availability: InStock

HOM115, Mini circuit breaker, Homeline, 15A, 1 pole, 120/240VAC, 10kA AIR, standard type, plug in, UL

MXN $319.00 - (IVA Incluido) + Envío

1 disponibles

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 1 pole circuit breaker with plug in mounting is rated 15A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 1.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.

Comprar Ahora

Main
Product	Miniature circuit-breaker
Range	Homeline
Current Rating	15 A
Certifications	UL Listed
Voltage Rating	120/240 V AC
Mounting Type	Plug-in
Number of Poles	1P
Short Circuit Current Rating	10 kA
Number of Spaces	1
Circuit Breaker Type	Standard
Ratings	HACR and Switching Duty rated
Electrical Connection	Clamp terminal for 2 cables
Wire Size	1 x AWG 14…AWG 8 ( aluminium/copper ) 2 x AWG 14…AWG 10 ( copper )

Complementary
Tightening torque	35.4 lbf.in (4.0 N.m) 0.004…0.009 in² (2.5…6 mm²) (AWG 14…AWG 8)
Height	3.13 in (79.50 mm)
Width	1 in (25.4 mm)
Depth	2.98 in (75.69 mm)

Environment
Ambient Air Temperature for Operation	104 °F (40 °C)

Ordering and shipping details
Category	US1DE3D00046
Discount Schedule	DE3D
GTIN	785901065203
Returnability	Yes

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	1.00 in (2.54 cm)
Package 1 Width	3.00 in (7.62 cm)
Package 1 Length	3.00 in (7.62 cm)
Package 1 Weight	4.656 oz (131.995 g)
Unit Type of Package 2	BB1
Number of Units in Package 2	10
Package 2 Height	3.60 in (9.144 cm)
Package 2 Width	3.00 in (7.62 cm)
Package 2 Length	11.10 in (28.194 cm)
Package 2 Weight	2.840 lb(US) (1.288 kg)
Unit Type of Package 3	CAR
Number of Units in Package 3	100
Package 3 Height	11.10 in (28.194 cm)
Package 3 Width	7.10 in (18.034 cm)
Package 3 Length	16.70 in (42.418 cm)
Package 3 Weight	29.150 lb(US) (13.222 kg)
