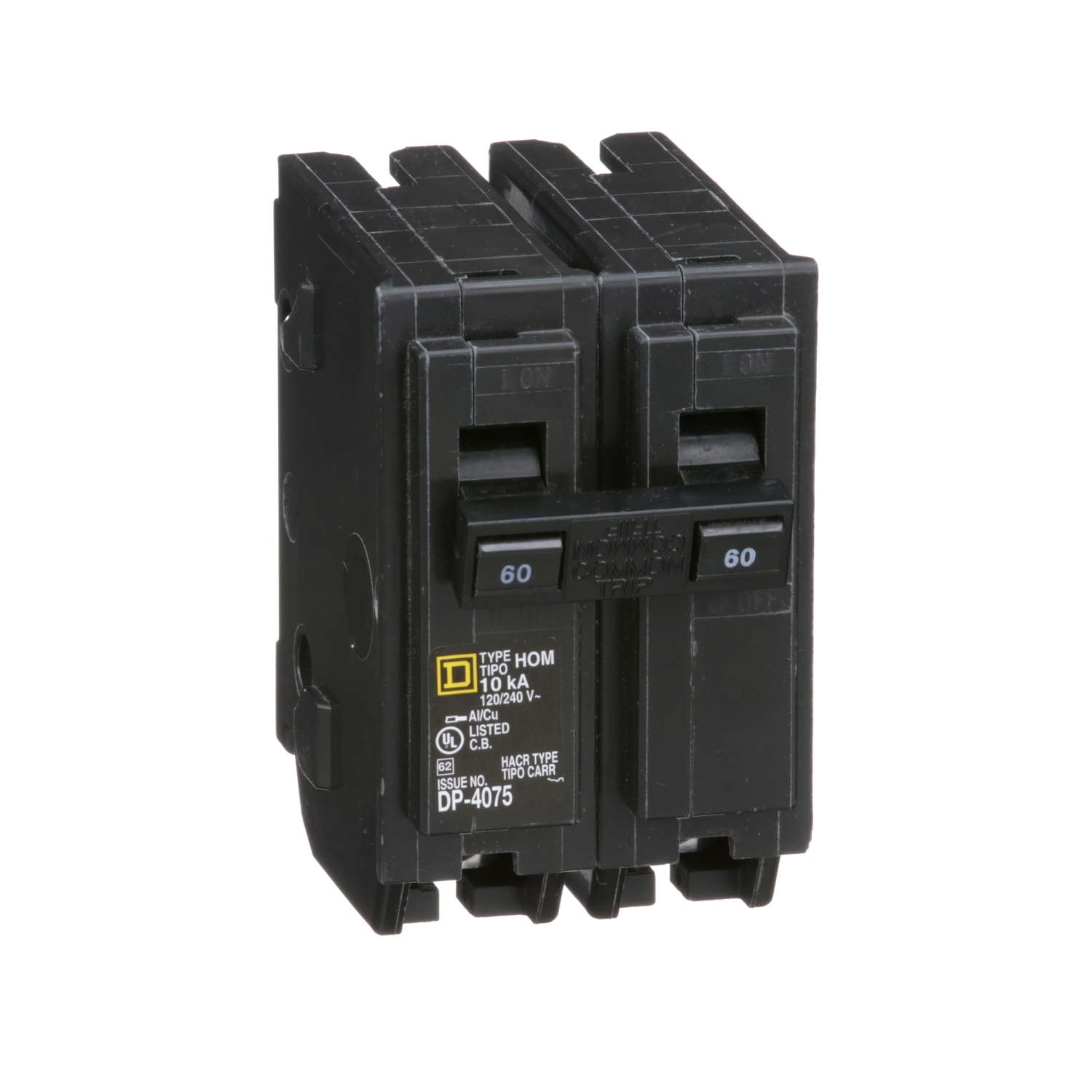

Name: HOM260, Mini circuit breaker, Homeline, 60A, 2 pole, 120/240VAC, 10kA AIR, standard type, plug in, UL
SKU: HOM260
Availability: InStock

HOM260, Mini circuit breaker, Homeline, 60A, 2 pole, 120/240VAC, 10kA AIR, standard type, plug in, UL

USD $26.40 - (IVA Incluido) + Envío

26 disponibles

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 60A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connection is a clamp terminal that will accept 1 wires. The box lugs will accept a wire range of 8 AWG to 2 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 2.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.

Comprar Ahora

Main
Product	Miniature circuit-breaker
Range	Homeline
Current Rating	60 A
Certifications	UL Listed
Voltage Rating	120/240 V AC
Mounting Type	Plug-in
Number of Poles	2P
Short Circuit Current Rating	10 kA
Number of Spaces	2
Circuit Breaker Type	Standard
Ratings	HACR rated
Electrical Connection	Box lugs
Wire Size	1 x AWG 8…AWG 2 ( aluminium/copper )

Complementary
Tightening torque	40.7 lbf.in (4.6 N.m) (AWG 8…AWG 2)
Height	3.13 in (79.50 mm)
Width	2 in (50.8 mm)
Depth	2.98 in (75.69 mm)

Environment
Ambient Air Temperature for Operation	104 °F (40 °C)

Ordering and shipping details
Category	US1DE3D00046
Discount Schedule	DE3D
GTIN	785901065333
Returnability	Yes
Country of origin	MX

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	3.13 in (7.950 cm)
Package 1 Width	2.00 in (5.080 cm)
Package 1 Length	3.00 in (7.620 cm)
Package 1 Weight	11.200 oz (317.514 g)
Unit Type of Package 2	BB1
Number of Units in Package 2	5
Package 2 Height	3.13 in (7.950 cm)
Package 2 Width	3.13 in (7.950 cm)
Package 2 Length	10.13 in (25.730 cm)
Package 2 Weight	3.569 lb(US) (1.619 kg)
Unit Type of Package 3	CAR
Number of Units in Package 3	50
Package 3 Height	10.75 in (27.305 cm)
Package 3 Width	6.70 in (17.018 cm)
Package 3 Length	16.60 in (42.164 cm)
Package 3 Weight	36.969 lb(US) (16.769 kg)
