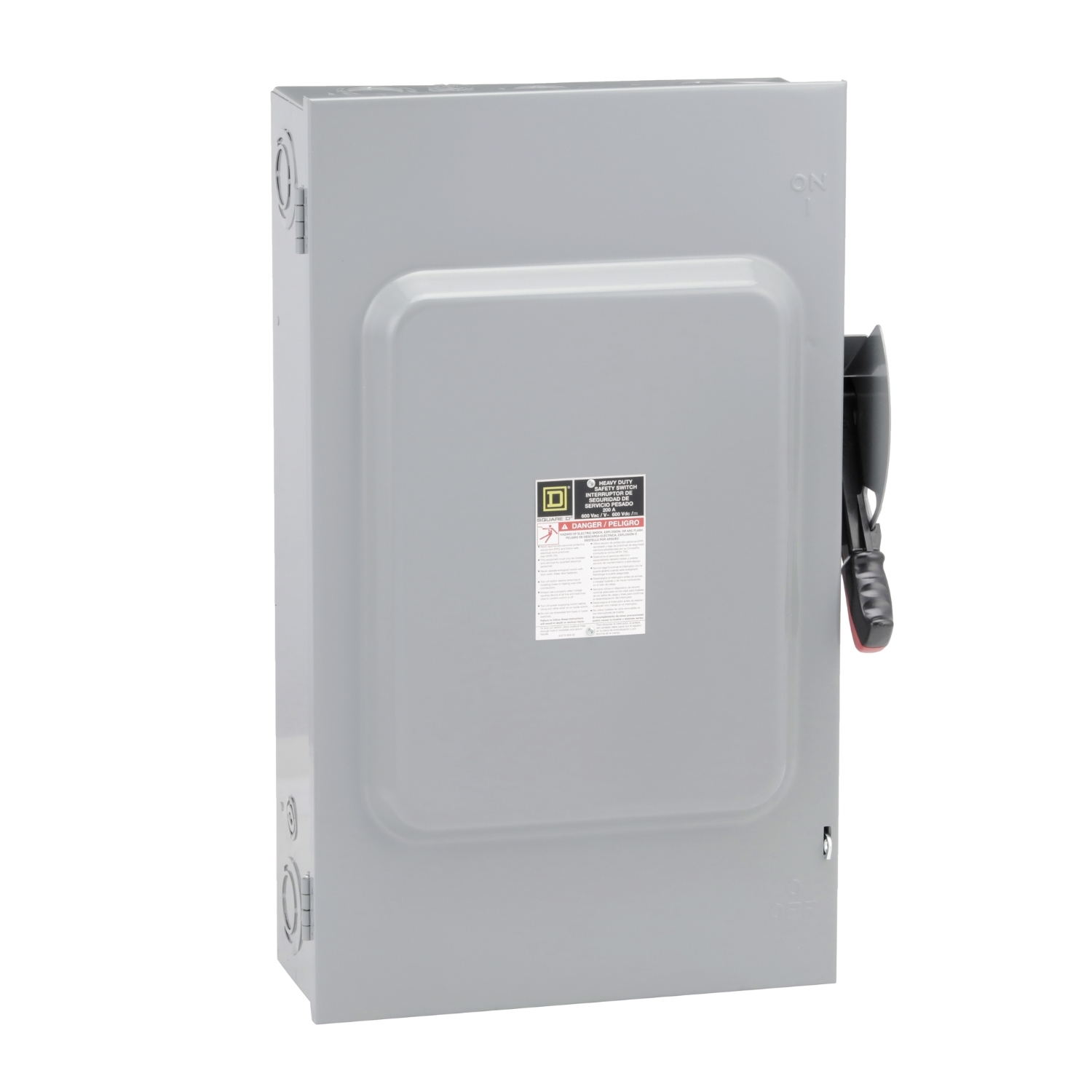

HU364, Safety switch, heavy duty, non fusible, 200A, 3 wire, 3 pole, 150HP, 600V AC/DC, NEMA 1

USD $2,094.33 - (IVA Incluido) + Envío

Sin existencias

The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. This Single Throw Safety Switch has a rated current of 200A and is UL listed with a NEMA 1 rating of protection. This 3-pole switch has operational voltage ratings of 600VAC/DC. The enclosure is made of steel and has no neutral installed. This non-fusible disconnect has a short circuit current rating of 200kA. This safety switch is surface mounted. This switch comes with an 18 months warranty.

Safety switch, heavy duty, non fusible, 200A, 3 wire, 3 pole, 150HP, 600V AC/DC, NEMA 1

HU364

Main
Product	Single Throw Safety Switch
Duty Rating	Heavy duty
Device Application	Heavy application
Disconnect Type	Non-fusible disconnect
Factory Installed Neutral	None
Phase	3 phase
Number of Poles	3
Current Rating	200 A
Voltage Rating	600 V AC/DC
Enclosure Rating	NEMA 1 steel
Motor power hp	15 hp at 240 V AC 50-60 Hz for 1 phase motors 60 hp at 240 V AC 50-60 Hz for 3 phase motors 50 hp at 480 V AC 50-60 Hz for 1 phase motors 125 hp at 480 V AC 50-60 Hz for 3 phase motors 50 hp at 600 V AC 50-60 Hz for 1 phase motors 150 hp at 600 V AC 50-60 Hz for 3 phase motors 40 hp at 250 V DC 50 hp at 600 V DC

Complementary
Mounting Type	Surface
Electrical Connection	Lugs
Wiring configuration	3-wire
Wire Size	AWG 6…250 kcmil copper or aluminium
Tightening torque	275 lbf.in (31.07 N.m) 0.02…0.2 in² (13.3…127 mm²) (AWG 6…250 kcmil)
Depth	8.25 in (209.55 mm)
Width	18.5 in (469.9 mm)
Height	29 in (736.6 mm)
Net Weight	52.007 lb(US) (23.59 kg)

Environment
Certifications	UL listed file E2875

Ordering and shipping details
Category	US10DE100008
Discount Schedule	0DE1
GTIN	785901505860
Returnability	No
Country of origin	US

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	8.200 in (20.828 cm)
Package 1 Width	19.300 in (49.022 cm)
Package 1 Length	30.700 in (77.978 cm)
Package 1 Weight	43.10 lb(US) (19.55 kg)
Unit Type of Package 2	PAL
Number of Units in Package 2	15
Package 2 Height	45.50 in (115.57 cm)
Package 2 Width	40.0000000000 in (101.6 cm)
Package 2 Length	48.0000000000 in (121.92 cm)
Package 2 Weight	650.0004 lb(US) (294.835 kg)
