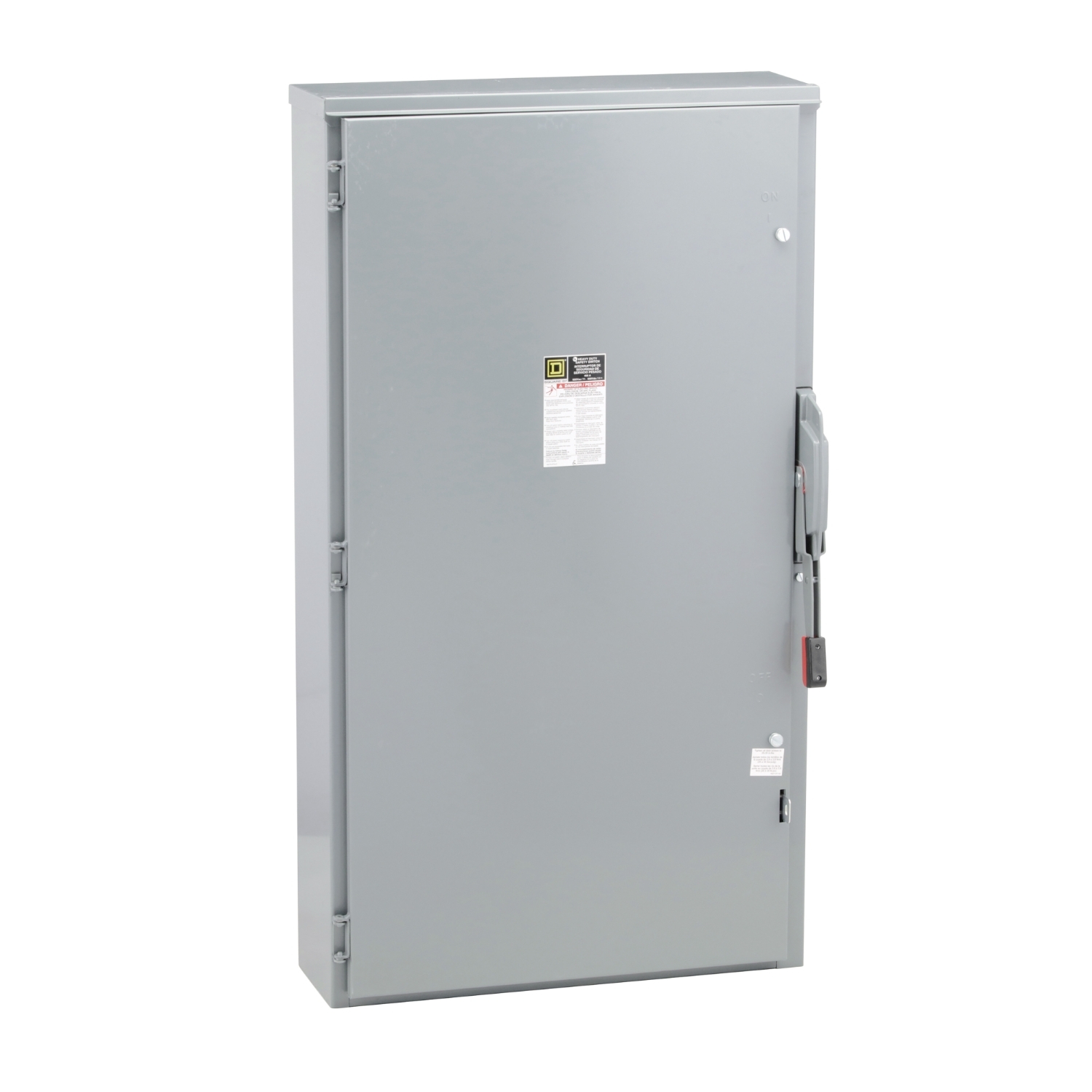

HU365R, Safety switch, heavy duty, non fusible, 400A, 3 wire, 3 pole, 350hp, 600VAC/DC, NEMA 3R

MXN $118,972.00 - (IVA Incluido) + Envío

Sin existencias

The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. This Single Throw Safety Switch has a rated current of 400A and is UL listed with a NEMA 1 rating of protection. This 3-pole switch has operational voltage ratings of 600VAC/DC. The enclosure is made of steel and has no neutral installed. This non-fusible disconnect has a short circuit current rating of 200kA. This safety switch is surface mounted. This switch comes with an 18 months warranty.

SKU: HU365R

Safety switch, heavy duty, non fusible, 400A, 3 wire, 3 pole, 350hp, 600VAC/DC, NEMA 3R

HU365R

Main
Product Single Throw Safety Switch
Duty Rating Heavy duty
Device Application Heavy application
Disconnect Type Non-fusible disconnect
Factory Installed Neutral None
Phase 3 phase
Number of Poles 3
Current Rating 400 A
Voltage Rating 600 V AC/DC
Enclosure Rating NEMA 3R galvannealed steel
Motor power hp 125 hp at 240 V AC 50-60 Hz for 3 phase motors
250 hp at 480 V AC 50-60 Hz for 3 phase motors
350 hp at 600 V AC 50-60 Hz for 3 phase motors
50 hp at 250 V DC
50 hp at 600 V DC
Complementary
Mounting Type Surface
Electrical Connection Lugs
Wiring configuration 3-wire
Wire Size AWG 1/0…750 kcmil copper or aluminium
Tightening torque 550 lbf.in (62.1 N.m) (AWG 1/0…750 kcmil)
Depth 10.13 in (257.30 mm)
Width 27.88 in (708.15 mm)
Height 50.31 in (1277.87 mm)
Net Weight 187.0 lb(US) (84.8 kg)
Environment
Certifications UL listed file E2875
Ordering and shipping details
Category US10DE100054
Discount Schedule 0DE1
GTIN 785901450481
Returnability Yes
Country of origin MX
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 13.4 in (34.0 cm)
Package 1 Width 28.7 in (73.0 cm)
Package 1 Length 51.2 in (130.0 cm)
Package 1 Weight 187.0007 lb(US) (84.822 kg)
Contractual warranty
Warranty 18 months
Peso 84.822 kg
Dimensiones 73 × 130 × 34 cm
