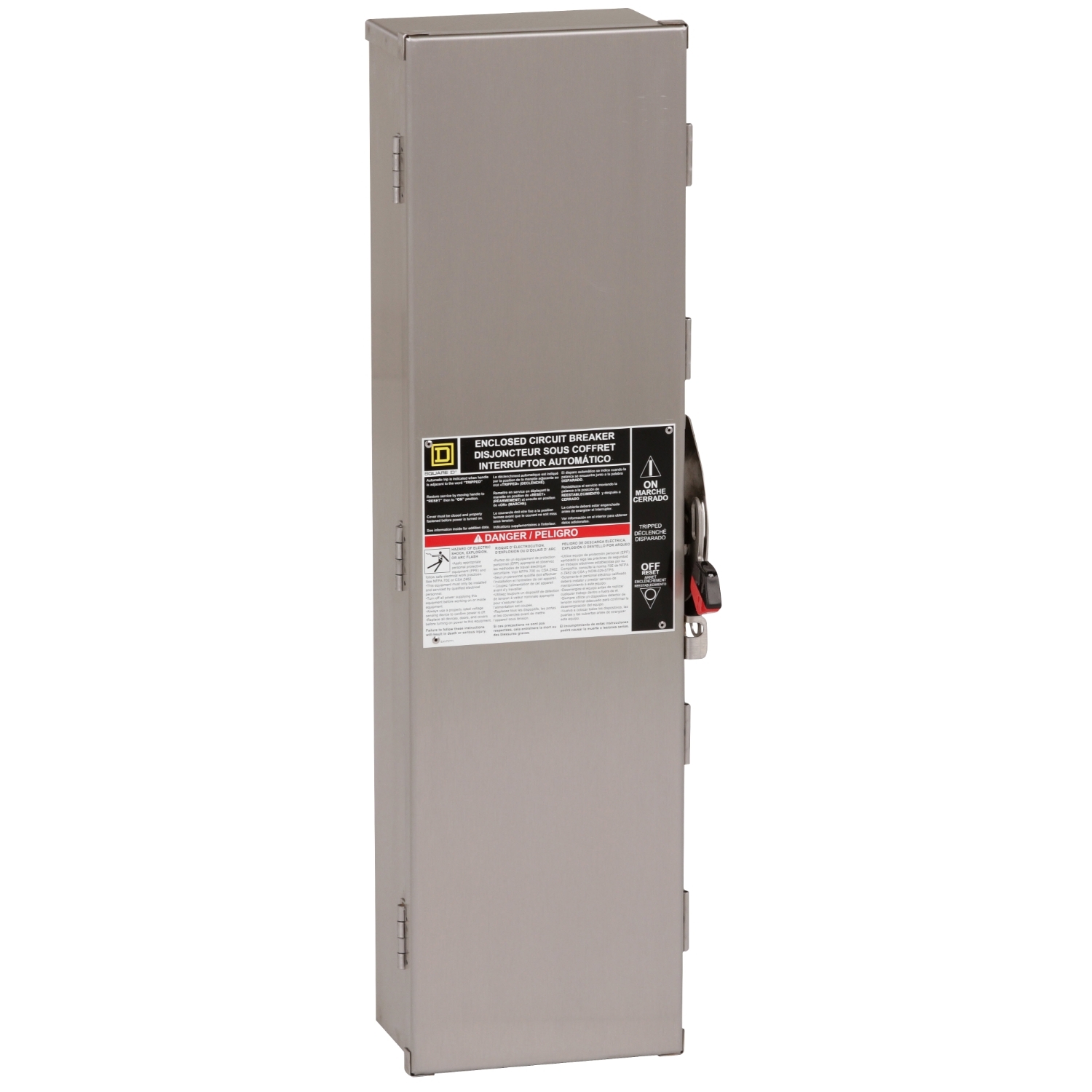

J250DS, Circuit breaker enclosure, PowerPacT H/J, 15A to 250A, 2 and 3 pole, NEMA 3/3R/4/4X/5, stainless steel

MXN $1,079,999.00 - (IVA Incluido) + Envío

Sin existencias

The enclosures for the family of PowerPact circuit breakers H- through Q-frame are cULus listed unless otherwise noted. The enclosures are suitable for service entrance equipment when neutral assembly is installed. The short circuit current rating of the enclosed circuit breakers is equal to the rating of the circuit breaker installed unless otherwise noted. All enclosures will accept 100% rated circuit breakers unless otherwise noted.  This is a Powerpact H and J Circuit Breaker enclosure can accept 2 and 3 pole circuit breakers that has a current rating of 15-250A and is NEMA 1 enclosure. This enclosure is for powerpact H and J frame breakers. This product comes with an 18 month warranty.

SKU: J250DS

Circuit breaker enclosure, PowerPacT H/J, 15A to 250A, 2 and 3 pole, NEMA 3/3R/4/4X/5, stainless steel

J250DS

Main
Breaker Compatibility Circuit breaker H-Frame 15…250 A
Circuit breaker J-Frame 15…250 A
Complementary
Height 32.26 in (819.40 mm)
Width 9.72 in (246.89 mm)
Depth 7.94 in (201.68 mm)
Environmental
NEMA Degree of Protection NEMA 3/3R/4/4X/5/12
Ordering and shipping details
Category US10DE100031
Discount Schedule 0DE1
GTIN 785901507598
Returnability Yes
Country of origin MX
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 8.0 in (20.3 cm)
Package 1 Width 9.5 in (24.1 cm)
Package 1 Length 33.1 in (84.1 cm)
Package 1 Weight 25.84 lb(US) (11.72 kg)
Contractual warranty
Warranty 18 months
Peso 5 kg
Dimensiones 15 × 15 × 15 cm
Marcas

Schneider Electric

Marca

Schneider Electric
