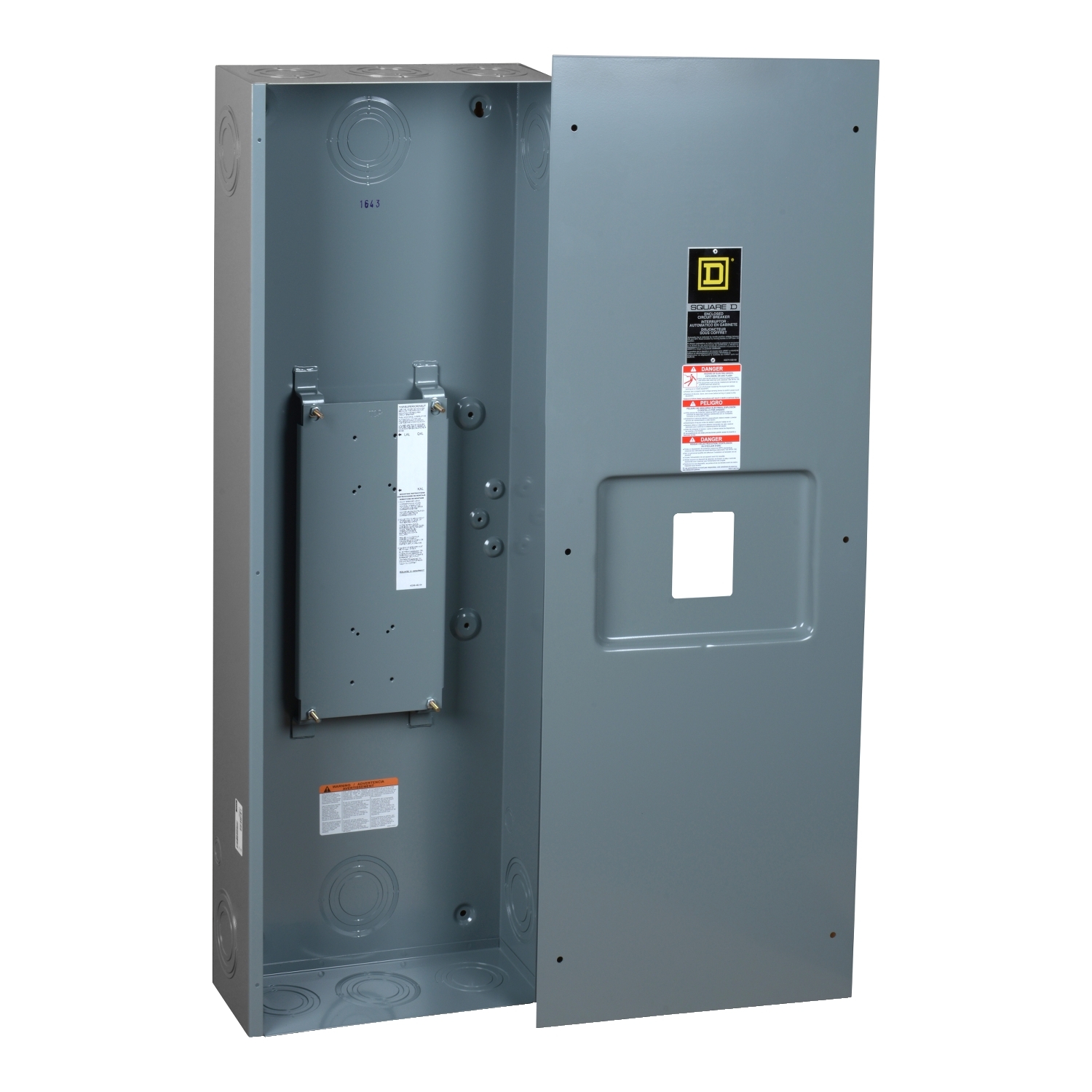

Circuit breaker enclosure, LA, 125A to 400A, NEMA 1, flush mount
LA400F
| Circuit Breaker Type | LAL Q4L LHL |
|---|---|
| Breaker Compatibility | Circuit breaker LAL/LHL/Q4L 3P Circuit breaker LAL/LHL/Q4L 2P |
| Rated Current | 125…400 A |
|---|---|
| Device Mounting | Flush |
| Poles Description | 3P 2P |
| Enclosure Material | Steel |
| Height | 42.2 in (1073 mm) |
| Width | 13.7 in (349 mm) |
| Depth | 7.2 in (184 mm) |
| Product Certifications | UL CSA |
|---|
| NEMA Degree of Protection | NEMA 1 |
|---|
| Category | US10DE100030 |
|---|---|
| Discount Schedule | 0DE1 |
| GTIN | 785901508007 |
| Returnability | Yes |
| Country of origin | US |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.7 in (19.6 cm) |
| Package 1 Width | 17.008 in (43.2 cm) |
| Package 1 Length | 46.0 in (116.8 cm) |
| Package 1 Weight | 54.7 lb(US) (24.8 kg) |
| Warranty | 18 months |
|---|
