N250MJ, NF Panelboard, installation kit, main breaker, 250 A, W/J frame

MXN $5,445.00 - (IVA Incluido) + Envío

149 disponibles

NF Panelboards provide a broad range of solutions available from distributor stock to address electrical contractor’s need. NF Panelboards have modular construction to accept field installable accessories and conversion kits. This panelboard accessory is a installation kit used for main breakerss This kit is rated at 250 A and is for JJL, JGL, JLL and JD circuit breakers.

Comprar Ahora

NF Panelboard, installation kit, main breaker, 250 A, W/J frame

N250MJ

Main
Product	Installation kit
Accessory / separate part categor	Installation accessory

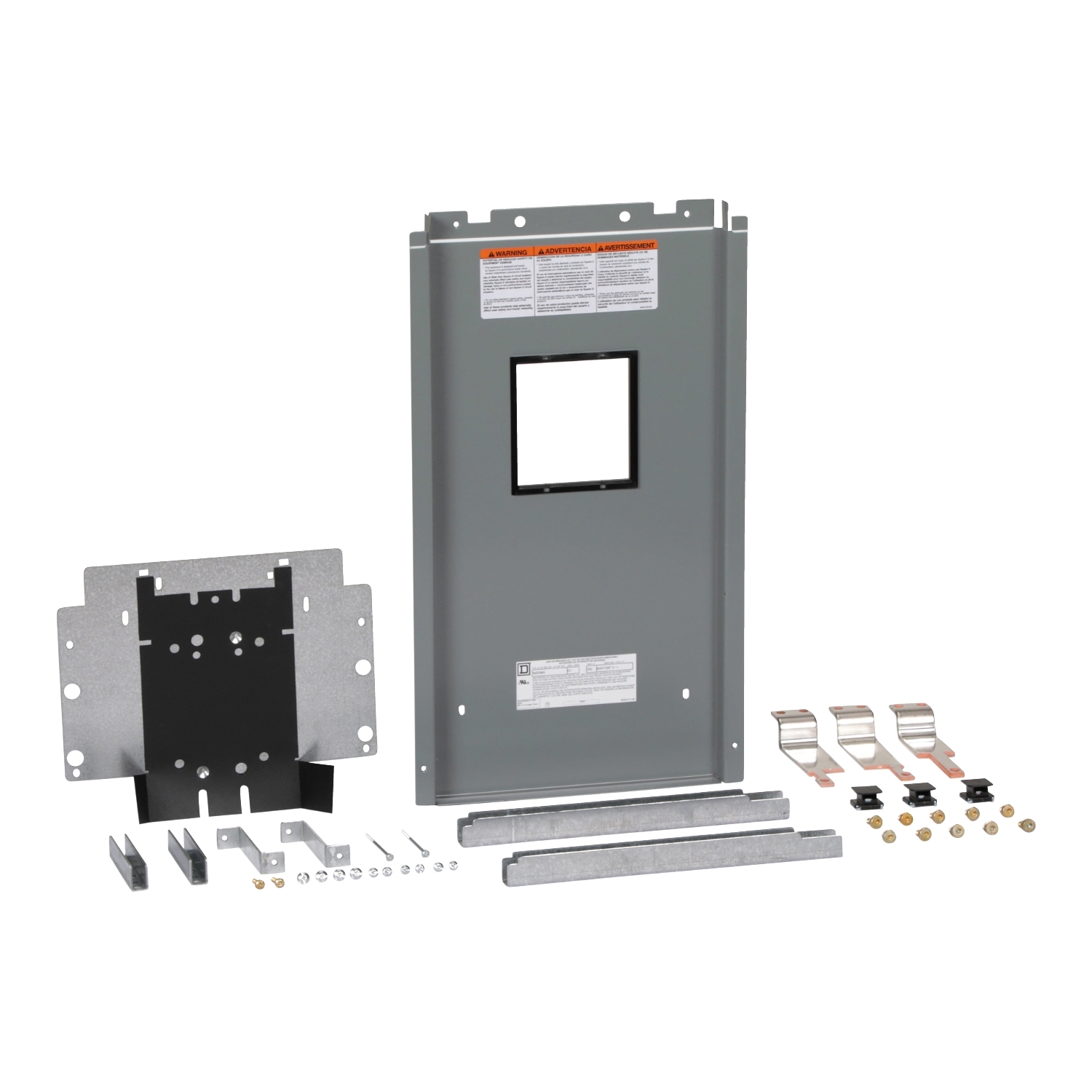

Provided equipment	Cover plate 1 Mounting plate 1 Bracket for support 2 Screw set 1 Connector 3 Rail extension 2 Rail splice 2 Label 1 Terminal 3
Circuit breaker type	JJL JGL JLL JD

Complementary
Device Application	circuit breaker 250 A
Tightening torque	60.2…64.6 lbf.in (6.8…7.3 N.m)

Environment
Product Certifications	cULus

Ordering and shipping details
Category	US1PE1A08338
Discount Schedule	PE1A
GTIN	785901590996
Returnability	Yes
Country of origin	MX

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	2.6 in (6.6 cm)
Package 1 Width	14.6 in (37.1 cm)
Package 1 Length	25.4 in (64.5 cm)
Package 1 Weight	10.85 lb(US) (4.92 kg)
