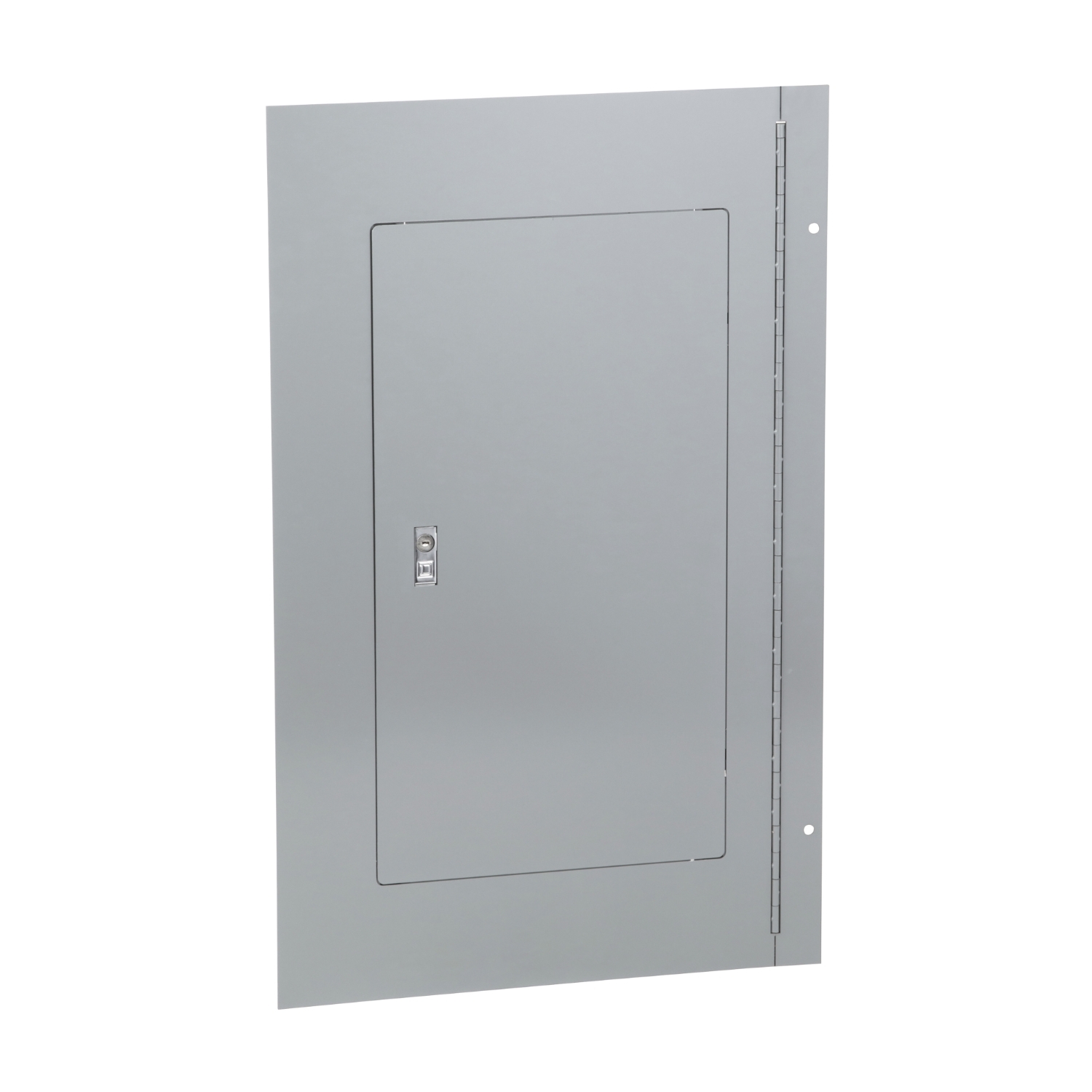

NC32SHR, Enclosure cover, NQ and NF panelboards, NEMA 1, surface, hinged, 20in W x 32in H

MXN $8,210.00 - (IVA Incluido) + Envío

1 disponibles

Square D® NQ/NQM panelboards, NC32SHR, is a grey hinged steel surfface cover. has NEMA1 degree of protection, cULus certified. Warranty period is 18 month. .

Comprar Ahora

Enclosure cover, NQ and NF panelboards, NEMA 1, surface, hinged, 20in W x 32in H

NC32SHR

Main
Product	Surface cover
Color	Gray
Cover type	Surface cover
Type of front plate	Hinged

Complementary
Material	Steel
Height	32 in (812.8 mm)
Width	20 in (508.0000000000 mm)
Tightening torque	Cover 10…12 lb.in

Environment
Enclosure Rating	NEMA 1
Product Certifications	cULus

Ordering and shipping details
Category	US1PE1A08352
Discount Schedule	PE1A
GTIN	785901396833
Returnability	Yes
Country of origin	US

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	36.40 in (92.46 cm)
Package 1 Width	2.50 in (6.35 cm)
Package 1 Length	21.80 in (55.37 cm)
Package 1 Weight	17.6 lb(US) (8 kg)
Unit Type of Package 2	PAL
Number of Units in Package 2	36
Package 2 Height	38.50 in (97.79 cm)
Package 2 Width	42.0000000000 in (106.68 cm)
Package 2 Length	42.0000000000 in (106.68 cm)
Package 2 Weight	679.00 lb(US) (307.989 kg)
