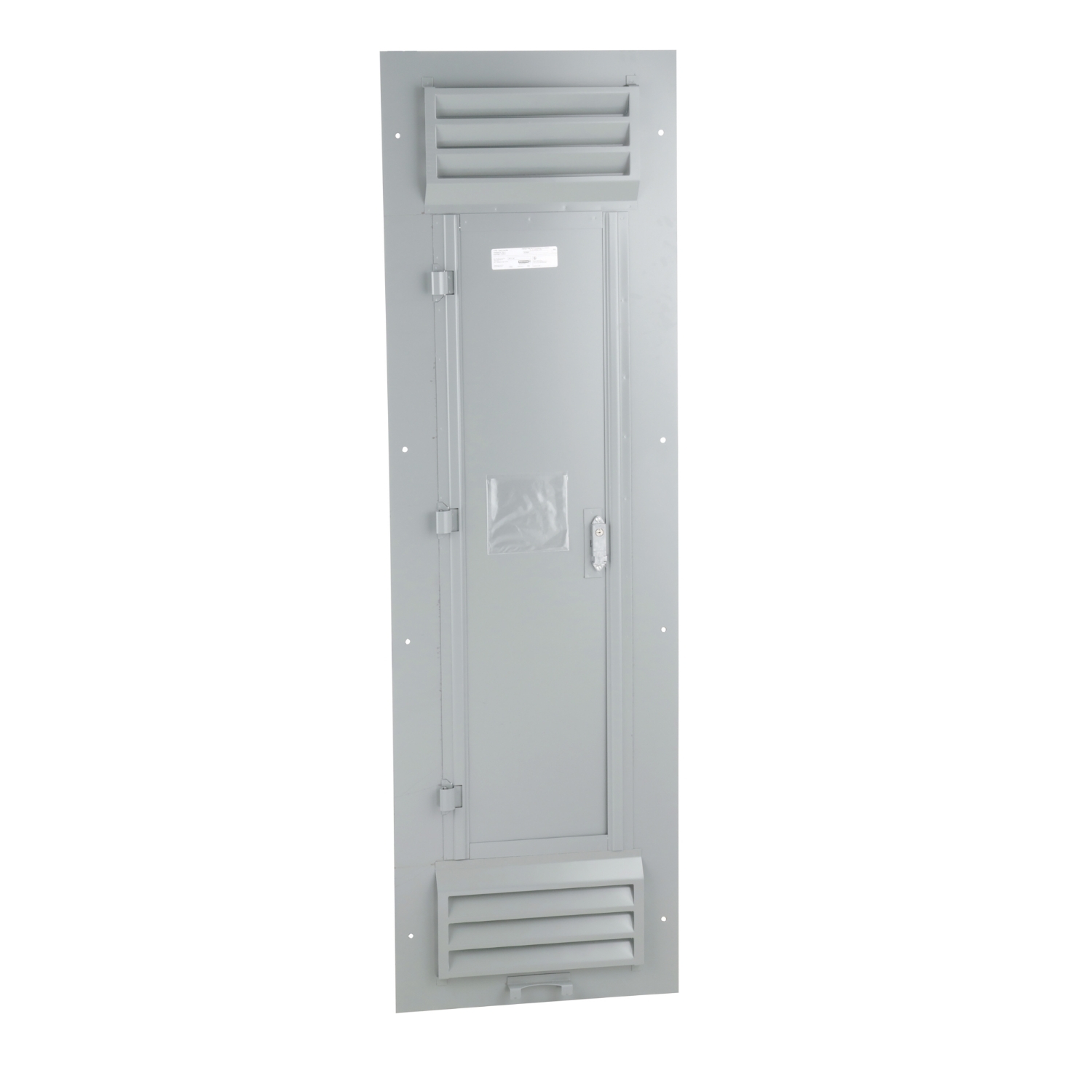

NC68VF, Enclosure cover, NQ and NF panelboards, NEMA 1, flush, ventilated, 20in W x 68in H

MXN $10,823.00 - (IVA Incluido) + Envío

19 disponibles

NQ and NF Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready to install kits. NQ and NF Panelboards provide 200% rated neutrals for non-linear loads. NQ and NF Panelboards are convertible from main lug to main breaker. NQ and NF Panelboards have many different options for your enclosure cover. This cover is rated for a flush type 1 enclosure. The dimensions for this unit are 20 x 68 in and it is ventilated. NQ and NF Panelboard interiors are field convertible to top or bottom feed. NQ and NF Panelboards are suitable for use as service equipment.

Comprar Ahora

Enclosure cover, NQ and NF panelboards, NEMA 1, flush, ventilated, 20in W x 68in H

NC68VF

Main
Product	Flush cover
Color	Gray
Cover type	Flush cover
Type of front plate	Ventilated

Complementary
Material	Steel
Height	68 in (1727.2 mm)
Width	20 in (508.0000000000 mm)
Tightening torque	Cover 10…12 lb.in

Environment
Enclosure Rating	NEMA 1
Product Certifications	cULus

Ordering and shipping details
Category	US1PE1A08352
Discount Schedule	PE1A
GTIN	785901312000
Returnability	Yes
Country of origin	US

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	2.008 in (5.1 cm)
Package 1 Width	22.008 in (55.9 cm)
Package 1 Length	69.7 in (177.0 cm)
Package 1 Weight	45.999 lb(US) (20.865 kg)
