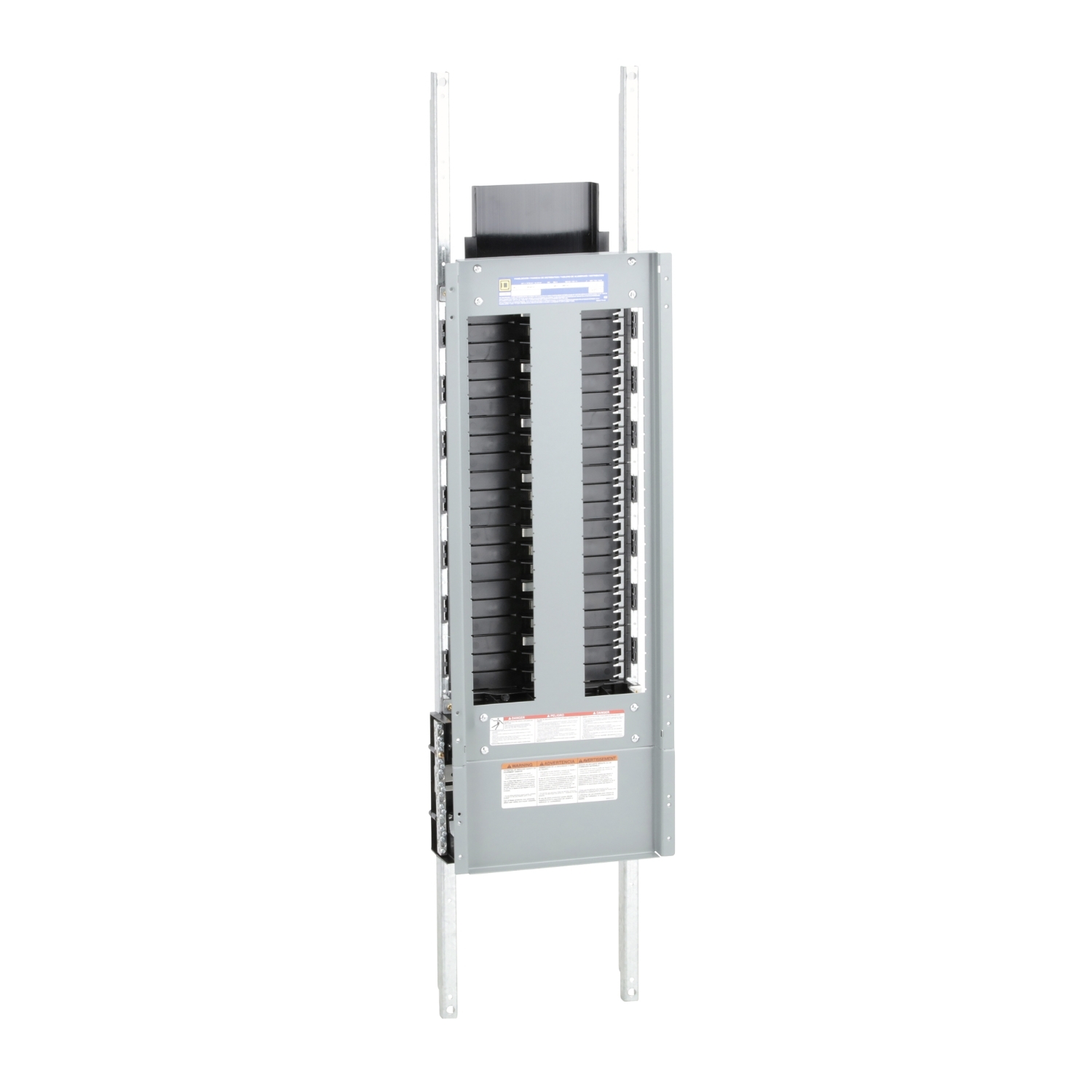

NF442L4C, Panelboard interior, NF, main lugs, 400A, Cu bus, Al neutral assembly, 42 pole spaces, 3 phase, 4 wire, 600Y/347VAC max

MXN $24,269.00 - (IVA Incluido) + Envío

48 disponibles

NF Panelboard interiors can be used for applications such as commercial buildings, industrial buildings, stadiums, and offices. These interiors provide protection for commercial and industrial applications. NF Panelboards feature a wide selection of circuit breakers, accessories, and ready to install kits. NF Panelboards are field convertible to top or bottom feed. NF Panelboards are convertible from main lug to main breaker. NF Panelboards can provide 200% rated neutrals for nonlinear loads. Some factory installed options are split bus, lighting contactors, compression lugs, surge protection devices, and phenolic nameplates. The main lugs are rated at 400A 480Y/277 VAC 3 phase. Interior has an interrupt current rating of up to 65 kA. This interior is for a 4 wire system with 42 spaces and has a copper bus bar. Interior is for EDB, EDG, and EDJ branch circuit breakers. Line lug connections will accept 1/0 AWG to 750 kcmil aluminum wire. The interior is 52 inches tall and 10.44 inches wide. This interior is UL listed and CSA certified.

Comprar Ahora

Panelboard interior, NF, main lugs, 400A, Cu bus, Al neutral assembly, 42 pole spaces, 3 phase, 4 wire, 600Y/347VAC max

NF442L4C

Main
Panelboard Type	Main lugs
Branch Circuit Breaker Type	EDB/EDG/EDJ
Busbar Material	Copper

Complementary
Number of spaces	42
Enclosure Nominal Height	68 in (1727.2 mm) 56 in (1422.4 mm)
Enclosure Nominal Width	20 in (508.0000000000 mm)
Enclosure Nominal Depth	5.75 in (146.05 mm) NEMA 1 6.5 in (165.1 mm) NEMA 3R/5/12
Line Rated Current	400 A
[Iu] rated interrupted current	65 kA
Number of Phases	3 phase 4 wires
Voltage Rating	600Y/347 V AC
Connections – terminals	Lug line AWG 1/0…750 kcmil aluminium Lug neutral AWG 1/0…750 kcmil aluminium
Tightening torque	274.99…300.04 lbf.in (31.07…33.90 N.m) 0.08…0.6 in² (53.48…380 mm²) (AWG 1/0…750 kcmil) 274.99…300.04 lbf.in (31.07…33.90 N.m) 0.08…0.3 in² (53.48…177.3 mm²) (AWG 1/0…350 kcmil) 549.98 lbf.in (62.14 N.m) 0.08…0.6 in² (53.48…380 mm²) (AWG 1/0…750 kcmil) 549.98 lbf.in (62.14 N.m) 0.08…0.2 in² (53.48…152 mm²) (AWG 1/0…300 kcmil) 375.006 lbf.in (42.37 N.m) 0.08…0.6 in² (53.48…380 mm²) (AWG 1/0…750 kcmil) 375.006 lbf.in (42.37 N.m) 0.08…0.2 in² (53.48…152 mm²) (AWG 1/0…300 kcmil)
Height	52 in (1320.8 mm)
Width	10.44 in (265.18 mm)
Net Weight	59.00 lb(US) (26.76 kg)

Environment
Standards	CSA C22.2 UL 67

Ordering and shipping details
Category	US1PE1A08350
Discount Schedule	PE1A
GTIN	785901871613
Returnability	Yes
Country of origin	US

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	6.3 in (16.0 cm)
Package 1 Width	13.9 in (35.3 cm)
Package 1 Length	56.2 in (142.7 cm)
Package 1 Weight	32.72 lb(US) (14.84 kg)
Unit Type of Package 2	PAL
Number of Units in Package 2	15
Package 2 Height	40.0000000000 in (101.6 cm)
Package 2 Width	42.0000000000 in (106.68 cm)
Package 2 Length	60.0000000000 in (152.4 cm)
Package 2 Weight	885.80 lb(US) (401.79 kg)

Contractual warranty
Warranty	18 months

Show More Show Less

Peso	5 kg
Dimensiones	15 × 15 × 15 cm
Marcas	Schneider Electric
