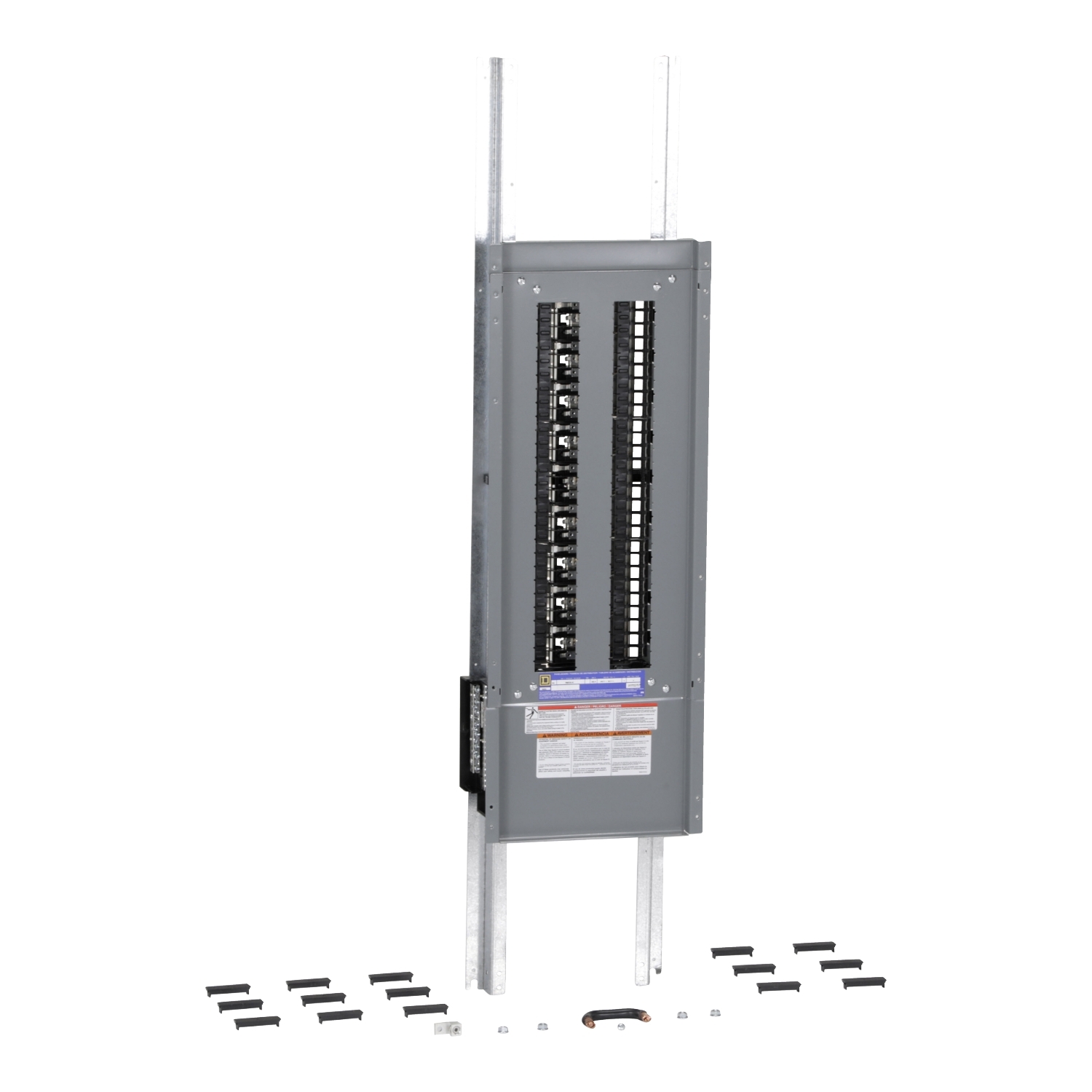

Panelboard interior, NQ, main lugs, 400A, Cu bus, 54 pole spaces, 3 phase, 4 wire, 240VAC, 48VDC
NQ454L4C
| Panelboard Type | Main lugs |
|---|---|
| Product or Component Type | Interiors |
| Branch Circuit Breaker Type | QOB QOB-VH QHB |
| Busbar Material | Copper |
| Number of spaces | 54 |
|---|---|
| Line Rated Current | 400 A |
| [Iu] rated interrupted current | 10 kA 22 kA 65 kA |
| Number of Phases | 3 phase 4 wires |
| Voltage Rating | 240 V AC 48 V DC |
| Connections – terminals | Lug line AWG 1/0…750 kcmil aluminium Lug neutral AWG 1/0…750 kcmil aluminium |
| Tightening torque | 274.99…300.04 lbf.in (31.07…33.90 N.m) 0.08…0.6 in² (53.48…380 mm²) (AWG 1/0…750 kcmil) 274.99…300.04 lbf.in (31.07…33.90 N.m) 0.08…0.3 in² (53.48…177.3 mm²) (AWG 1/0…350 kcmil) 549.98 lbf.in (62.14 N.m) 0.08…0.6 in² (53.48…380 mm²) (AWG 1/0…750 kcmil) 549.98 lbf.in (62.14 N.m) 0.08…0.2 in² (53.48…152 mm²) (AWG 1/0…300 kcmil) 375.006 lbf.in (42.37 N.m) 0.08…0.6 in² (53.48…380 mm²) (AWG 1/0…750 kcmil) 375.006 lbf.in (42.37 N.m) 0.08…0.2 in² (53.48…152 mm²) (AWG 1/0…300 kcmil) |
| Net Weight | 27.21 lb(US) (12.34 kg) |
| Category | US1PE1A09151 |
|---|---|
| Discount Schedule | PE1A |
| GTIN | 785901952084 |
| Returnability | Yes |
| Country of origin | US |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.0000000000 in (15.24 cm) |
| Package 1 Width | 14.0000000000 in (35.56 cm) |
| Package 1 Length | 56.20 in (142.748 cm) |
| Package 1 Weight | 27.21 lb(US) (12.34 kg) |
