| Range | PanelSeT |
|---|---|

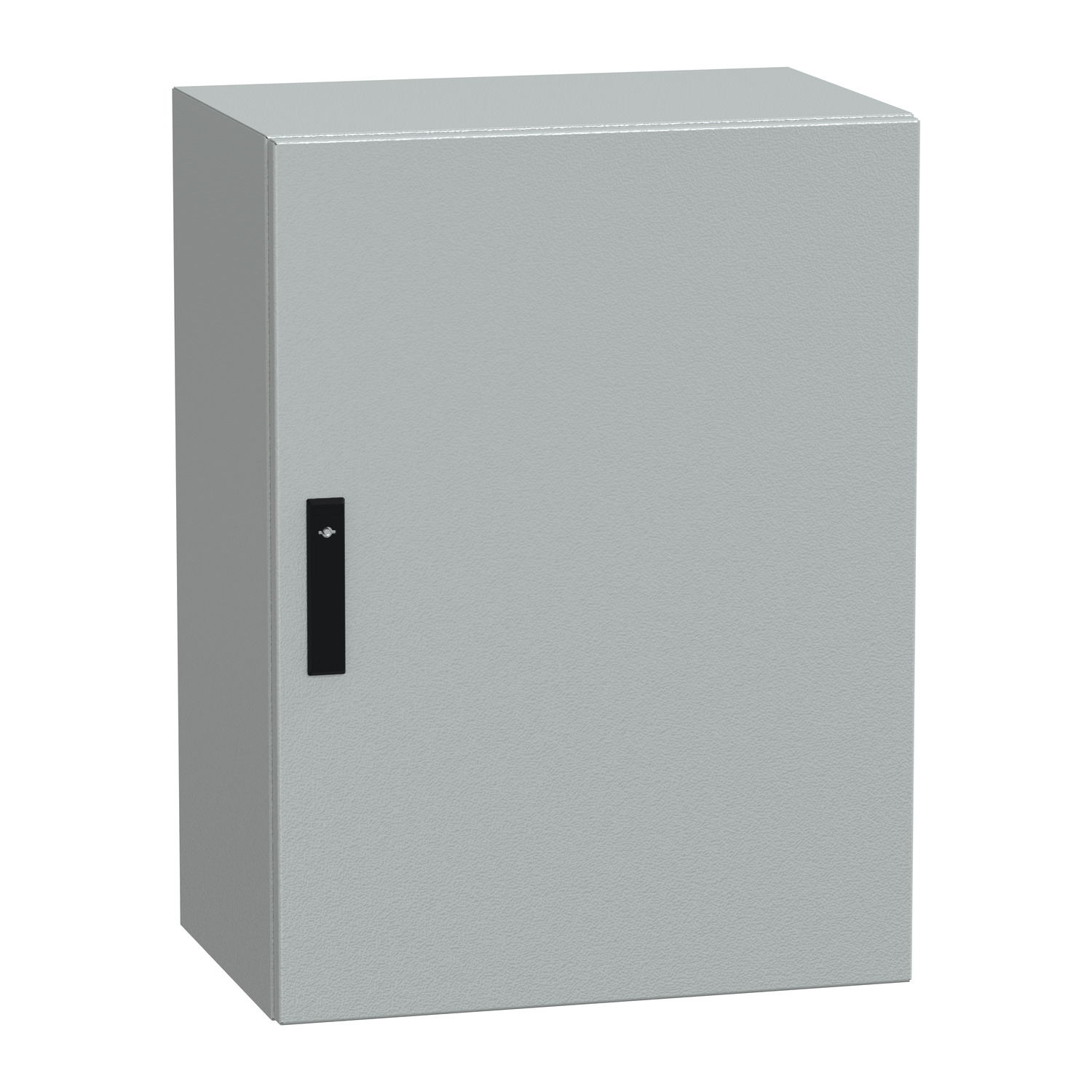

| Product name | PanelSeT CRNG |
| Application | Multi-purpose |
| Category | Compact enclosure |
| Enclosure nominal height | 31.5 in (800 mm) |
| Enclosure nominal width | 23.6 in (600 mm) |
| Enclosure nominal depth | 15.7 in (400 mm) |
| Installation accessory type | Wall-mounting |
| Device composition | 1 body 1 cable gland plate 1 door 1 lock |
| Door type | Solid |
| Mounting plate description | Without mounting plate |
| body type | Single piece body |
|---|---|
| Number of doors | Front face 1 |
| Door opening side | Reversible 120 °) |
| Lock type | 3 points lock, 5 mm double-bar |
| Type of gland plate | Standard |
| Accessibility for operation | Front |
| Removable parts | Door by hinges Cable gland plate by screws |
| Material | Body steel |
| Surface finish | epoxy-polyester powder |
| color | Gray RAL 7035) |
| Standards | IEC 62208 |
| Product Certifications | cUL UL |
| Net Weight | 68.3 lb(US) (31 kg) |
| IP degree of protection | IP66 IEC 60529 |
|---|---|
| IK degree of protection | IK10 IEC 62262 |
| Category | US10ES180034 |
|---|---|
| Discount Schedule | 0ES1 |
| GTIN | 3606480298097 |
| Returnability | No |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 32.01 in (81.3 cm) |
| Package 1 Width | 24.33 in (61.8 cm) |
| Package 1 Length | 17.64 in (44.8 cm) |
| Package 1 Weight | 68.3 lb(US) (31.0 kg) |
| Coverage | Core product |
|---|---|
| Warranty | 18 months |
