| Range | PanelSeT |
|---|---|
| Accessory / separate part category | Mounting accessory |

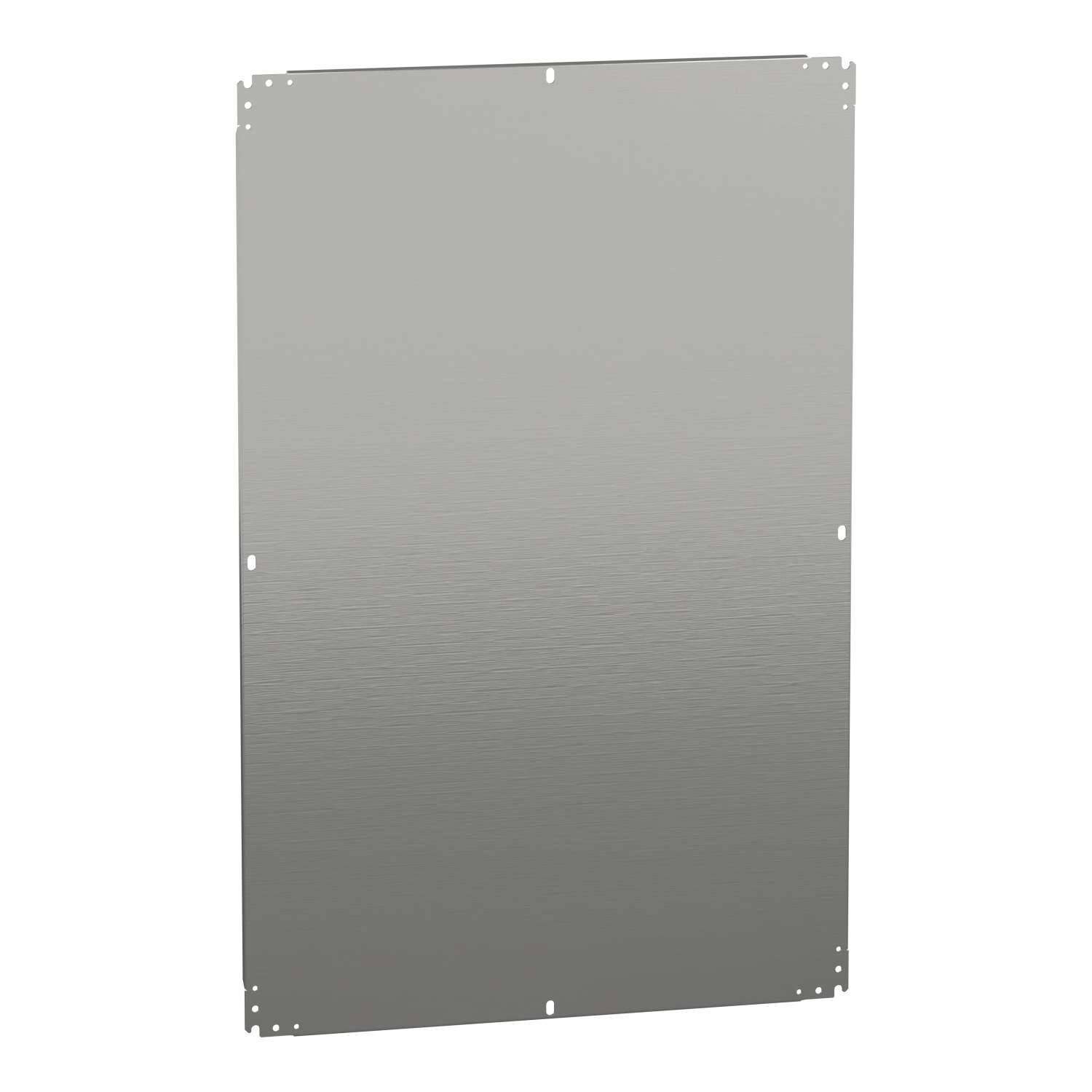

| Product or Component Type | Mounting plate |
| Device Application | Multi-purpose |
| Enclosure nominal dimensions | – H: 47.2 in (1200 mm) W: 31.5 in (800 mm) – H: 31.5 in (800 mm) W: 47.2 in (1200 mm) |
| Mounting Location | Direct fixing on backstuds Step slide |
| Mounting plate description | Plain |
| Range compatibility | PanelSeT S3D PanelSeT S3D PanelSeT CRN PanelSeT CRN PanelSeT Thalassa PLM PLM |
| Quantity per Set | Set of 1 |
| Material | galvanised steel |
| Fixing mode | Screwed on backstuds M8 By fixing element |
|---|---|
| Permanent permissible load | 396.8 lb(US) (180 kg) |
| Height | 45.3 in (1150 mm) |
| Width | 29.5 in (750 mm) |
| Thickness | 0.07 in (1.8 mm) |
| Net Weight | 38.195 lb(US) (17.325 kg) |
| Category | US10ES180036 |
|---|---|
| Discount Schedule | 0ES1 |
| GTIN | 3606480183201 |
| Returnability | Yes |
| Country of origin | ES |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.77 in (4.500 cm) |
| Package 1 Width | 30.12 in (76.500 cm) |
| Package 1 Length | 46.26 in (117.500 cm) |
| Package 1 Weight | 39.683 lb(US) (18.000 kg) |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 25.98 in (66.000 cm) |
| Package 2 Width | 31.50 in (80.000 cm) |
| Package 2 Length | 47.24 in (120.000 cm) |
| Package 2 Weight | 509.268 lb(US) (231.000 kg) |
| Warranty | 18 months |
|---|
