| Range | PanelSeT |
|---|---|
| Accessory / separate part category | Mounting accessory |

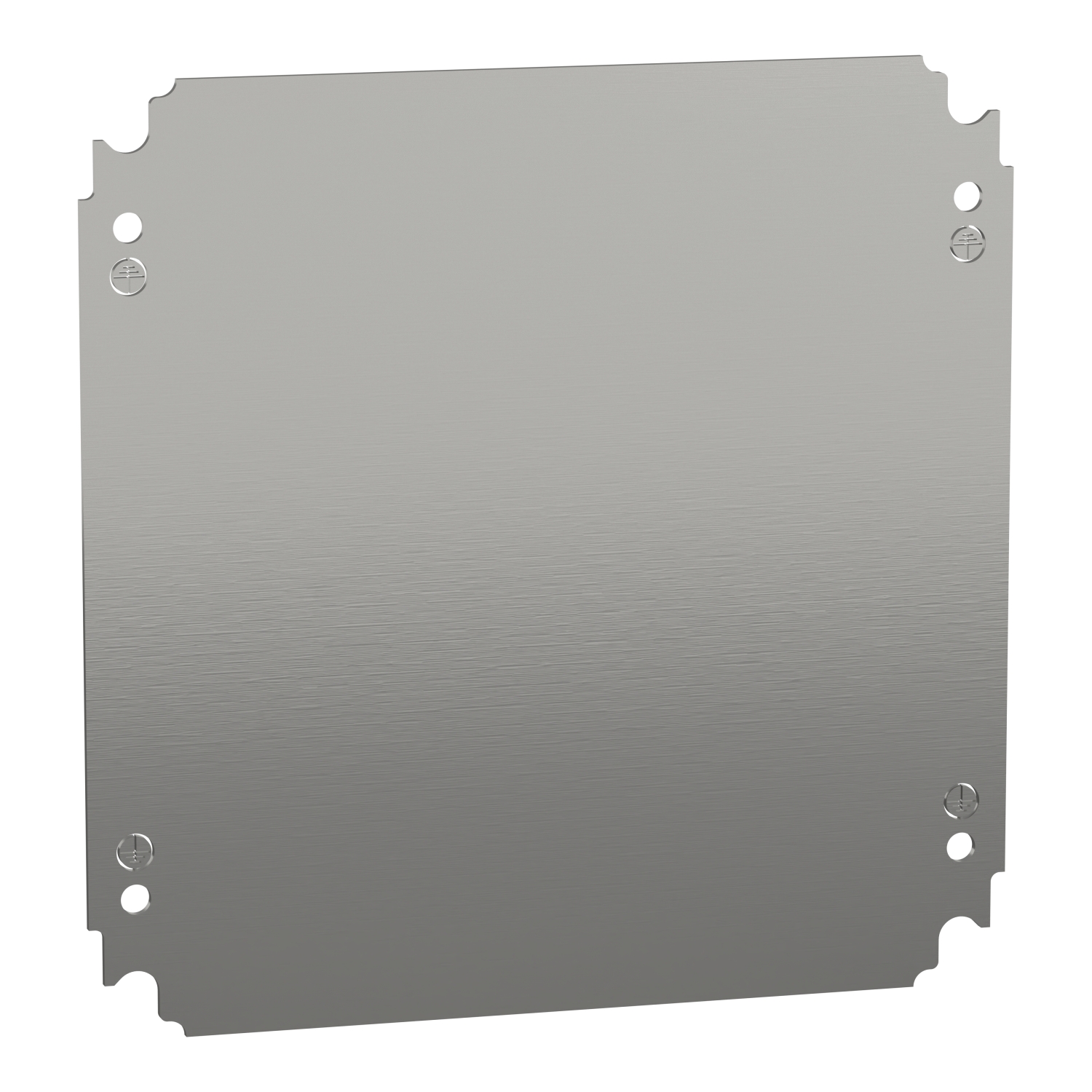

| Product or Component Type | Mounting plate |
| Device Application | Multi-purpose |
| Enclosure nominal dimensions | – H: 11.8 in (300 mm) W: 11.8 in (300 mm) |
| Mounting Location | Step slide Direct fixing on backstuds |
| Mounting plate description | Plain |
| Range compatibility | PanelSeT S3D PanelSeT S3D PanelSeT CRN PanelSeT CRN PanelSeT Thalassa PLM PLM |
| Quantity per Set | Set of 1 |
| Material | galvanised steel |
| Fixing mode | Screwed on backstuds M8 By fixing element |
|---|---|
| Permanent permissible load | 132.3 lb(US) (60 kg) |
| Height | 9.8 in (250 mm) |
| Width | 9.8 in (250 mm) |
| Thickness | 0.07 in (1.8 mm) |
| Net Weight | 2.006 lb(US) (0.91 kg) |
| Category | US10ES180036 |
|---|---|
| Discount Schedule | 0ES1 |
| GTIN | 3606480183300 |
| Returnability | Yes |
| Country of origin | ES |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 0.12 in (0.300 cm) |
| Package 1 Width | 10.04 in (25.500 cm) |
| Package 1 Length | 10.24 in (26.000 cm) |
| Package 1 Weight | 31.746 oz (900.000 g) |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 280 |
| Package 2 Height | 14.57 in (37.000 cm) |
| Package 2 Width | 31.50 in (80.000 cm) |
| Package 2 Length | 47.24 in (120.000 cm) |
| Package 2 Weight | 617.295 lb(US) (280.000 kg) |
| Warranty | 18 months |
|---|
