| Range | PanelSeT |
|---|---|

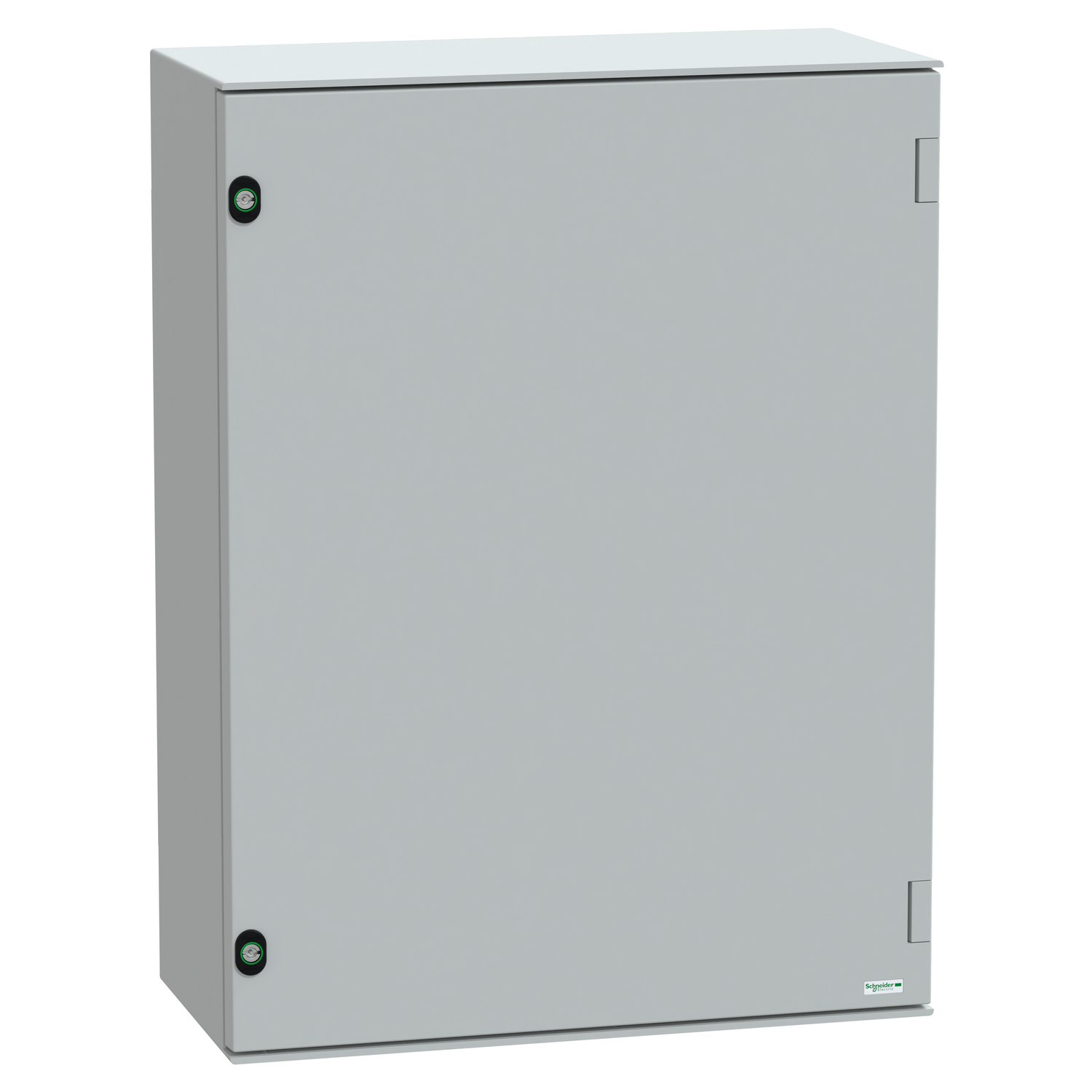

| Product name | Thalassa PLM |
| Device short name | PLM |
| Enclosure type | Multi-purpose |
| Category | Compact enclosure |
| Nominal height | 33.3 in (847 mm) |
| Nominal width | 25.04 in (636 mm) |
| Nominal depth | 11.8 in (300 mm) |
| Enclosure mounting | Wall mounted |
| Device composition | 1 body 1 door 2 lock |
| Door type | Solid |
| Lock type | 3 mm double-bar lock |
| Number of locks | 2 |
|---|---|
| Mounting plate description | Without mounting plate |
| Accessibility for operation | Front |
| Removable parts | Door by hinges |
| Material | polyester reinforced with fibreglass |
| color | Gray RAL 7035) |
| Standards | IEC 62208 NEMA classification 4X NEMA classification 13 |
| Product Certifications | UL |
| Electrical Insulation Class | Class II |
| IP degree of protection | IP66 IEC 60529 |
|---|---|
| IK degree of protection | IK10 IEC 62262 |
| Fire resistance | 1760 °F (960 °C) IEC 62208 |
| Ambient Air Temperature for Operation | -40…176 °F (-40…80 °C) |
| Category | US10ES180034 |
|---|---|
| Discount Schedule | 0ES1 |
| GTIN | 3606480776755 |
| Returnability | Yes |
| Country of origin | ES |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 12.99 in (33.000 cm) |
| Package 1 Width | 25.79 in (65.500 cm) |
| Package 1 Length | 36.42 in (92.500 cm) |
| Package 1 Weight | 37.038 lb(US) (16.800 kg) |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 78.35 in (199.000 cm) |
| Package 2 Width | 39.37 in (100.000 cm) |
| Package 2 Length | 47.24 in (120.000 cm) |
| Package 2 Weight | 330.694 lb(US) (150.000 kg) |
| Warranty | 18 months |
|---|
