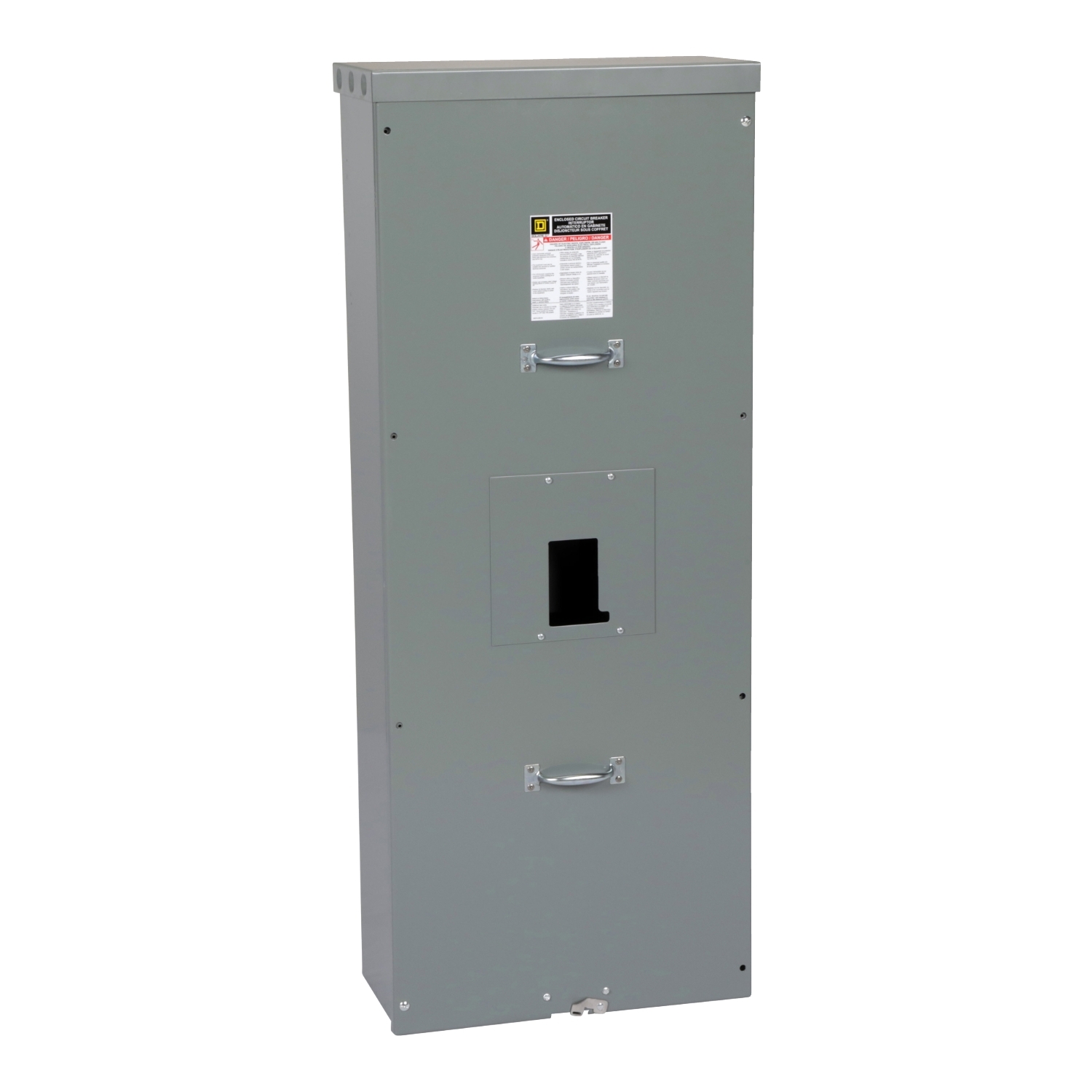

P1200S, Circuit breaker enclosure, PowerPacT P, 600A to 1200A, NEMA 1, surface mount

MXN $18,804.00 - (IVA Incluido) + Envío

Sin existencias

The enclosures for the family of LA circuit breakers are cULus listed unless otherwise noted. The enclosures are suitable for service entrance equipment when neutral assembly is installed. The short circuit current rating of the enclosed circuit breakers is equal to the rating of the circuit breaker installed unless otherwise noted. All enclosures will accept 100% rated circuit breakers unless otherwise noted.  This is a PowerPacT M and P circuit breaker enclosure can accept 2 and 3 pole circuit breakers that has a current rating of 250-1200A and is NEMA 1 enclosure. This product comes with an 18 month warranty.

SKU: P1200S

Circuit breaker enclosure, PowerPacT P, 600A to 1200A, NEMA 1, surface mount

P1200S

Main
Circuit Breaker Type PKL
PGL
PLL
PJL
Breaker Compatibility Circuit breaker P 3P
Circuit breaker P 2P
Complementary
Rated Current 600…1200 A
Device Mounting Surface
Poles Description 3P
2P
Enclosure Material Steel
Height 52.13 in (1323.98 mm)
Width 21.00 in (533.4 mm)
Depth 9.75 in (247.65 mm)
Environment
Product Certifications UL
CSA
Environmental
NEMA Degree of Protection NEMA 1
Ordering and shipping details
Category US10DE100030
Discount Schedule 0DE1
GTIN 785901577706
Returnability Yes
Country of origin MX
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 13.2 in (33.5 cm)
Package 1 Width 22.5 in (57.2 cm)
Package 1 Length 56.1 in (142.5 cm)
Package 1 Weight 119.01 lb(US) (53.98 kg)
Contractual warranty
Warranty 18 months
Peso 5 kg
Dimensiones 15 × 15 × 15 cm
Marcas

Schneider Electric

Marca

Schneider Electric

Product Datasheet
Instruction Sheet
Catalog
Environmental Disclosure
