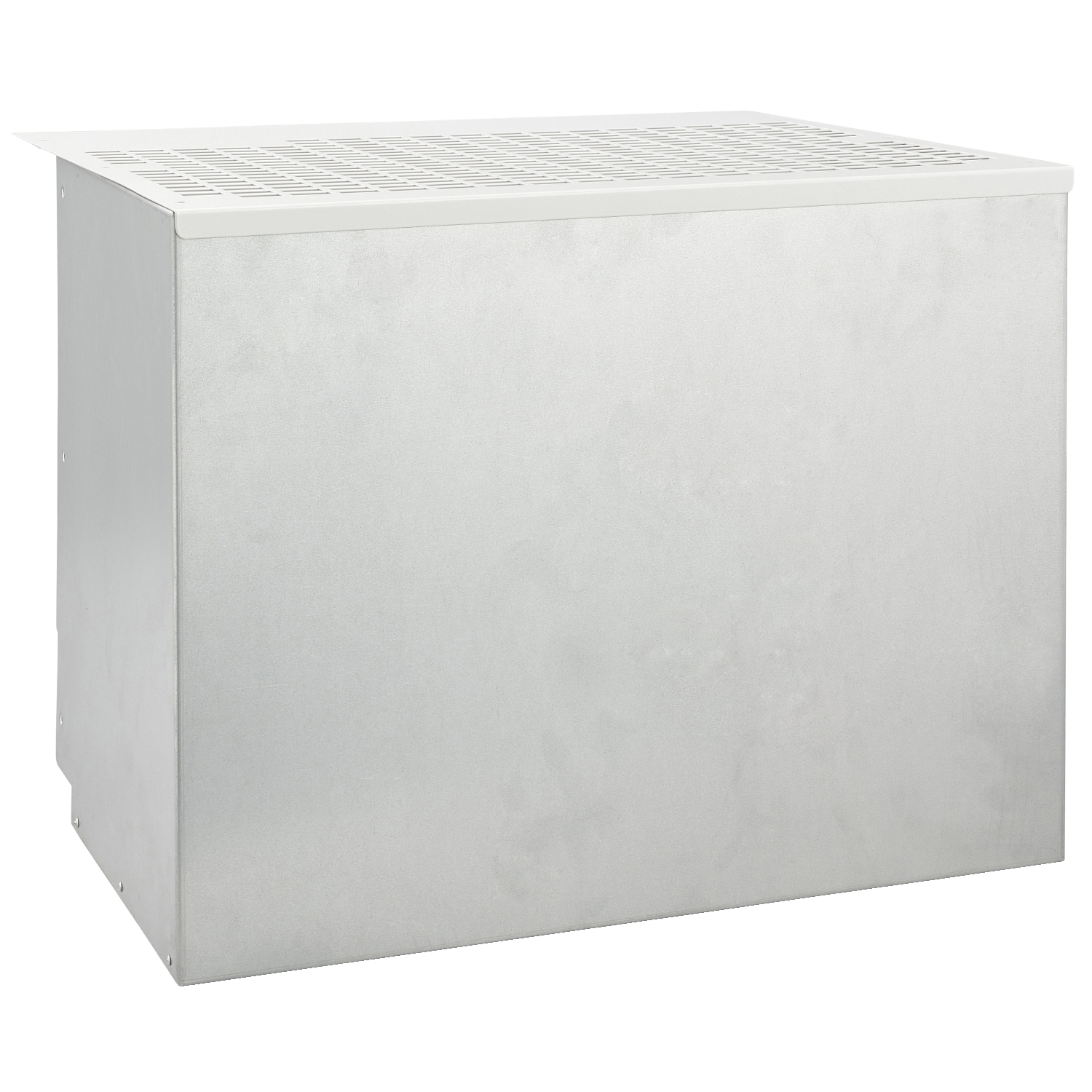

PCSPWMKIT300A, AccuSine PCS+ wall mounting conversion kit for 200 A to 300 A

This kit ensure the possibility to mount an AccuSIne PCS+ or PFV+ enclosure on a wall. Can be used to convert an Ingress Protection IP00 (UP type open) rated encloure to IP20 (UL Type 1) enclosure. Includes HMI mounting plate and cable entry enclosure for mounting on the bottom of the IP00 assemblies. The kit is to be associated with a 200A or 300A unit rating. The final assembled dimensions will be 1642mm in height for 200A rating or 1882mm in height for 300A rating, 575mm in width and 435mm in depth. For a total weight, kit plus IP00 enlosure, of 8.6kg.
