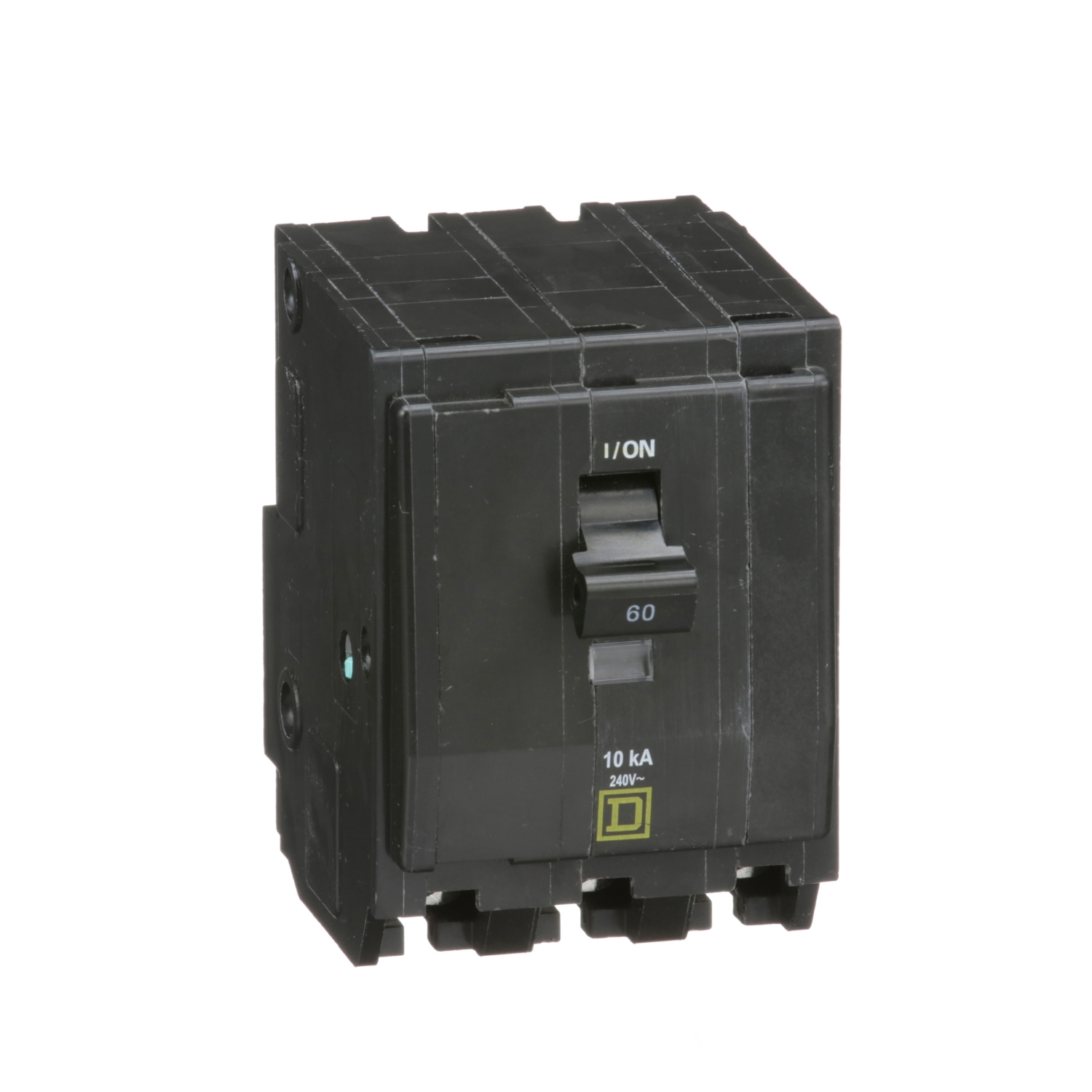

QO360, Mini circuit breaker, QO, 60A, 3 pole, 120/240VAC, 10kA, plug in
MXN $2,636.00 - (IVA Incluido) + Envío
792 disponibles
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 3 pole QO circuit breaker is rated at 60A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
Marca:Schneider Electric
| Product | Miniature circuit-breaker |
|---|---|
| Range | QO |
| Current Rating | 60 A |
| Voltage Rating | 120/240 V AC 240 V AC 120 V AC |
| Mounting Type | Plug-in |
| Number of Poles | 3P |
| Circuit Breaker Type | Standard |
| Ratings | HACR rated |
| Electrical Connection | Box lugs |
| Interrupt Rating | 10 kA 120/240 V AC 10 kA 240 V AC 10 kA 120 V AC |
|---|---|
| Number of Panel Spaces | 3 |
| Wire Size | AWG 8…AWG 2 copper or aluminium |
| Tightening Torque | 44.3 lbf.in (5 N.m) |
| Height | 3.1 in (79 mm) |
| Width | 2.2 in (57 mm) |
| Depth | 2.9 in (74 mm) |
| Net Weight | 0.851 lb(US) (0.386 kg) |
| Certifications | UL Listed CSA |
|---|---|
| Ambient Rating | 104 °F (40 °C) |
| Category | US1DE2A00012 |
|---|---|
| Discount Schedule | DE2A |
| GTIN | 785901400844 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.25 in (8.255 cm) |
| Package 1 Width | 2.25 in (5.715 cm) |
| Package 1 Length | 3.30 in (8.382 cm) |
| Package 1 Weight | 13.280 oz (376.481 g) |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 3 |
| Package 2 Height | 3.25 in (8.255 cm) |
| Package 2 Width | 3.50 in (8.890 cm) |
| Package 2 Length | 7.00 in (17.780 cm) |
| Package 2 Weight | 2.590 lb(US) (1.175 kg) |
| Unit Type of Package 3 | CAR |
| Number of Units in Package 3 | 36 |
| Package 3 Height | 3.70 in (9.398 cm) |
| Package 3 Width | 14.40 in (36.576 cm) |
| Package 3 Length | 21.50 in (54.610 cm) |
| Package 3 Weight | 31.169 lb(US) (14.138 kg) |
| Warranty | 18 months |
|---|
| Peso | 0.376481 kg |
|---|---|
| Dimensiones | 9 × 6 × 8.255 cm |
