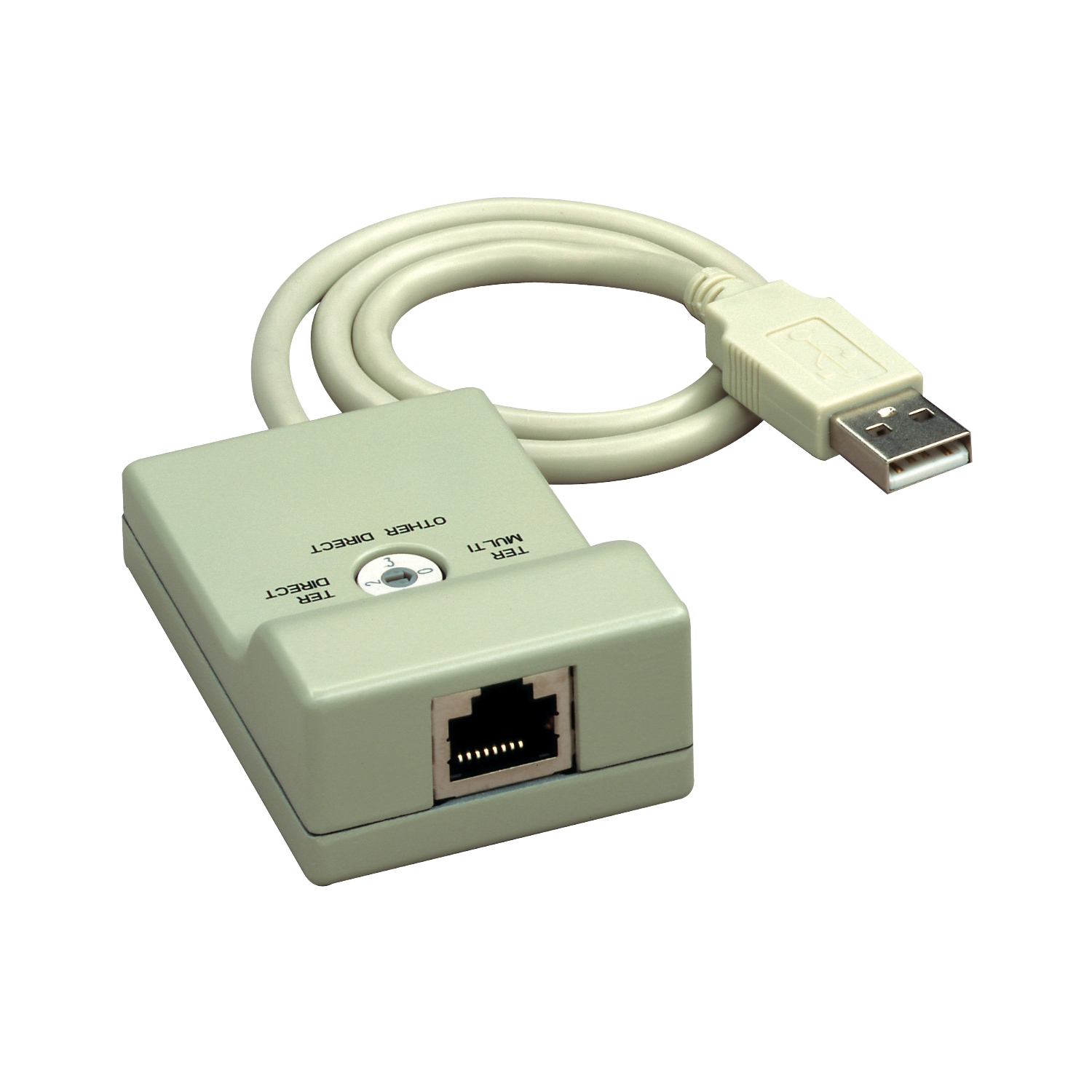

TSXCUSB485 connection cord set for PC terminal – for Atrium / Premium – 0.4 m

MXN $4,787.00 - (IVA Incluido) + Envío

Sin existencias

This cordset is part of the Twido range, an offer of base controllers. This connection cordset is suitable for PC terminal. It is furnished with RS485 connector for USB PC side and mini DIN connector for processor side. The length of this cable is 0.4m. It weighs 0.144kg. It is suitable for all potentially dangerous machines requiring protection for both the operator and the machine. It is compatible with Modicon Premium TSXP572./3, TSX Micro, Atrium TSXPCI5720/35, Premium TSXP570./1 and Tap junction TSXPACC01. The modular and configurable safety controller is able to monitor multiple safety functions on and around a machine protecting operators. Safety controllers are dedicated to safety applications requiring conformity up to performance level PL e/category 4 EN ISO 13849-1 and SIL3 EN/IEC 61508.

Categoría: PLC's

Etiqueta: PLC's

SKU: TSXCUSB485

connection cord set for PC terminal – for Atrium / Premium – 0.4 m

TSXCUSB485

Main
Accessory / separate part categor	Connection accessories
accessory / separate part type	Connecting cable
Accessory / separate part designation	Connection cordset for PC terminal
Accessory / separate part destination	Premium TSXP572./3. TSX Micro Atrium TSXPCI5720/35 Premium TSXP570./1. Tap junction TSXPACC01
Cable length	1.3 ft (0.4 m)

Complementary
Range Compatibility	Modicon Premium automation platform Modicon Atrium automation platform
Electrical connection	1 connector USB PC side RS485 1 connector mini DIN processor side
Net Weight	0.317 lb(US) (0.144 kg)

Ordering and shipping details
Category	US1PC4118225
Discount Schedule	PC41
GTIN	3595863884708
Returnability	Yes
Country of origin	CN

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	2.5 in (6.4 cm)
Package 1 Width	2.6 in (6.5 cm)
Package 1 Length	4.7 in (12 cm)
Package 1 Weight	7.0 oz (198 g)
