VW3A3204 additional output module, Altivar, relay output, 24 to 30V DC, 1 screw terminal

USD $252.10 - (IVA Incluido) + Envío

13 disponibles

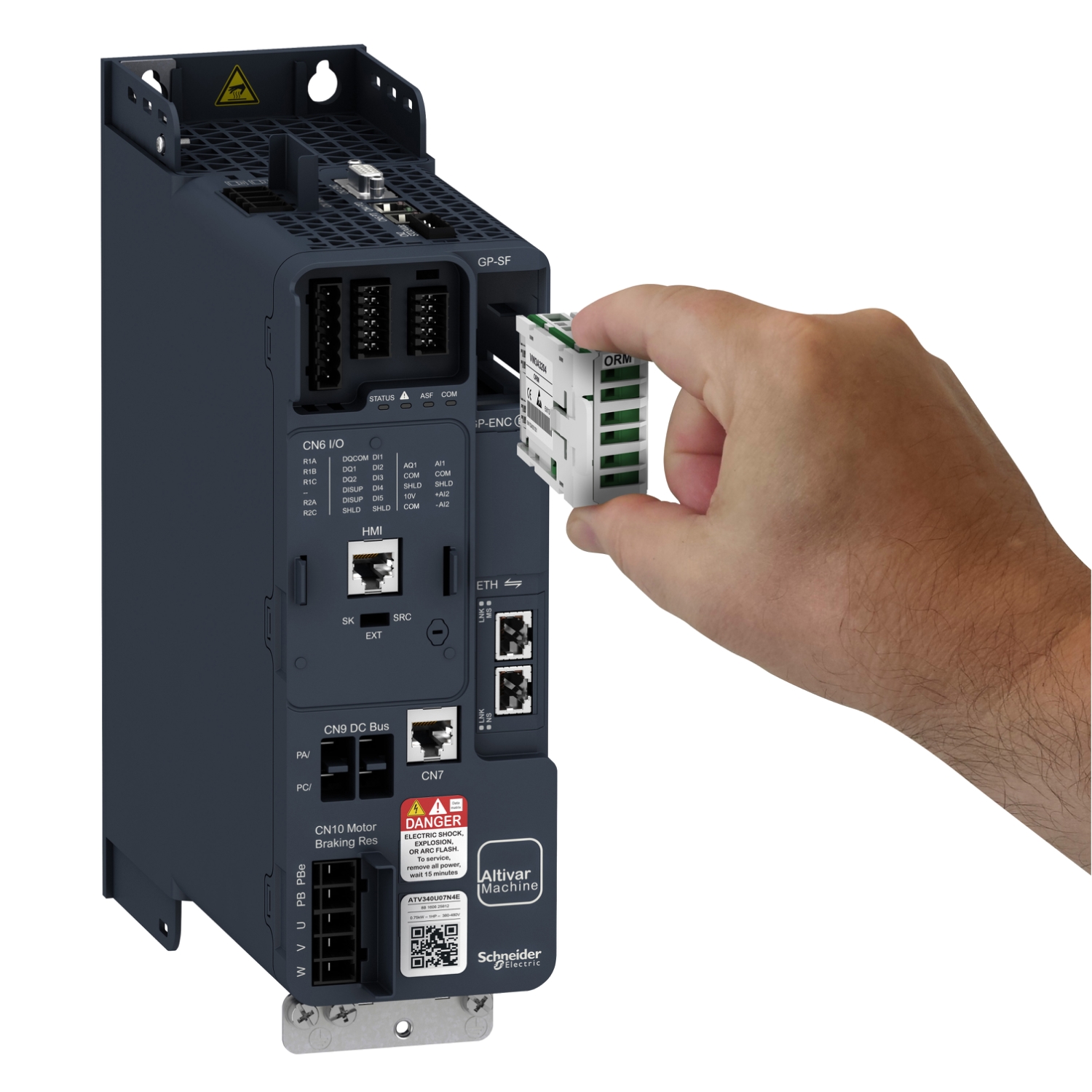

This extended module enables your drive to meet the needs of application that manage additional or specific sensors. It is simple to install and remove from Altivar drives thanks to its modular withdrawable design. It is compatible with Altivar Process ATV600, Altivar Process ATV900 and Altivar Machine ATV340. It is also compatible with Altivar Easy 610. It has one screw terminal block 1.5 mm² / AWG 16.

Comprar Ahora

additional output module, Altivar, relay output, 24 to 30V DC, 1 screw terminal

VW3A3204

Main
Product or Component Type	Additional output module
Range Compatibility	Altivar Machine ATV340 Easy Altivar 610 Altivar Process ATV900 Altivar Process ATV600
Input/Output Type	3 relay output
Discrete output number	3
Discrete output type	R4, R5, R6) relay normally open 1 ms

Complementary
Electrical durability	100000 cycles
Minimum switching current	5 mA 24 V DC
Maximum switching current	2 A 250 V AC inductive, cos phi = 0.4 5 ms 2 A 30 V DC inductive, cos phi = 0.4 5 ms 5 A 250 V AC resistive, cos phi = 1 5 ms 5 A 30 V DC resistive, cos phi = 1 5 ms
Electrical connection	Screw terminal block, 1.5 mm² / AWG 16, 4.43 lbf.in (0.5 N.m)
Net Weight	0.88 lb(US) (0.4 kg)

Ordering and shipping details
Category	US1CP4E22207
Discount Schedule	CP4E
GTIN	3606480702532
Returnability	Yes
Country of origin	ID

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	2.56 in (6.5 cm)
Package 1 Width	5.12 in (13.0 cm)
Package 1 Length	7.48 in (19.0 cm)
Package 1 Weight	5.36 oz (152.0 g)
Unit Type of Package 2	S03
Number of Units in Package 2	16
Package 2 Height	11.81 in (30.0 cm)
Package 2 Width	11.81 in (30.0 cm)
Package 2 Length	15.75 in (40.0 cm)
Package 2 Weight	6.87 lb(US) (3.114 kg)
