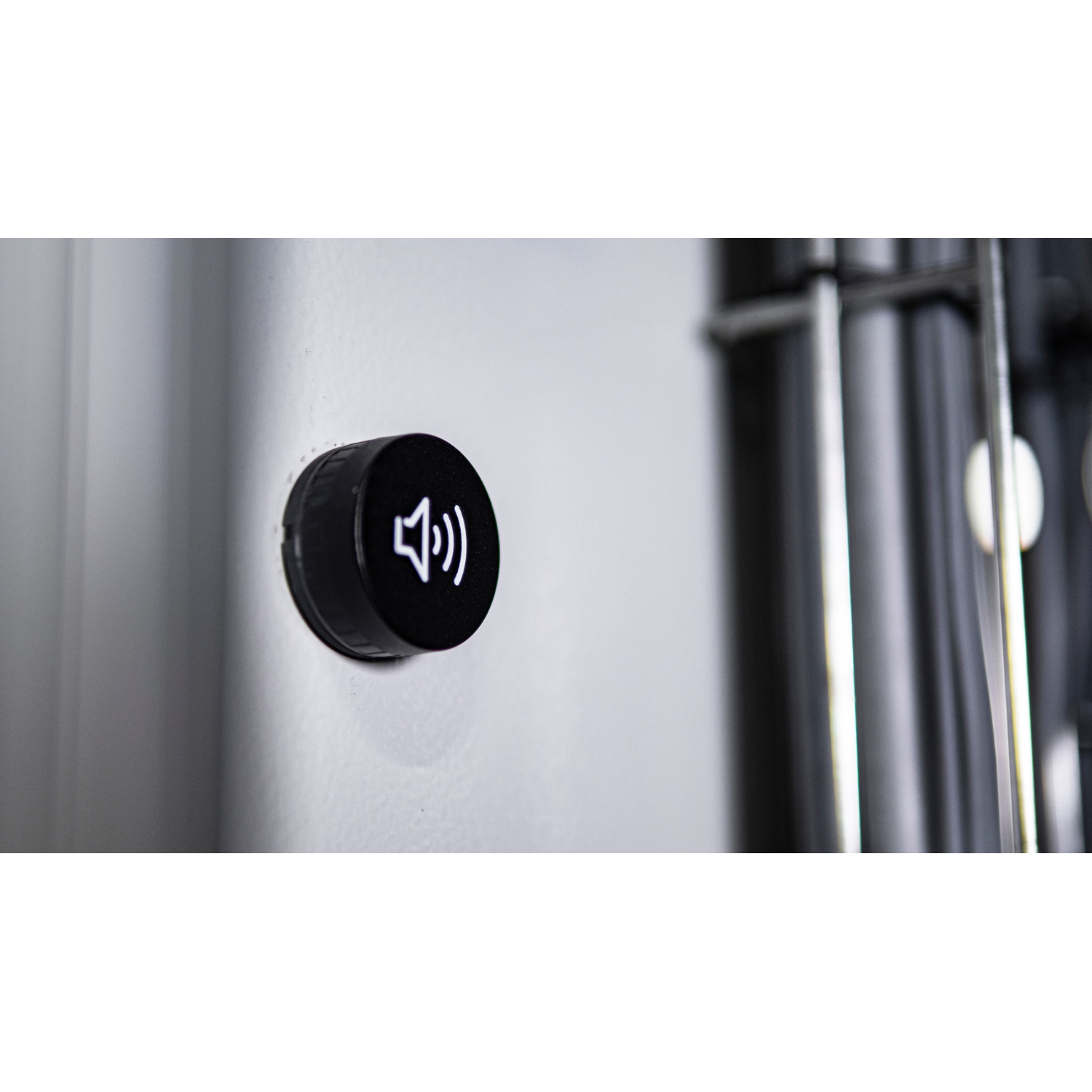

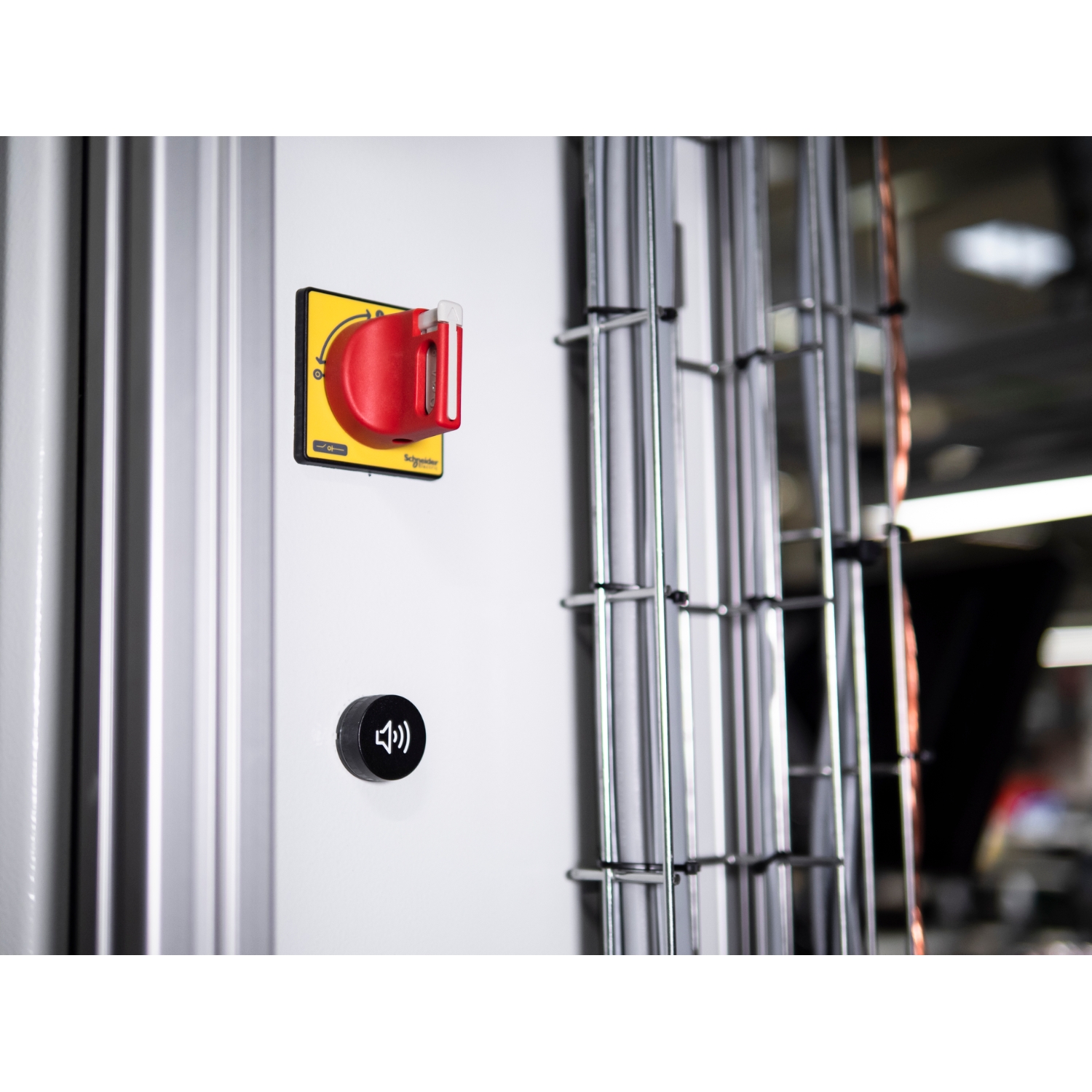

Annunciator, Harmony XB5, Complete buzzer, plastic, 22mm, continuous or intermittent tone, 24V AC DC
XB5KSB
| Range of Product | Harmony XB5 |
|---|---|
| Product or Component Type | Annunciator |
| Bezel material | Dark grey plastic |
| Mounting diameter | 0.9 in (22 mm) |
| Head type | Standard |
| Cap/operator or lens colour | Black |
| Supply circuit type | AC/DC |
|---|---|
| Supply frequency | 50/60 Hz |
| Signalling type | Continuous or intermittent tone |
| Noise level | 90 dB 6.8 kHz 0.1 m +/- 10 % |
| Resistance to high pressure washer | 1305.3 psi (9000000 Pa) 176 °F (80 °C) 0.1 m |
| Height | 1.1 in (29 mm) |
| Width | 1.1 in (29 mm) |
| Depth | 2.2 in (55 mm) |
| Net Weight | 0.053 lb(US) (0.024 kg) |
| Current Consumption | <= 28 mA |
| [Us] rated supply voltage | 24 V +/- 10 % |
| protective treatment | TH |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Overvoltage category | Class II IEC 60536 |
| Electrical shock protection class | Class II IEC 60536 |
| NEMA Degree of Protection | NEMA 4X NEMA 13 |
| Standards | IEC 60947-5-1 IEC 60947-1 IEC 60947-5-1 IEC 60947-5-4 CSA C22.2 No 14 IEC 60947-5-4 IEC 60947-1 UL 508 JIS C8201-5-1 JIS C8201-1 IEC 60529 IEC 62262 IEC 50102 |
| Product Certifications | UL Listed CSA BV |
| Category | US10CS222467 |
|---|---|
| Discount Schedule | 0CS2 |
| GTIN | 3389110102666 |
| Returnability | Yes |
| Country of origin | DE |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.102 in (2.800 cm) |
| Package 1 Width | 1.181 in (3.000 cm) |
| Package 1 Length | 2.126 in (5.400 cm) |
| Package 1 Weight | 1.0 oz (28 g) |
| Unit Type of Package 2 | S01 |
| Number of Units in Package 2 | 88 |
| Package 2 Height | 5.906 in (15.000 cm) |
| Package 2 Width | 5.906 in (15.000 cm) |
| Package 2 Length | 15.748 in (40.000 cm) |
| Package 2 Weight | 5.944 lb(US) (2.696 kg) |
| Warranty | 18 months |
|---|
