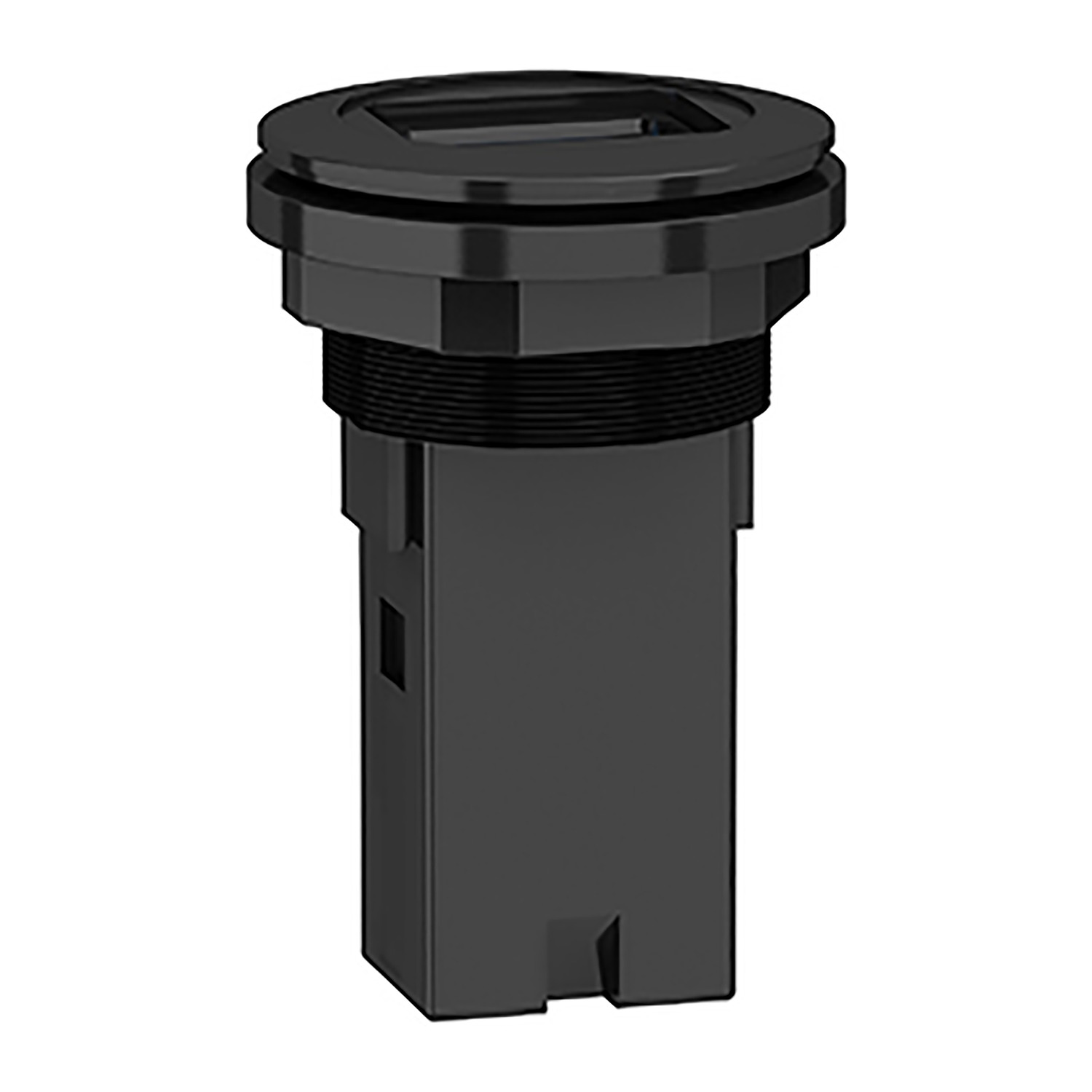

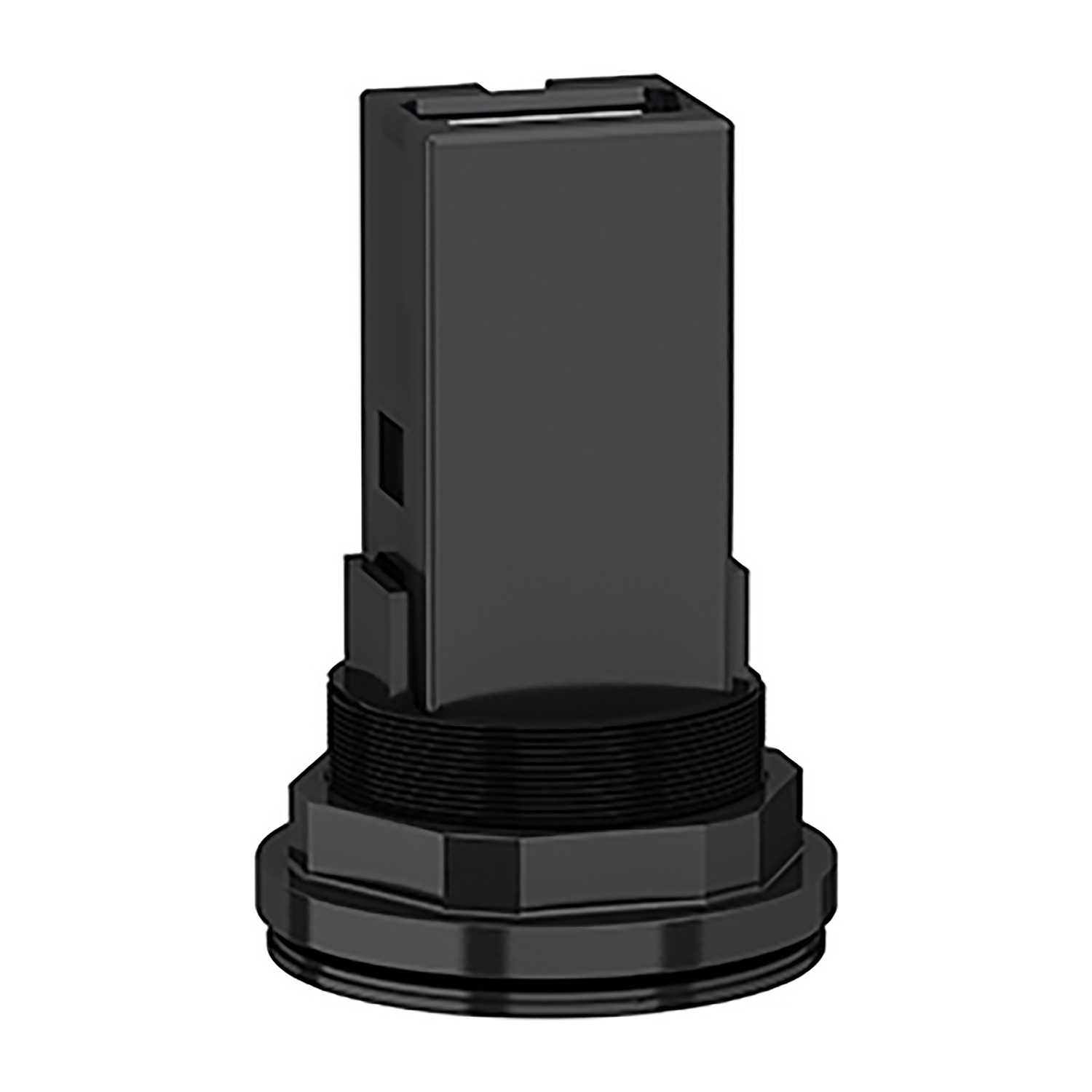

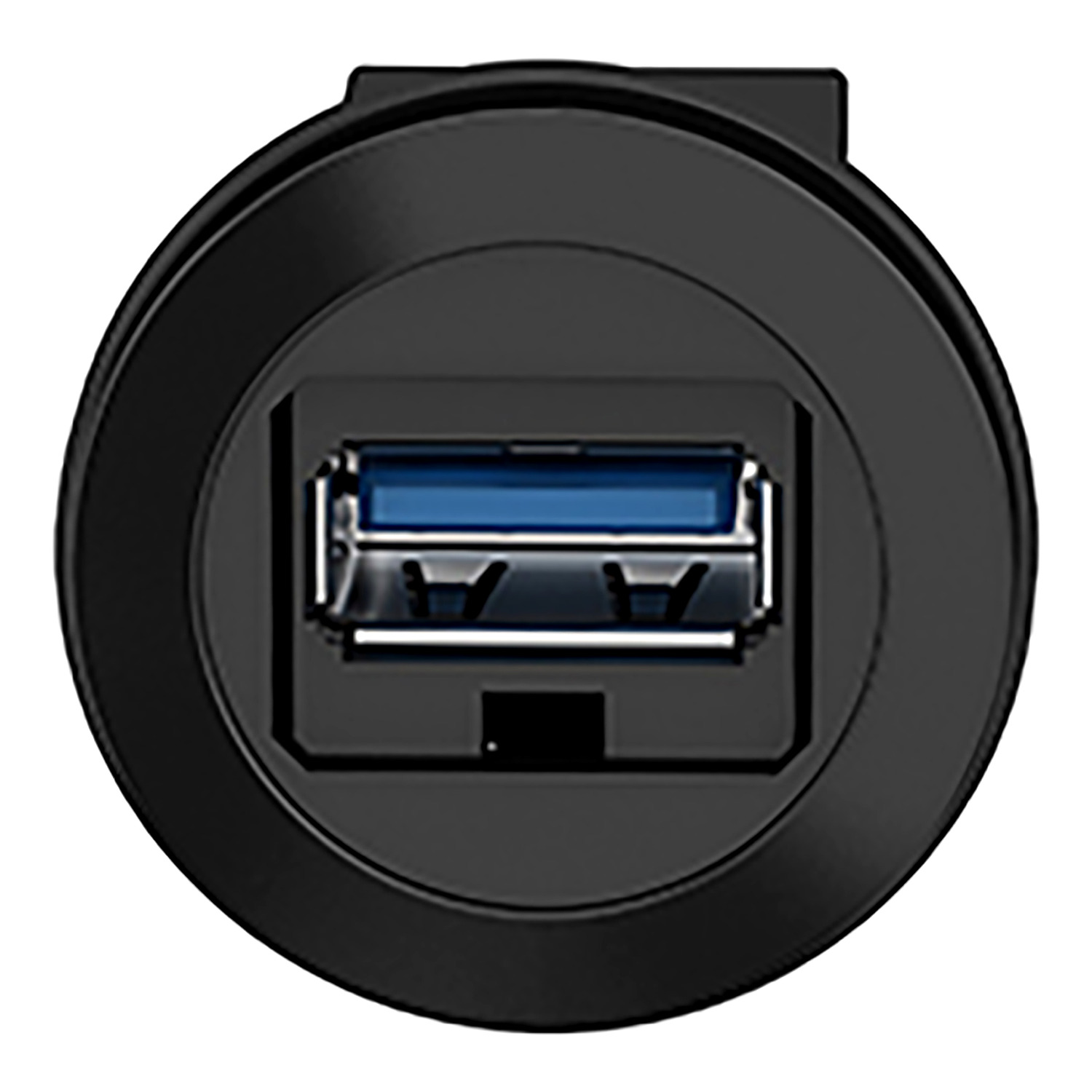

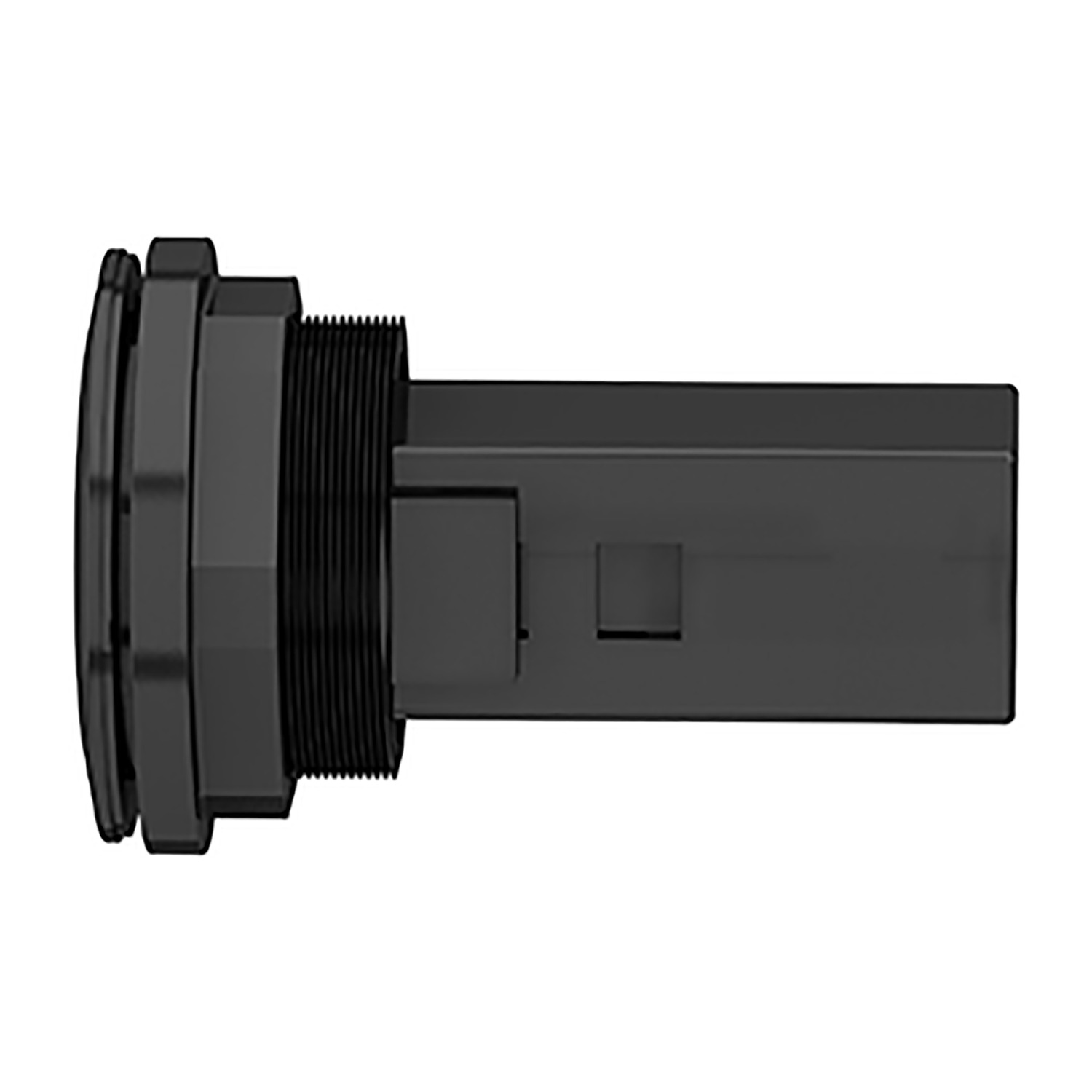

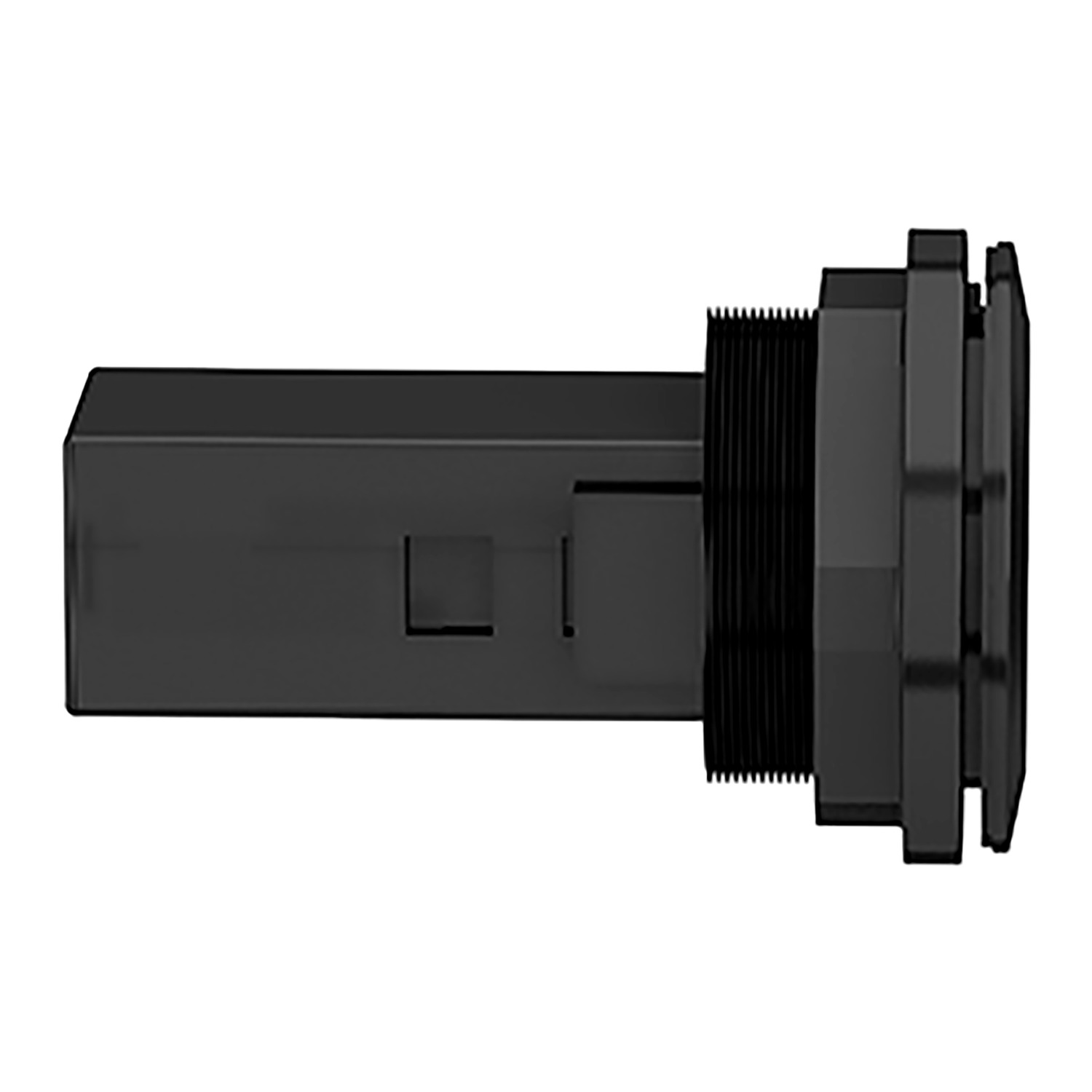

Panel mounted USB port, Harmony XB5, 3.0 port, plastic, 22mm, for USB interface jack type A
XB5PUSB3
| Range of Product | Harmony XB5 |
|---|---|
| Product or Component Type | Panel mounted USB port |
| Device short name | XB5P |
| Sale per indivisible quantity | 1 |
|---|---|
| Mounting diameter | 0.9 in (22 mm) |
| Thickness | 0.2 in (6 mm) without protection cover 0.06…0.2 in (1.5…5 mm) with protection cover plastic 0.06…0.2 in (1.5…5 mm) with protection cover rigid plastic 0.06…0.10 in (1.5…2.5 mm) with protection cover metal |
| Bezel material | Plastic |
| Fixing collar material | Plastic |
| Integrated connection type | USB 3.0 type A |
| Minimum number of matings | 1500 cycles |
| IP degree of protection | IP20 front: conforming to IEC 60529 IP20 back: conforming to IEC 60529 |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Tightening torque | 13.3 lbf.in (1.5 N.m) |
| Vibration resistance | 5.35 gn15 min per axis |
| Shock resistance | 30 gn 11 ms 3 chocks in each direction X, Y and Z |
| Standards | USB 3.0 |
| Product Certifications | CSA UL Listed |
| Height | 1.1 in (28 mm) |
| Width | 1.1 in (28 mm) |
| Depth | 1.7 in (44 mm) |
| Net Weight | 0.0373 lb(US) (0.0169 kg) |
| Category | US10CS200028 |
|---|---|
| Discount Schedule | 0CS2 |
| GTIN | 3606481194206 |
| Returnability | Yes |
| Country of origin | DE |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.260 in (3.200 cm) |
| Package 1 Width | 1.969 in (5.000 cm) |
| Package 1 Length | 3.386 in (8.600 cm) |
| Package 1 Weight | 0.529 oz (15.000 g) |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 100 |
| Package 2 Height | 5.906 in (15.000 cm) |
| Package 2 Width | 11.811 in (30.000 cm) |
| Package 2 Length | 15.748 in (40.000 cm) |
| Package 2 Weight | 4.057 lb(US) (1.840 kg) |
