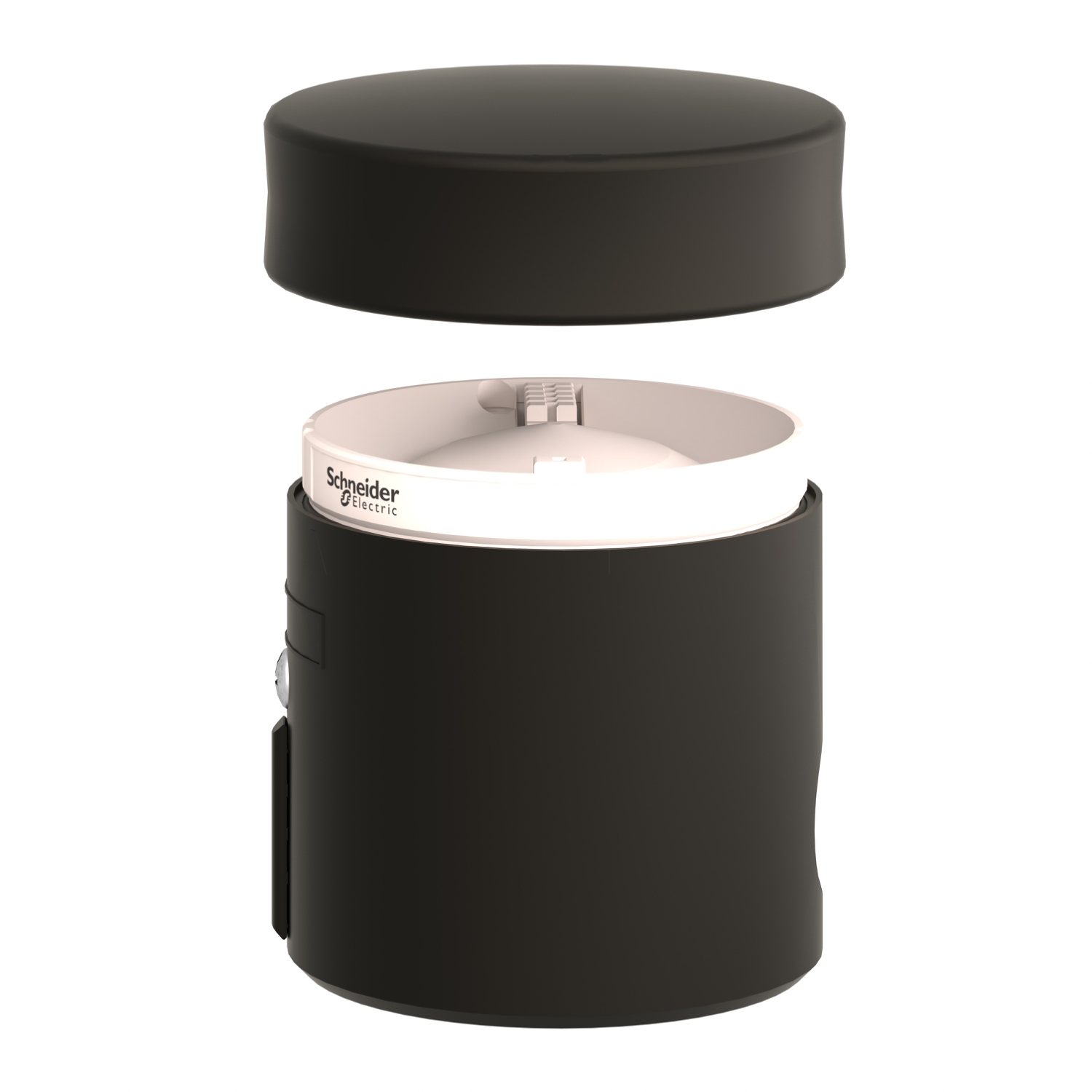

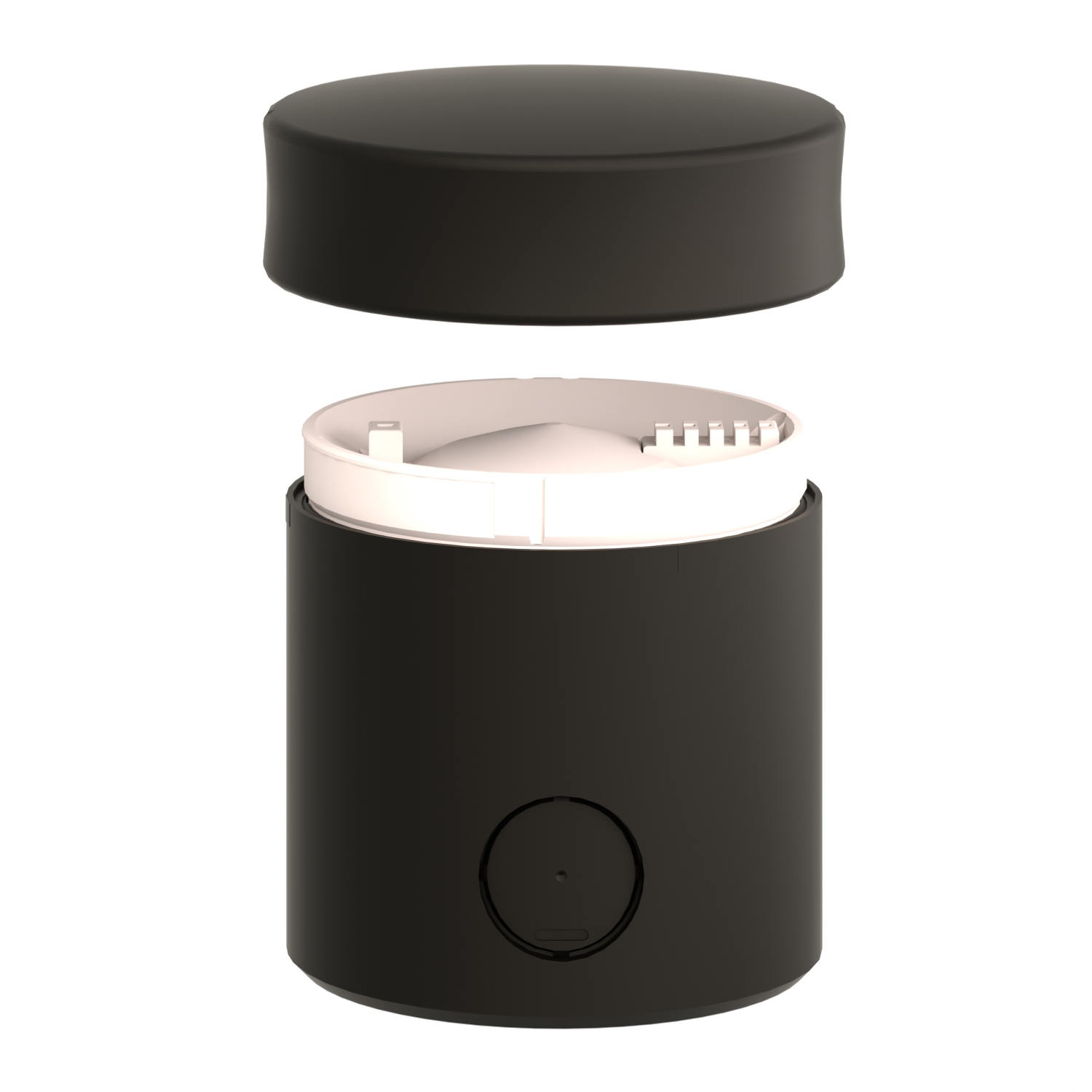

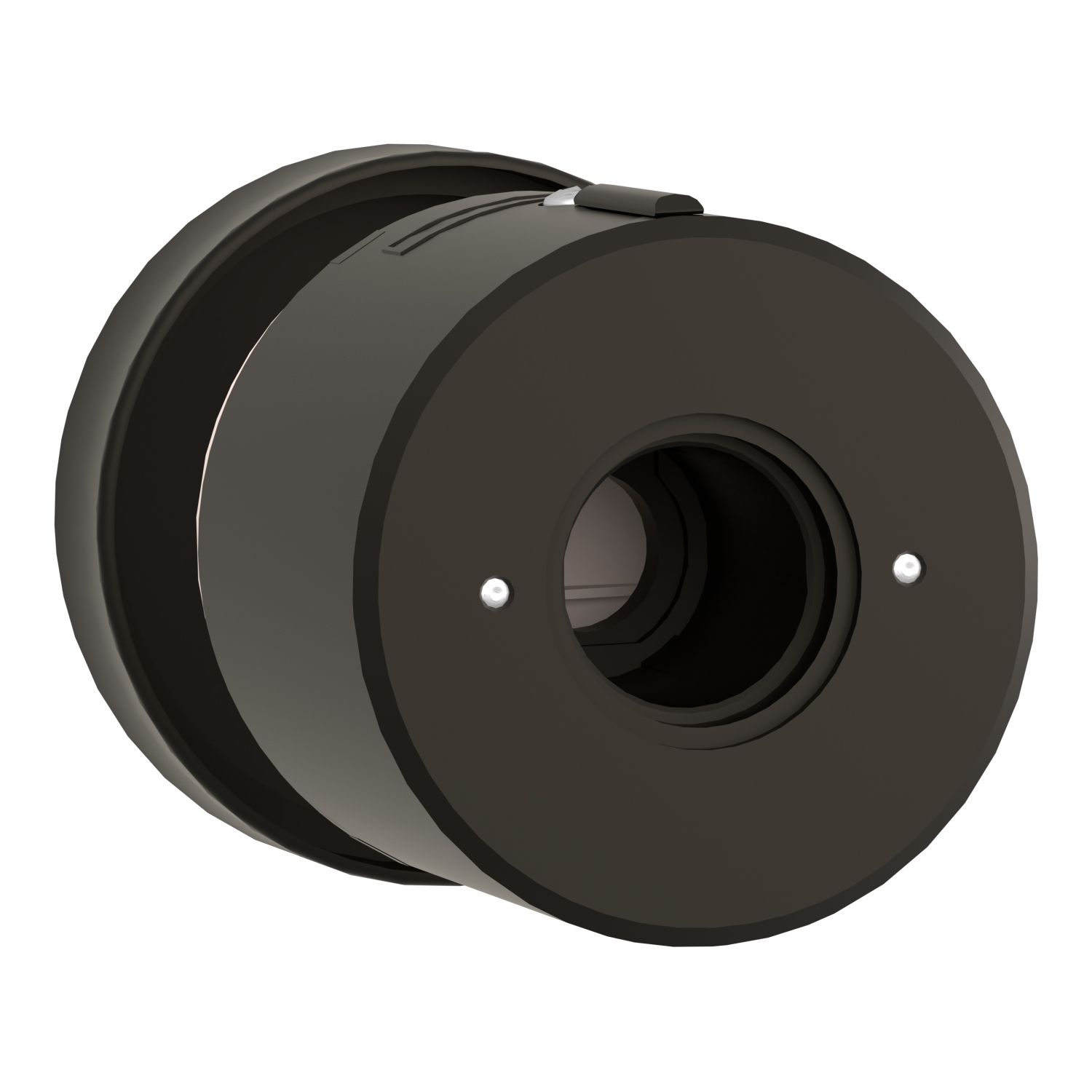

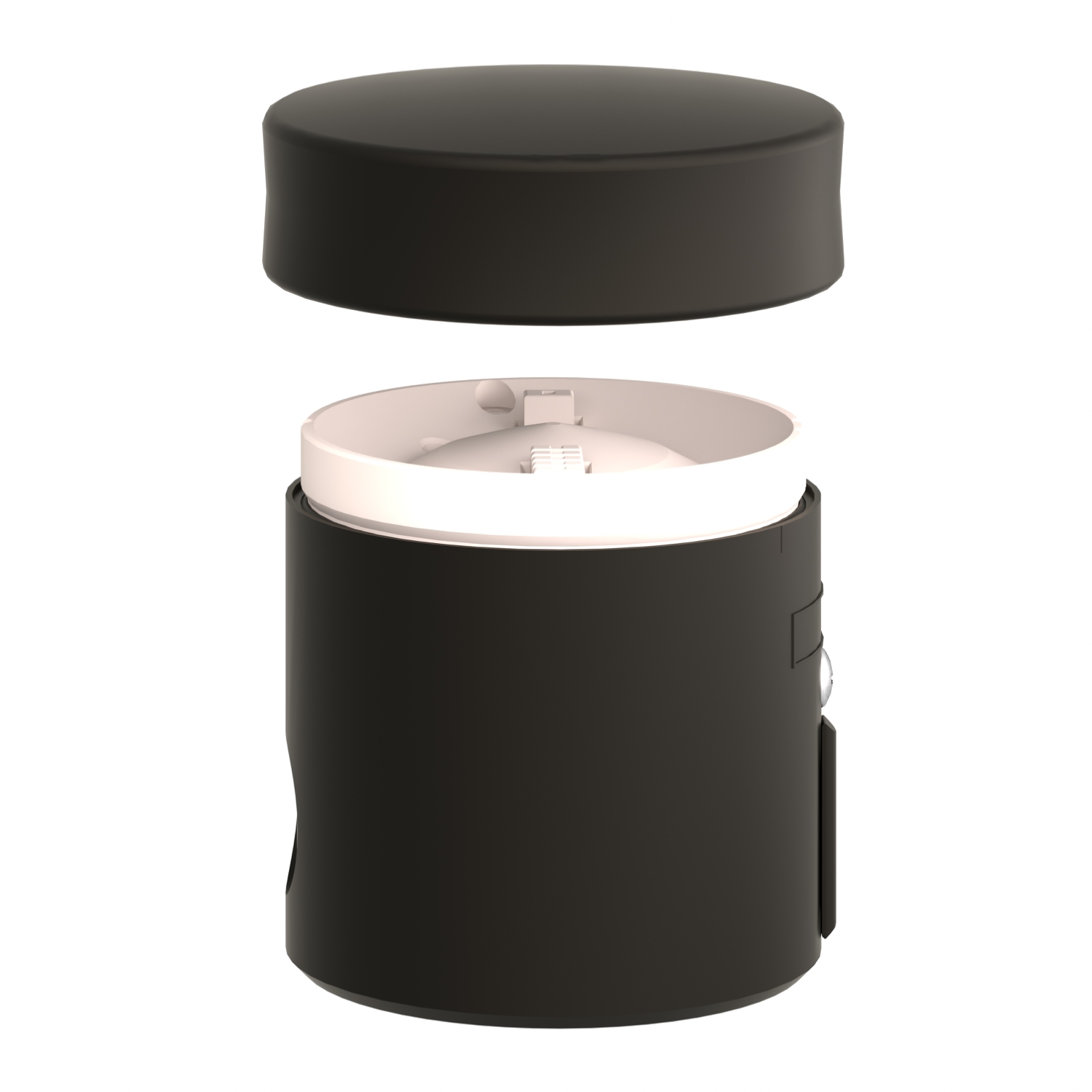

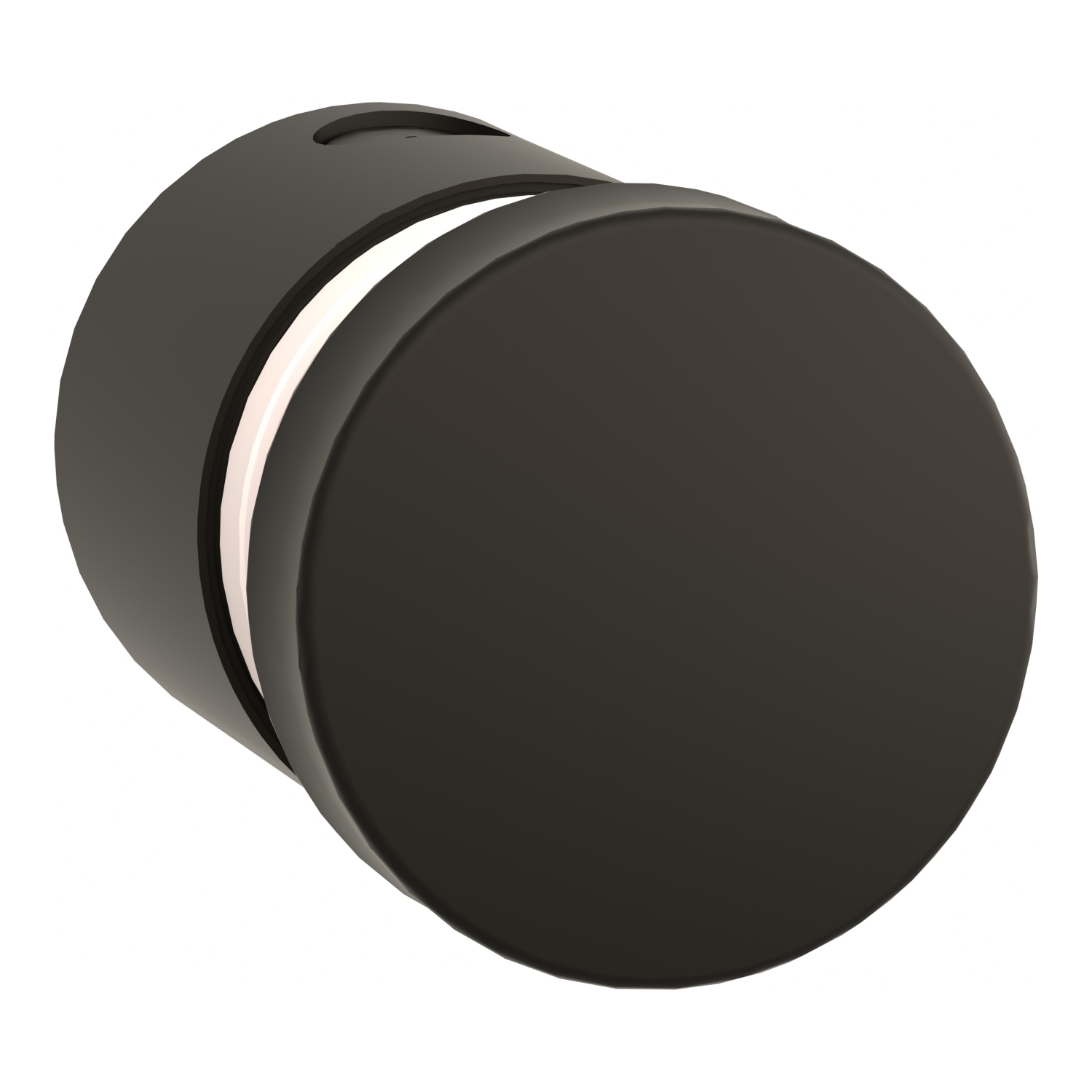

XVBC21A, Base unit with cover, Harmony XVB Universal, side cable entry, plastic, black, 70mm, AS-Interface connection

USD $452.93 - (IVA Incluido) + Envío

9 disponibles

This base unit is designed to be fitted with indicator bank to create complete tower light and allow clear display of the status of your machines. It is made of glass reinforced polyamide material and it allows the cable to entry from the side. It complies with EN/IEC 60947-5-1, EN/IEC 60068-2-27, UL 508, CSA, AS-Interface No 25701 standards with NEMA 4X protection.

Comprar Ahora

Categoría: Tower Lights

Etiqueta: Tower Lights

SKU: XVBC21A

Base unit with cover, Harmony XVB Universal, side cable entry, plastic, black, 70mm, AS-Interface connection

XVBC21A

Main
Range of Product	Harmony XVB Universal
Product or Component Type	Base unit with cover
Component name	XVBC

Complementary
Range Compatibility	AS-Interface cabling system
Material	Glass reinforced polyamide: base unit Polycarbonate: cover unit
Mounting diameter	2.8 in (70 mm)
[Us] rated supply voltage	External 19.2…30 V AS-Interface line 24…31.6 V
Current consumption	250 mA under load via AS-Interface line 30 mA under load external 30 mA no load
Actuator sensor interface profile [AS-i]	S.7.F
Electrical connection	1 connector M12 AS-Interface line
Cable entry	Side entry
Assembly style	Customer assembly, up to 5 units
[Ui] rated insulation voltage	250 V IEC 60947-1
[Uimp] rated impulse withstand voltage	4 kV IEC 60947-1
Terminals description ISO n°1	(COM-5)PW (COM-1)PW (COM-4)PW (COM-3)PW (GND)GROUND (COM-2)PW
Net Weight	0.42 lb(US) (0.19 kg)

Environment
Product Certifications	AS-Interface No 25701 CSA
Standards	EN/IEC 60947-5-1
protective treatment	TC
Ambient Air Temperature for Storage	-4…158 °F (-20…70 °C)
Ambient Air Temperature for Operation	14…122 °F (-10…50 °C)
Shock resistance	25 gn IEC 60068-2-27
Vibration resistance	5 gn IEC 60068-2-6
Overvoltage category	Class I IEC 60536
IP degree of protection	IP65 conforming to IEC 60529
NEMA degree of protection	NEMA 4X UL 508 indoor)

Ordering and shipping details
Category	US1SPX218325
Discount Schedule	SPX2
GTIN	3389110845044
Returnability	Yes
Country of origin	FR

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	3.6 in (9.2 cm)
Package 1 Width	3.07 in (7.8 cm)
Package 1 Length	3.07 in (7.8 cm)
Package 1 Weight	8.4 oz (238.0 g)
Unit Type of Package 2	S03
Number of Units in Package 2	36
Package 2 Height	11.8 in (30.0 cm)
Package 2 Width	11.8 in (30.0 cm)
Package 2 Length	15.7 in (40.0 cm)
Package 2 Weight	20.016 lb(US) (9.079 kg)
