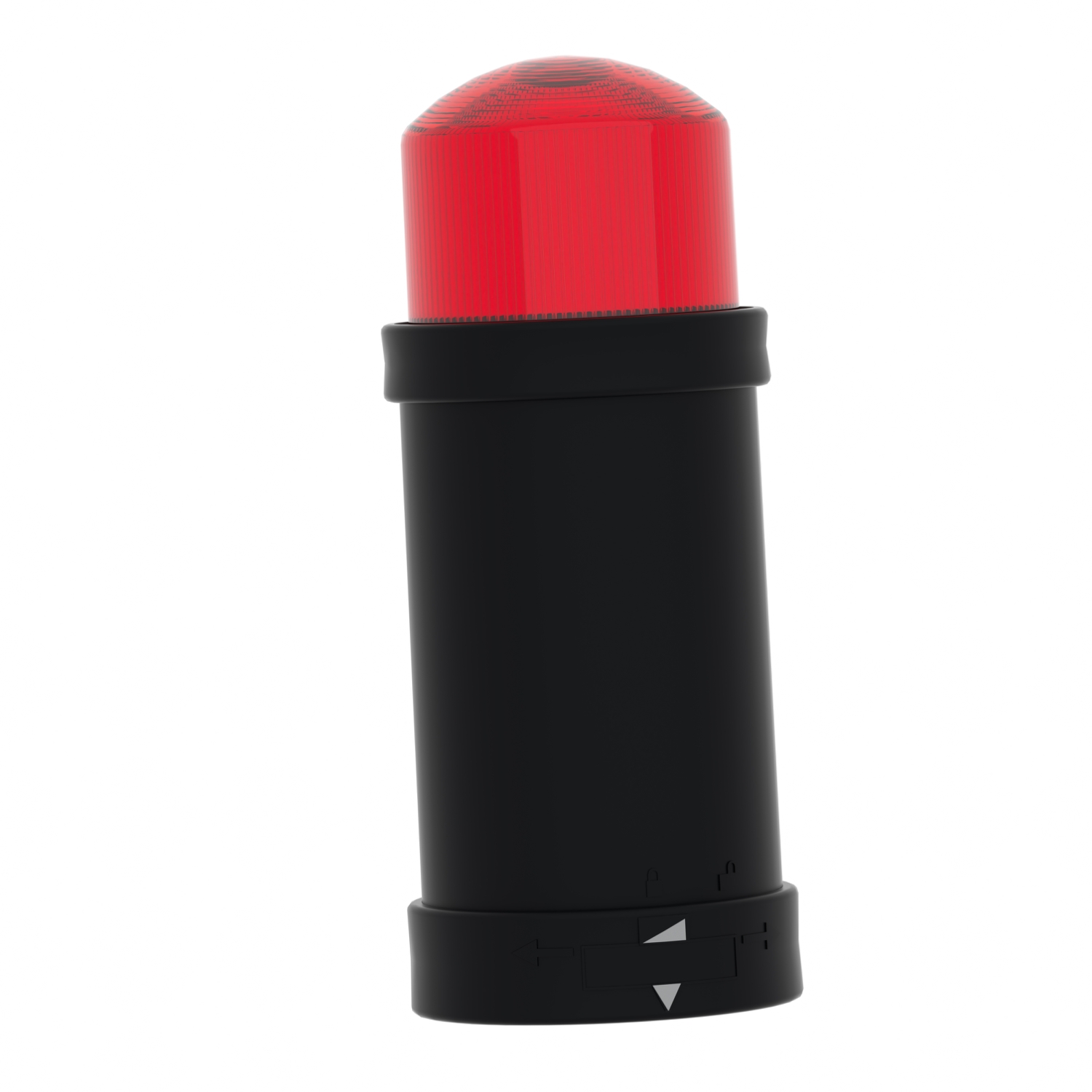

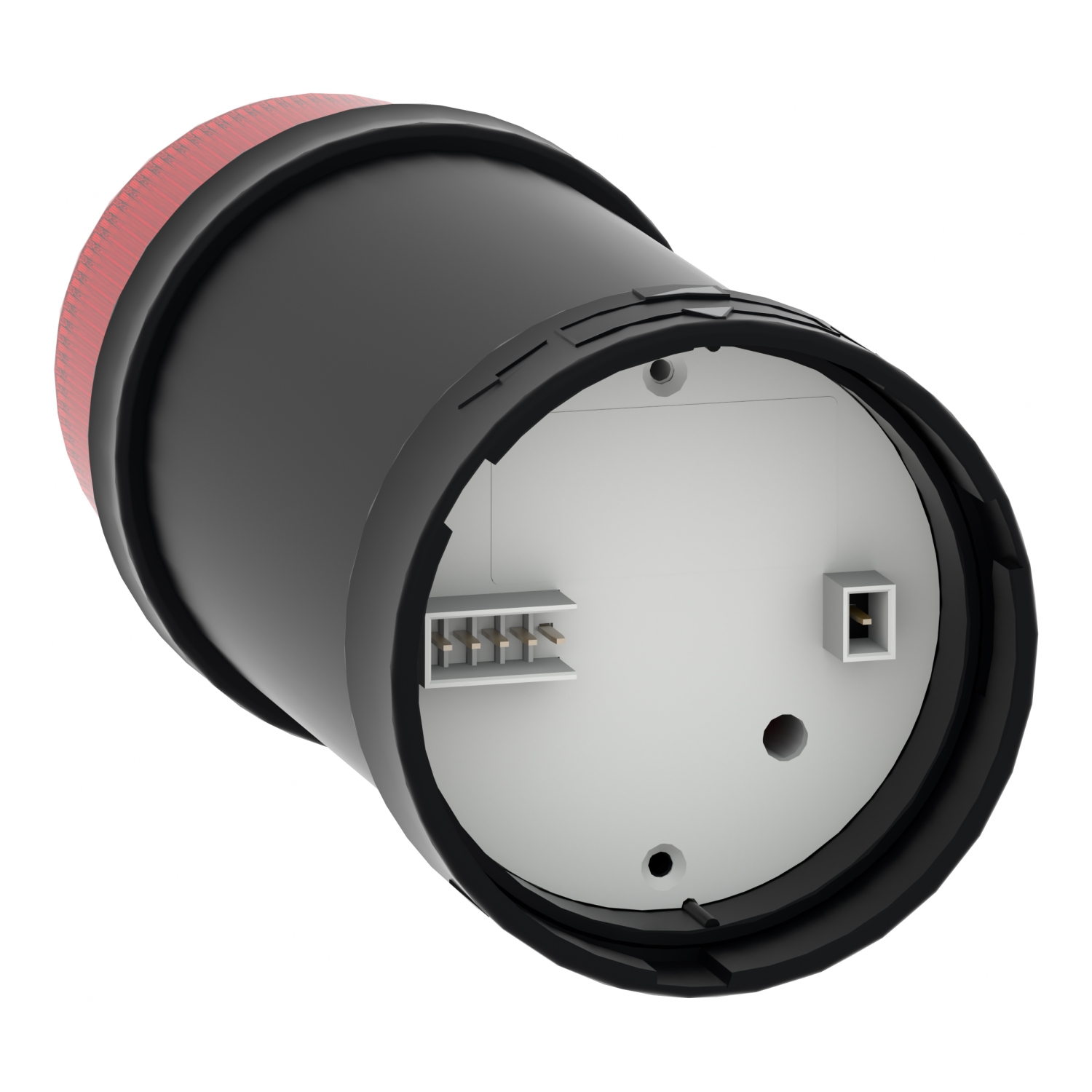

Indicator bank, Harmony XVB, illuminated unit, plastic, red, 70mm, integral flash discharge tube, 5joule, 24V AC/DC
XVBC6B4
Range of Product | Harmony XVB Universal |
---|---|
Product or Component Type | Indicator bank |
Beacon or indicator bank unit type | Illuminated unit |
Signalling type | Flashing |
Mounting diameter | 2.8 in (70 mm) |
Component name | XVBC |
Material | Polycarbonate |
Light source | Integral flash discharge tube, red |
Bulb type | Flash discharge tube |
[Us] rated supply voltage | 24 V AC/DC |
Flash energy | 5 J |
Assembly style | Customer assembly, up to 5 units |
---|---|
Connections – terminals | Screw clamp terminals, <= 1 x 1.5 mm² with cable end |
[Ui] rated insulation voltage | 250 V IEC 60947-1 |
Nominal voltage limit | 0.85…1.1 Un IEC 60947-5-1 |
Current consumption | < 350 mA DC < 550 mA AC |
[Uimp] rated impulse withstand voltage | 4 kV IEC 60947-1 |
Flashing frequency | 1 Hz |
CAD overall width | 2.8 in (70 mm) |
CAD overall height | 6.2 in (157 mm) |
CAD overall depth | 2.8 in (70 mm) |
Net Weight | 0.650 lb(US) (0.295 kg) |
Product Certifications | CCC EAC CSA C22-2 No 14 UL 508 |
---|---|
Standards | EN/IEC 60947-5-1 |
protective treatment | TC |
Ambient Air Temperature for Storage | -40.0000000000…158.0000000000 °F (-40…70 °C) |
Electrical shock protection class | Class I on support tube IEC 61140 Class II on base unit IEC 61140 |
IP degree of protection | IP65 on fixing base XVBZ0. IEC 60529 IP66 on base unit IEC 60529 |
NEMA degree of protection | Type 4X UL indoor) |
Category | US100XV22611 |
---|---|
Discount Schedule | 00XV |
GTIN | 3389110845617 |
Returnability | No |
Country of origin | FR |
Unit Type of Package 1 | PCE |
---|---|
Number of Units in Package 1 | 1 |
Package 1 Height | 3.1 in (8.0 cm) |
Package 1 Width | 3.1 in (8.0 cm) |
Package 1 Length | 7.6 in (19.2 cm) |
Package 1 Weight | 10.4 oz (295.0 g) |
Unit Type of Package 2 | S03 |
Number of Units in Package 2 | 12 |
Package 2 Height | 11.8 in (30.0 cm) |
Package 2 Width | 11.8 in (30.0 cm) |
Package 2 Length | 15.7 in (40.0 cm) |
Package 2 Weight | 8.830 lb(US) (4.005 kg) |
Warranty | 18 months |
---|
