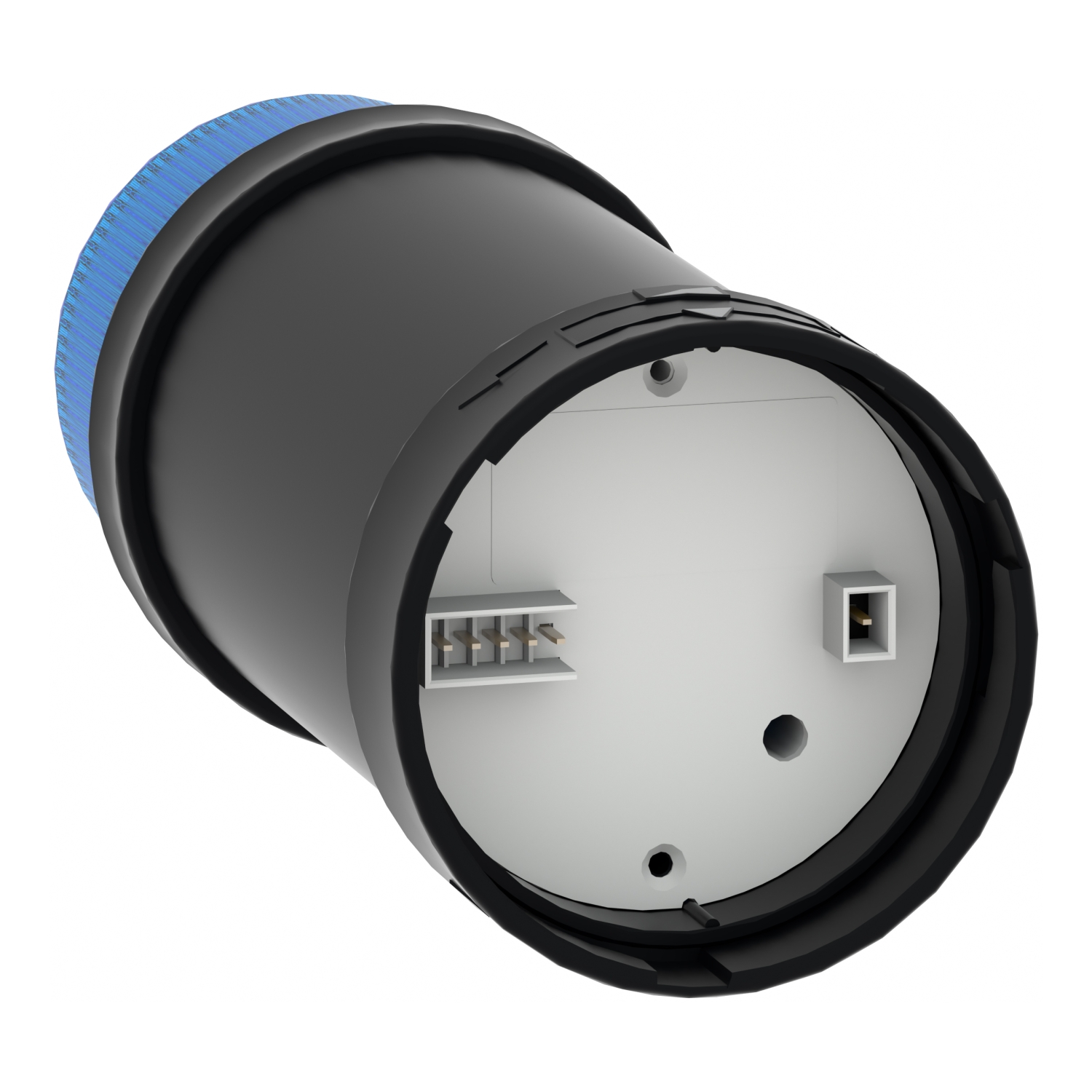

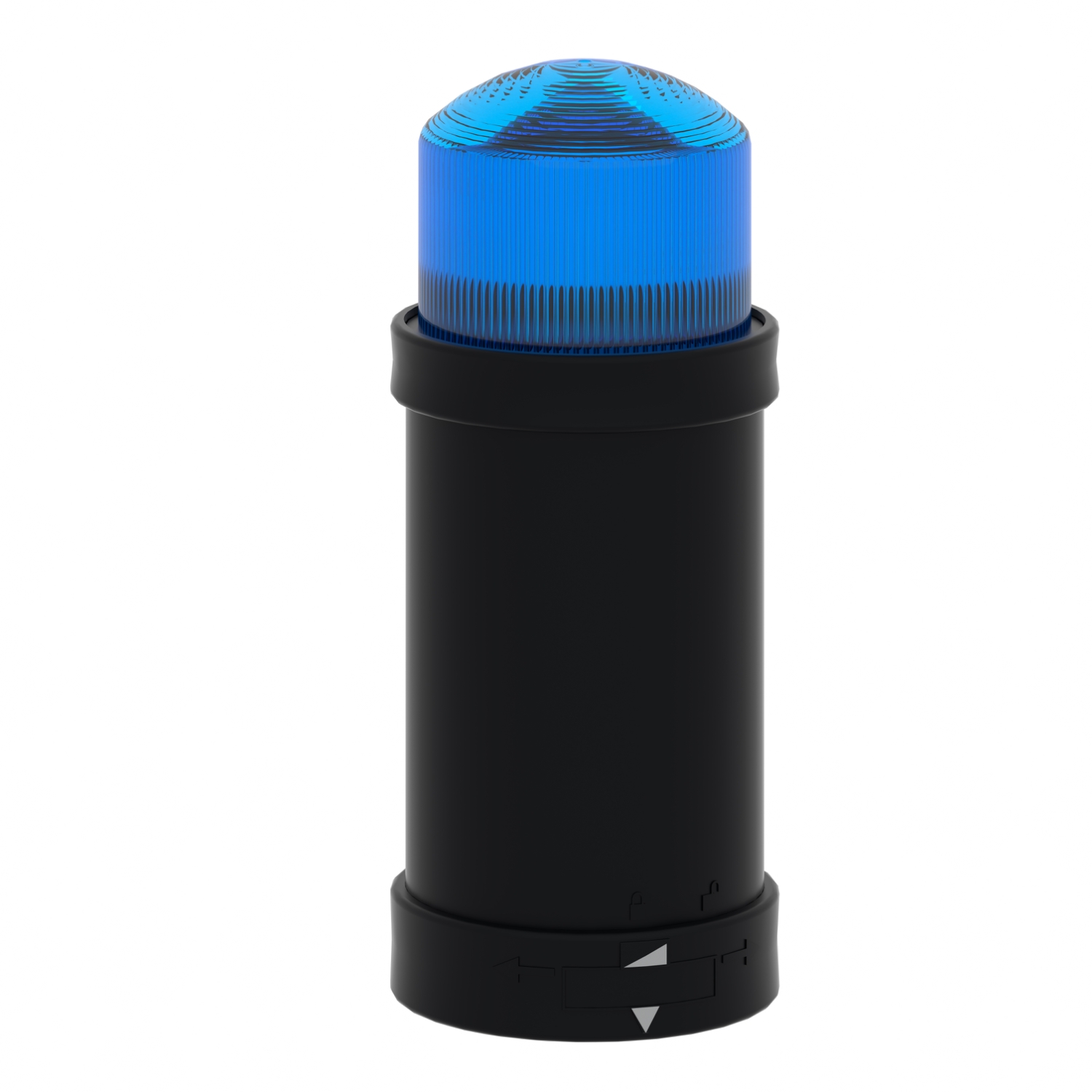

Illuminated unit for modular tower lights, plastic, blue, Ø70, integral “flash” discharge tube, 5 joule, 120 V AC
XVBC6G6
| Range of Product | Harmony XVB Universal |
|---|---|
| Product or Component Type | Indicator bank |
| Beacon or indicator bank unit type | Illuminated unit |
| Signalling type | Flashing |
| Mounting diameter | 2.8 in (70 mm) |
| Component name | XVBC |
| Material | Polycarbonate |
| Light source | Integral flash discharge tube, blue |
| Bulb type | Flash discharge tube |
| [Us] rated supply voltage | 120 V AC |
| Flash energy | 5 J |
| Assembly style | Customer assembly, up to 5 units |
|---|---|
| Connections – terminals | Screw clamp terminals, <= 1 x 1.5 mm² with cable end |
| [Ui] rated insulation voltage | 250 V IEC 60947-1 |
| Nominal voltage limit | 0.85…1.1 Un IEC 60947-5-1 |
| Current consumption | < 140 mA AC |
| [Uimp] rated impulse withstand voltage | 4 kV IEC 60947-1 |
| Flashing frequency | 1 Hz |
| CAD overall width | 2.8 in (70 mm) |
| CAD overall height | 6.2 in (157 mm) |
| CAD overall depth | 2.8 in (70 mm) |
| Net Weight | 0.62 lb(US) (0.28 kg) |
| Product Certifications | CCC EAC CSA C22-2 No 14 UL 508 |
|---|---|
| Standards | EN/IEC 60947-5-1 |
| protective treatment | TC |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Electrical shock protection class | Class I on support tube IEC 61140 Class II on base unit IEC 61140 |
| IP degree of protection | IP65 on fixing base XVBZ0. IEC 60529 IP66 on base unit IEC 60529 |
| NEMA degree of protection | Type 4X UL indoor) |
| Category | US100XV22611 |
|---|---|
| Discount Schedule | 00XV |
| GTIN | 3389110845754 |
| Returnability | No |
| Country of origin | CZ |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.1 in (8 cm) |
| Package 1 Width | 3.1 in (8 cm) |
| Package 1 Length | 7.4 in (18.7 cm) |
| Package 1 Weight | 9.63 oz (273 g) |
| Warranty | 18 months |
|---|
