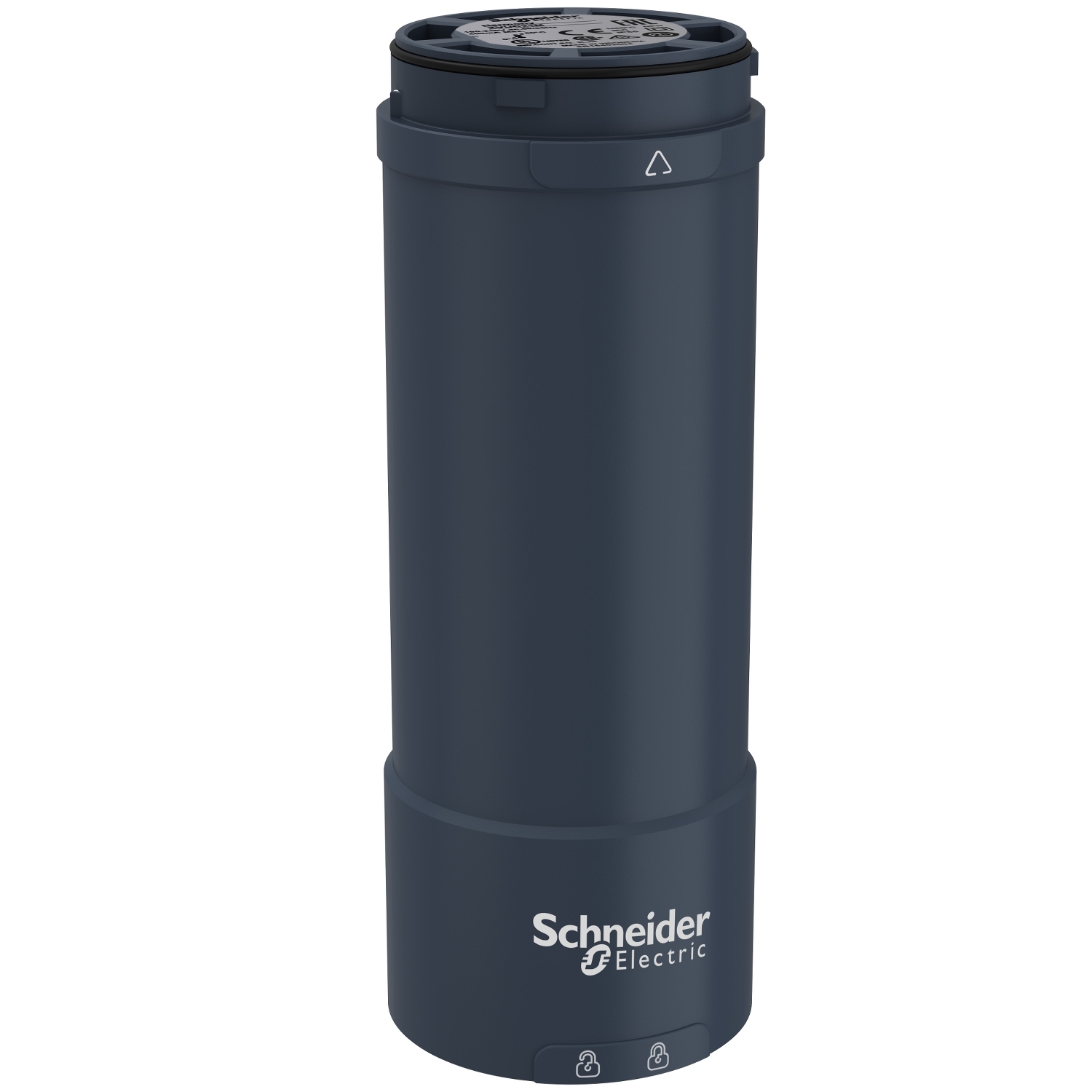

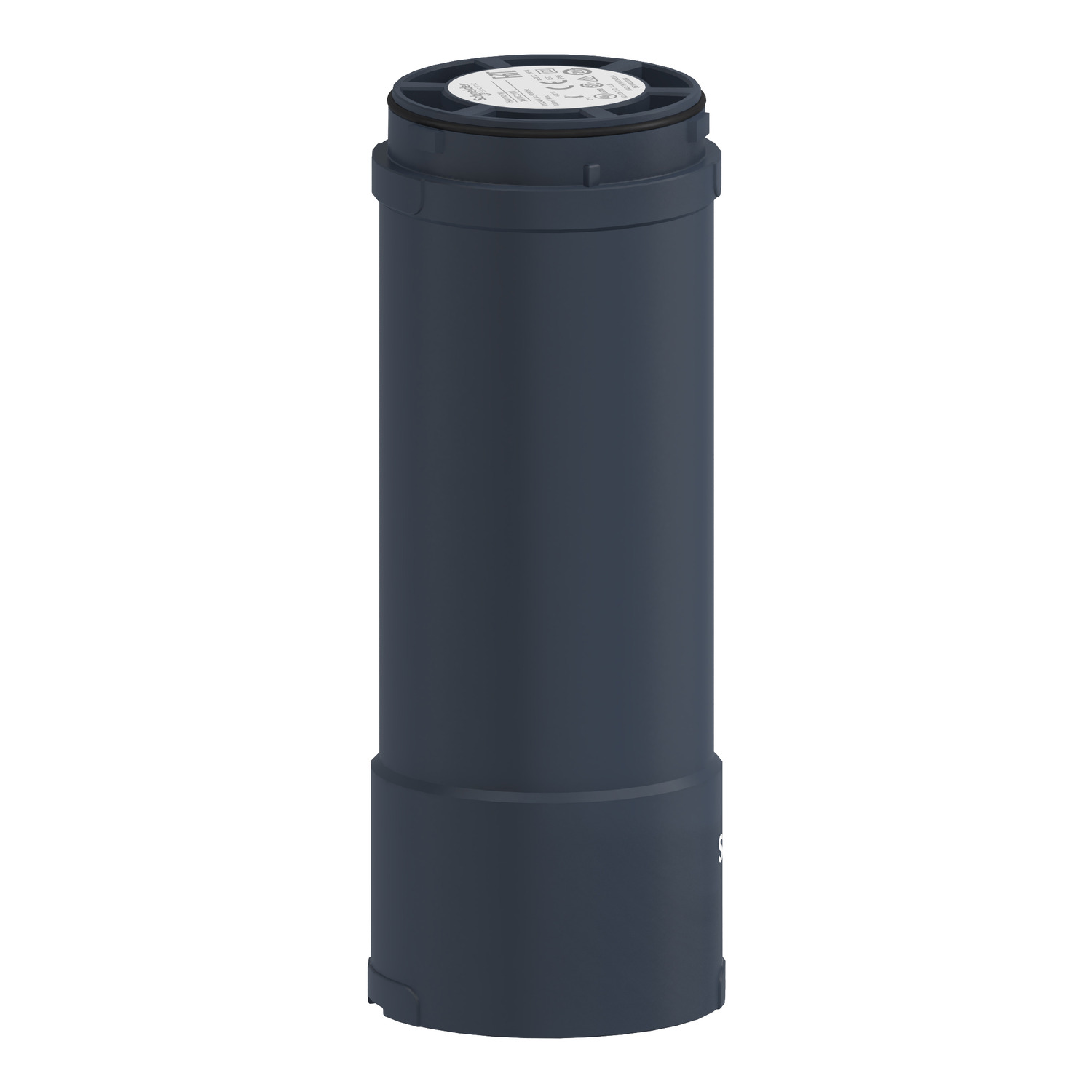

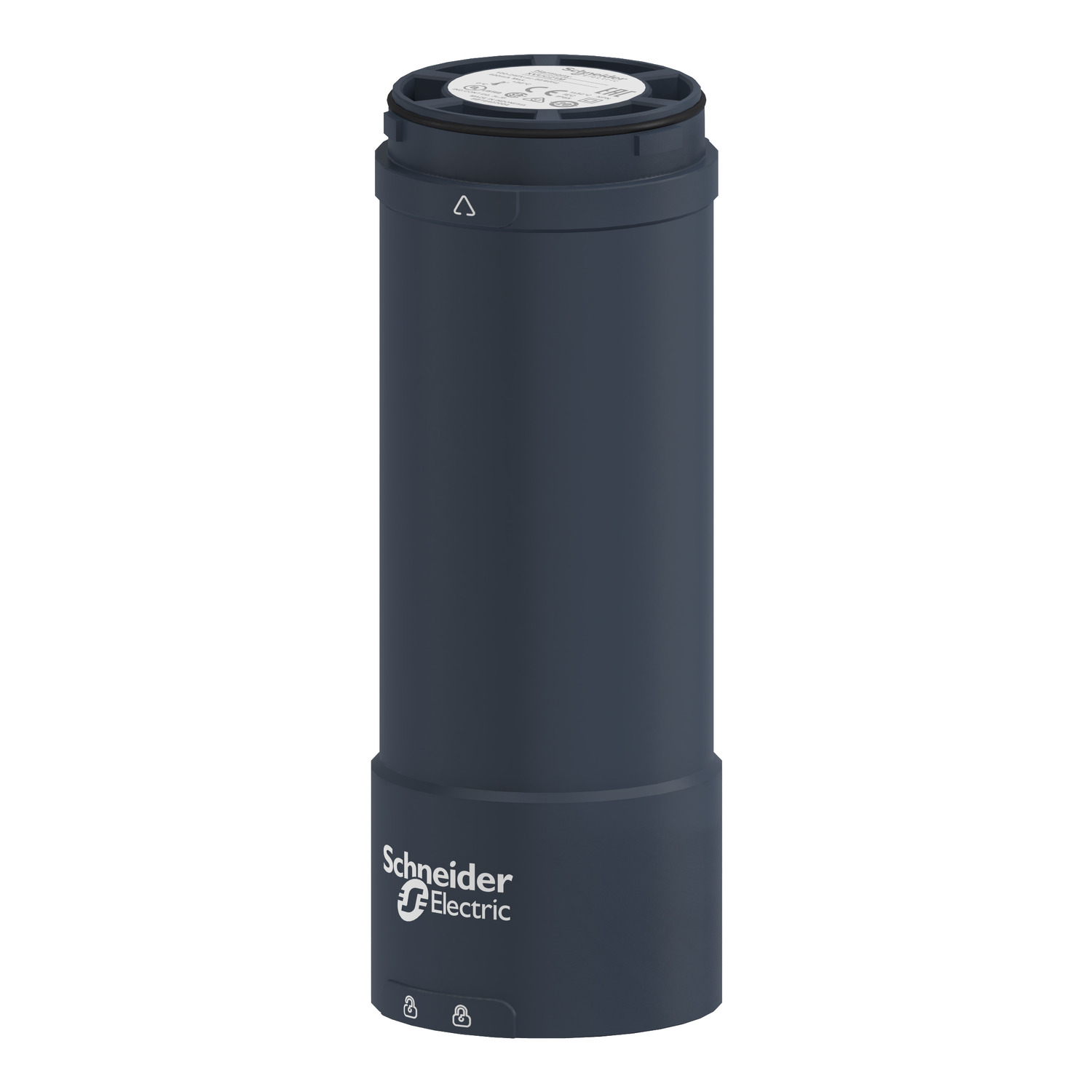

XVUC21M, Base unit with top cover for modular tower lights, Harmony XVU, black, 60mm, NPN, 100…240V AC

MXN $2,043.00 - (IVA Incluido) + Envío

25 disponibles

This Harmony XVU black base unit with top cover is supplied with 100-240V AC and has a diameter of 60mm. This black base unit with top cover is designed to be fitted with indicator bank to create complete tower light and allow clear display of the status of your machines. It it is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. Simple and modular design to allow for easy installation with illuminated unit via tube fixing and make complete tower light. It complies with international standards and certifications (CCC, CSA, UL, RoHS, EAC, CE standards).

Comprar Ahora

Categoría: Tower Lights

Etiqueta: Tower Lights

SKU: XVUC21M

Base unit with top cover for modular tower lights, Harmony XVU, black, 60mm, NPN, 100…240V AC

XVUC21M

Main
Range of Product	Harmony XVU
Product or Component Type	Modular tower light
Beacon or indicator bank unit type	Base unit
Mounting diameter	2.4 in (60 mm)
Component name	XVU
Housing Colour	Black

Complementary
Kit composition	Base unit NPN) Cover
Fixing Mode	Direct or tube fixing
Material	PBT (polybutylene terephthalate) V-0 UL 94 ABS (acrylonitrile butadiene-styrene) V-0 UL 94 PC (polycarbonate) V-0 UL 94
Assembly style	Customer assembly, up to 5 units
[Us] rated supply voltage	100…240 V AC +/- 10 %
Current consumption	<= 400 mA
Length	5.9 in (151 mm)
Net Weight	0.518 lb(US) (0.235 kg)

Environment
Product Certifications	UL CSA CE CCC
Ambient Air Temperature for Storage	-4…149 °F (-20…65 °C)
Ambient Air Temperature for Operation	32…122 °F (0…50 °C)
Vibration resistance	2 gn
IP degree of protection	IP65
Electrical shock protection class	Class II on base unit IEC 61140

Ordering and shipping details
Category	US100XV22618
Discount Schedule	00XV
GTIN	3606480555930
Returnability	No
Country of origin	ID

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	3.5 in (9.0 cm)
Package 1 Width	3.6 in (9.1 cm)
Package 1 Length	10.6 in (26.8 cm)
Package 1 Weight	12.0 oz (340.0 g)
Unit Type of Package 2	S04
Number of Units in Package 2	24
Package 2 Height	11.8 in (30 cm)
Package 2 Width	15.7 in (40 cm)
Package 2 Length	23.6 in (60 cm)
Package 2 Weight	25.362 lb(US) (11.504 kg)
Unit Type of Package 3	P06
Number of Units in Package 3	96
Package 3 Height	29.5 in (75 cm)
Package 3 Width	15.7 in (40 cm)
Package 3 Length	31.5 in (80 cm)
Package 3 Weight	89.614 lb(US) (40.648 kg)
