ZARB12W, Base station, Harmony eXLhoist, standard, 12 relay outputs, cable connection, 24…240V AC DC

MXN $20,863.00 - (IVA Incluido) + Envío

3 disponibles

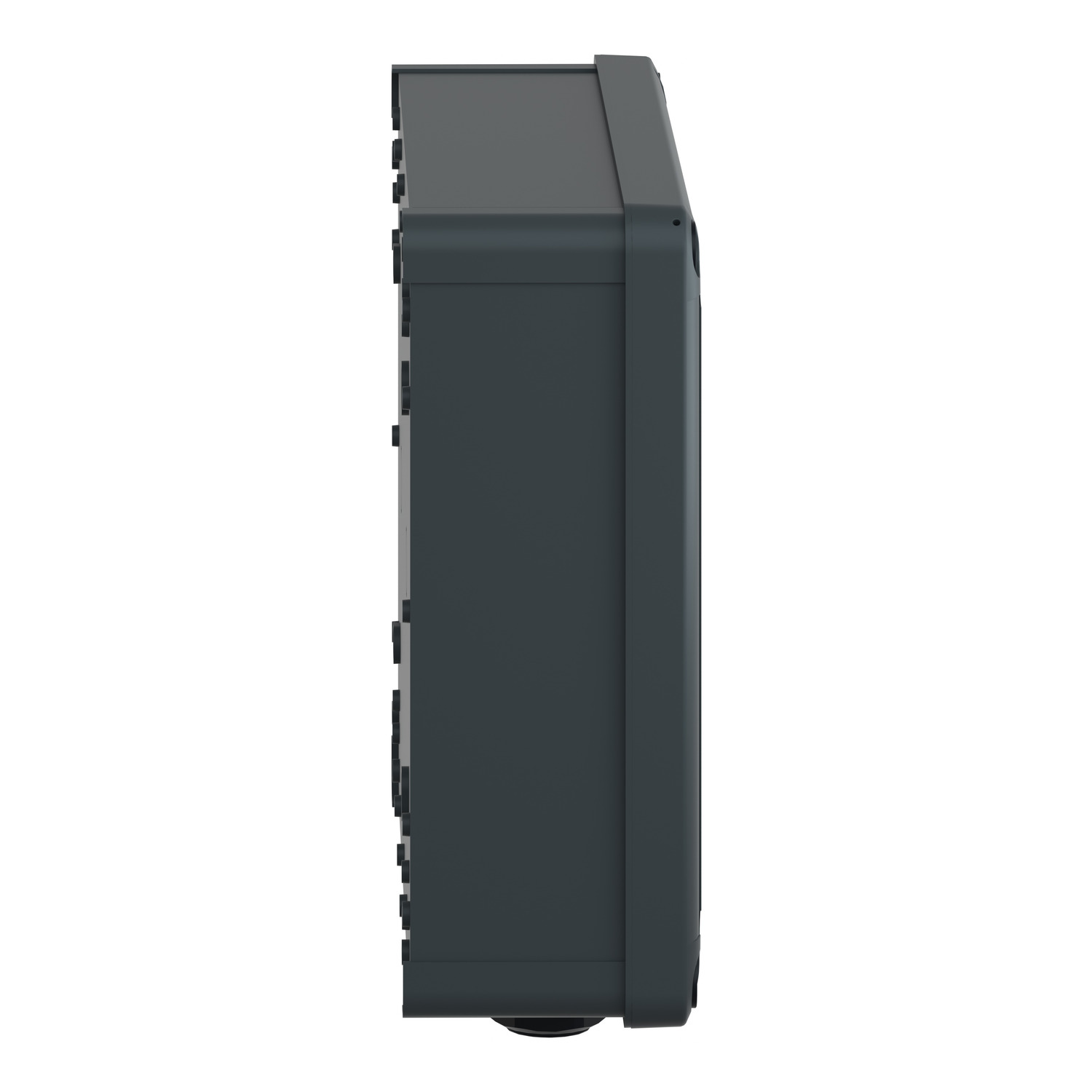

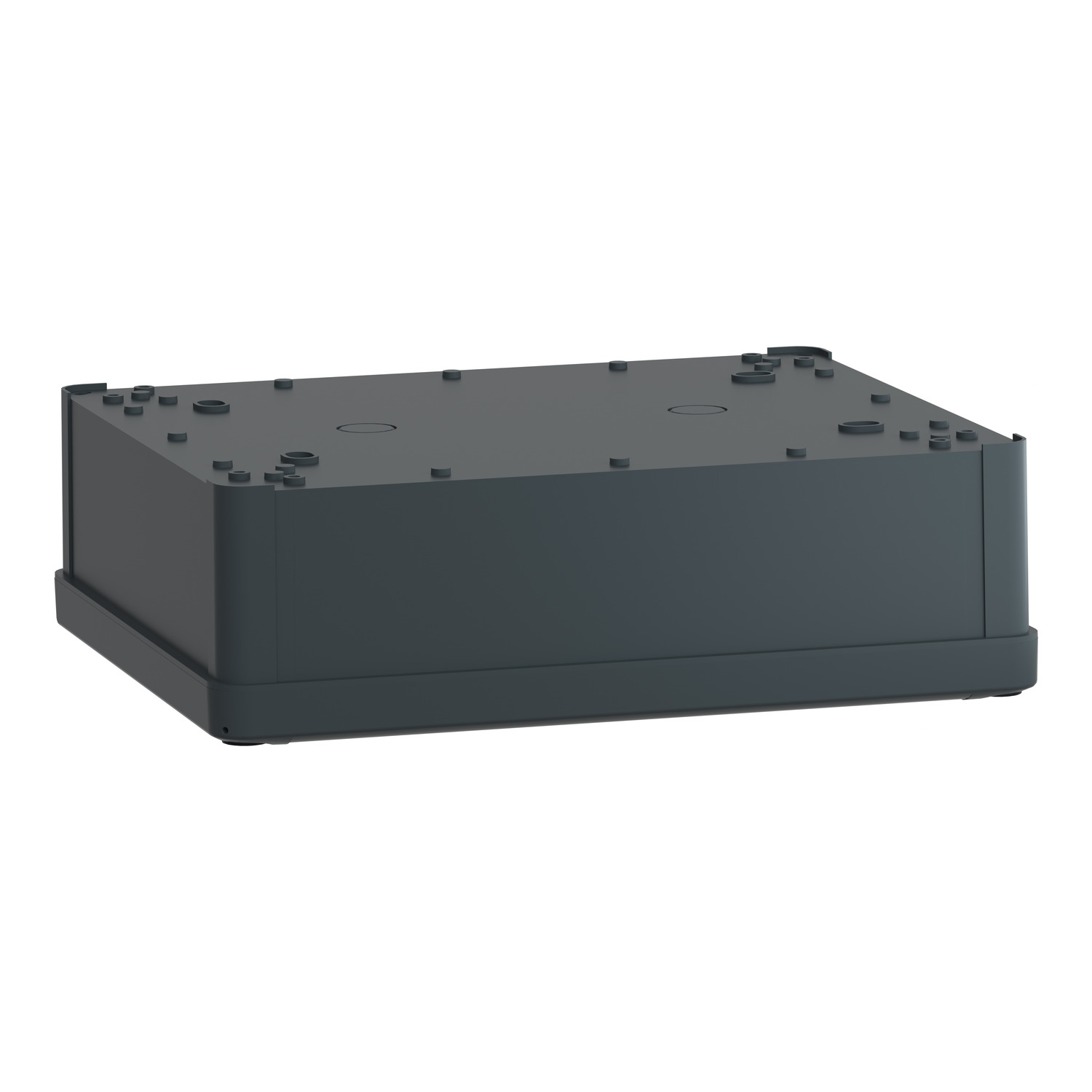

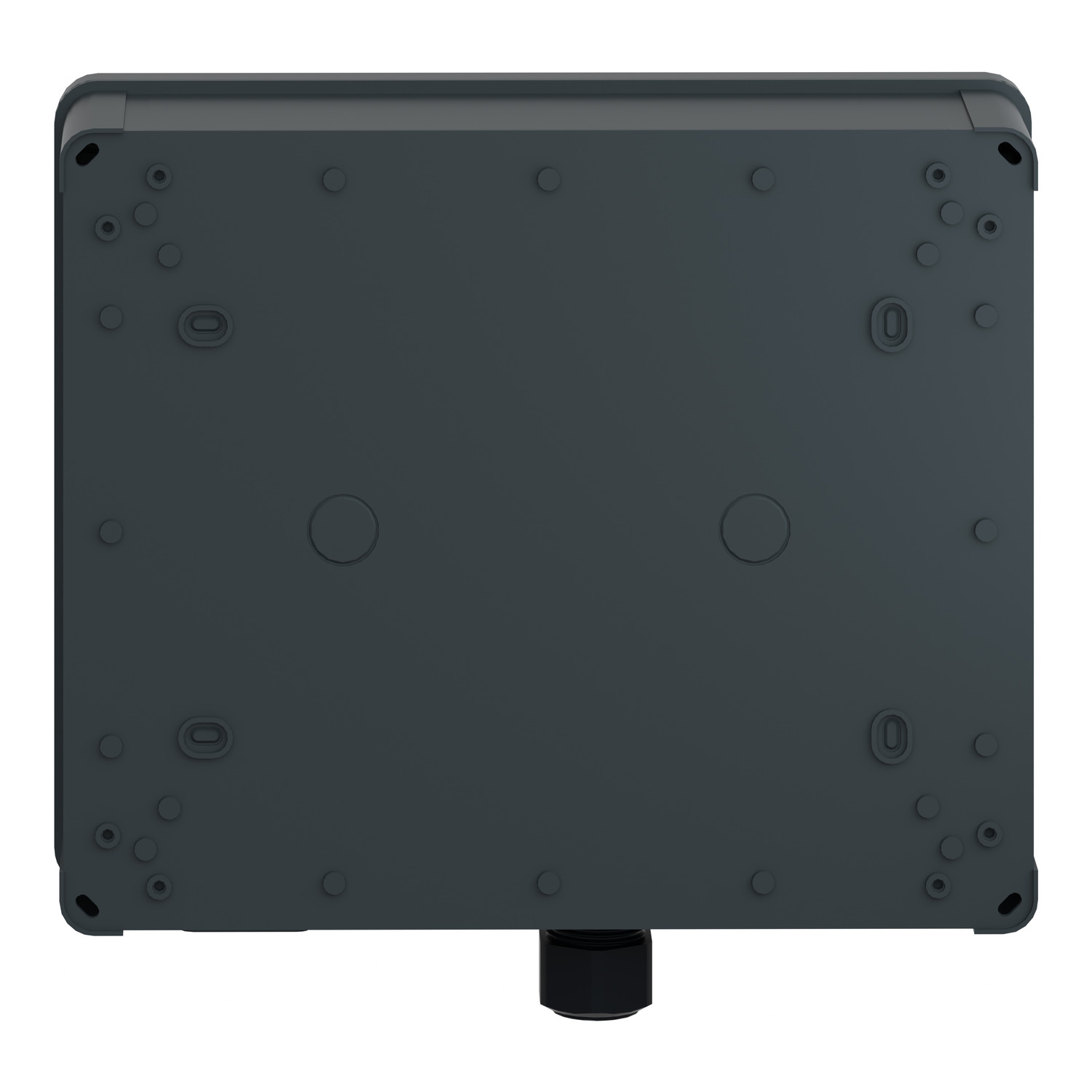

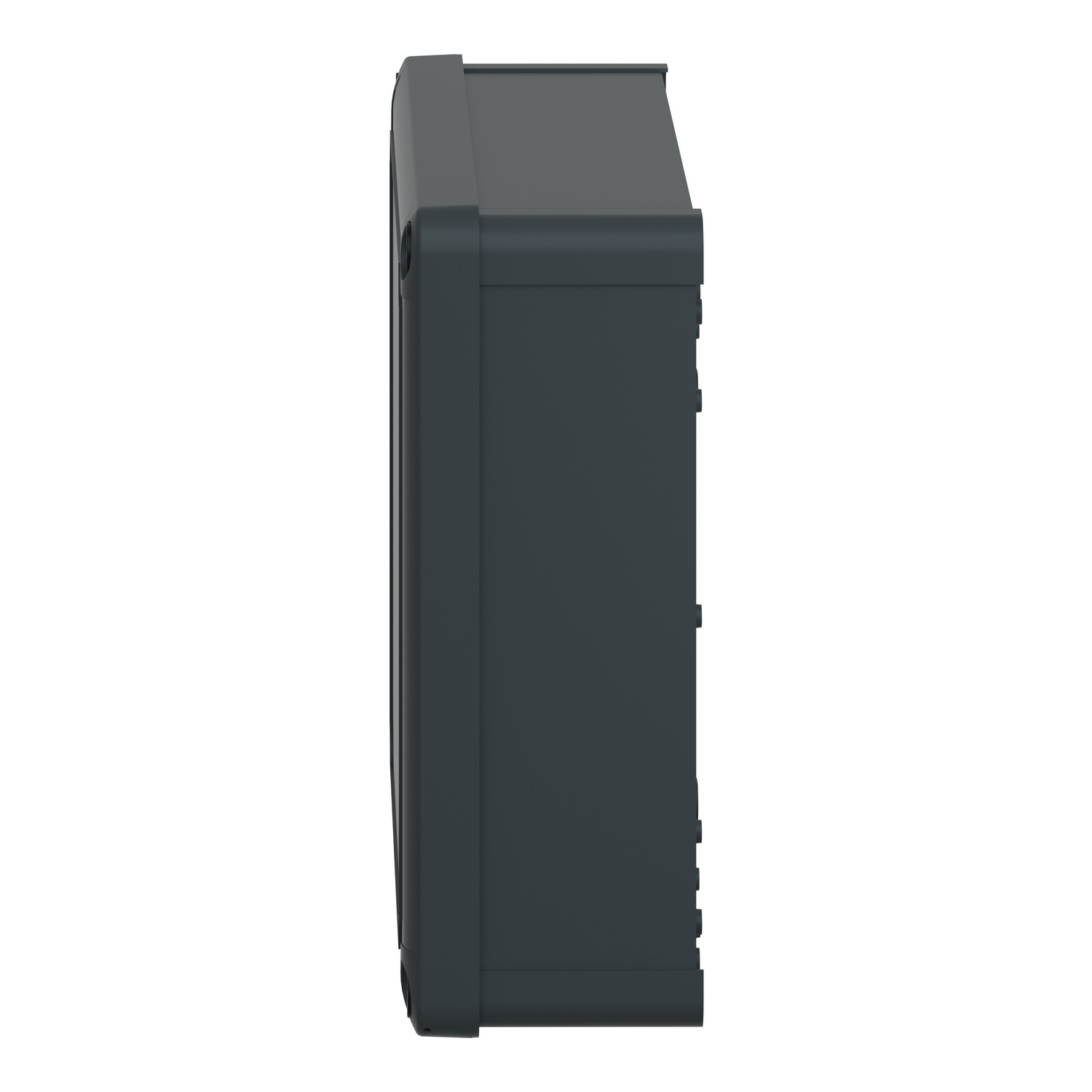

This Harmony eXLhoist / XAR black base station (receiver) has 12 relays outputs with 2 safety relays. This black base station (receiver) is designed as receiver for wireless remote control system. It is compatible with the remote control device ZART8L. It has 12 relay outputs with 2 safety relays and has wired connection cable gland. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP65, making it ideal for operation in harsh (heavy) environments. It provides complete innovative crane operator control solutions to help improve machine and crane operator efficiency. Base station (receiver) has a unique identification code to allow the consistent and stable connection with its compatible remote control system.

Comprar Ahora

Base station, Harmony eXLhoist, standard, 12 relay outputs, cable connection, 24…240V AC DC

ZARB12W

Main
Range of Product	Harmony eXLhoist
Product or Component Type	Base station
Device short name	ZARB
Product Specific Application	Hoisting applications Material handling

Complementary
Cable entry	Cable gland
Material	PC (polycarbonate)
[Us] rated supply voltage	24…240 V AC/DC
Vibration resistance	0.075 mm 10…55 Hz)
Shock resistance	15 gn 11 ms
Provided Equipment	Internal antenna
Nominal output current	0.54 A 48 V AC IEC 60947-5-1
Number of relays	12
Relay type	Motion relay outputs 9 NO Auxiliary relay outputs 3 NO
Safety outputs	2 NC relay outputs
Switching capacity in VA	5 VA DC 26 VA AC
Maximum switching current	6.8 mA
Maximum switching voltage	240 V AC/DC + 20 %)
Communication network type	Wireless bluetooth low energy
Transmission frequency	2.4 GHz
Maximum sensing distance	328.08 ft (100 m) in free field
Number of channels	40
Fixing Mode	4 holes
Electrical durability	100000 cycles
Mechanical durability	1000000 cycles
Service Life	10 year(s)
Width	11.02 in (280 mm)
Height	12.008 in (305 mm)
Depth	3.9 in (100 mm)
Net Weight	3.20 lb(US) (1.45 kg)

Environment
IP degree of protection	IP65
NEMA Degree of Protection	NEMA 4
Pollution degree	3
Electromagnetic compatibility	Resistance to electrostatic discharge – test level: 4 kV class B (on contact) conforming to IEC 61000-4-2 Resistance to electrostatic discharge – test level: 8 kV class B (in air) conforming to IEC 61000-4-2 Resistance to radiated electromagnetic fields – test level: 10 V/m class B conforming to IEC 61000-4-3
Standards	IEC 61000-6-2
Radio agreement	ARIB ICASA RSS SRRC FCC ANATEL
Relative humidity	0…97 %
Ambient Air Temperature for Operation	-13.0000000000…158.0000000000 °F (-25…70 °C)
Ambient Air Temperature for Storage	-40.0000000000…158.0000000000 °F (-40…70 °C)
Product Certifications	KC UL C-tick CE EAC CSA

Ordering and shipping details
Category	US10CS222479
Discount Schedule	0CS2
GTIN	3606480610387
Returnability	No
Country of origin	FR

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	3.9 in (10.0 cm)
Package 1 Width	11.3 in (28.6 cm)
Package 1 Length	11.9 in (30.2 cm)
Package 1 Weight	3.5 lb(US) (1.6 kg)
Unit Type of Package 2	S04
Number of Units in Package 2	4
Package 2 Height	11.8 in (30.0 cm)
Package 2 Width	15.7 in (40.0 cm)
Package 2 Length	23.6 in (60.0 cm)
Package 2 Weight	15.9 lb(US) (7.2 kg)
