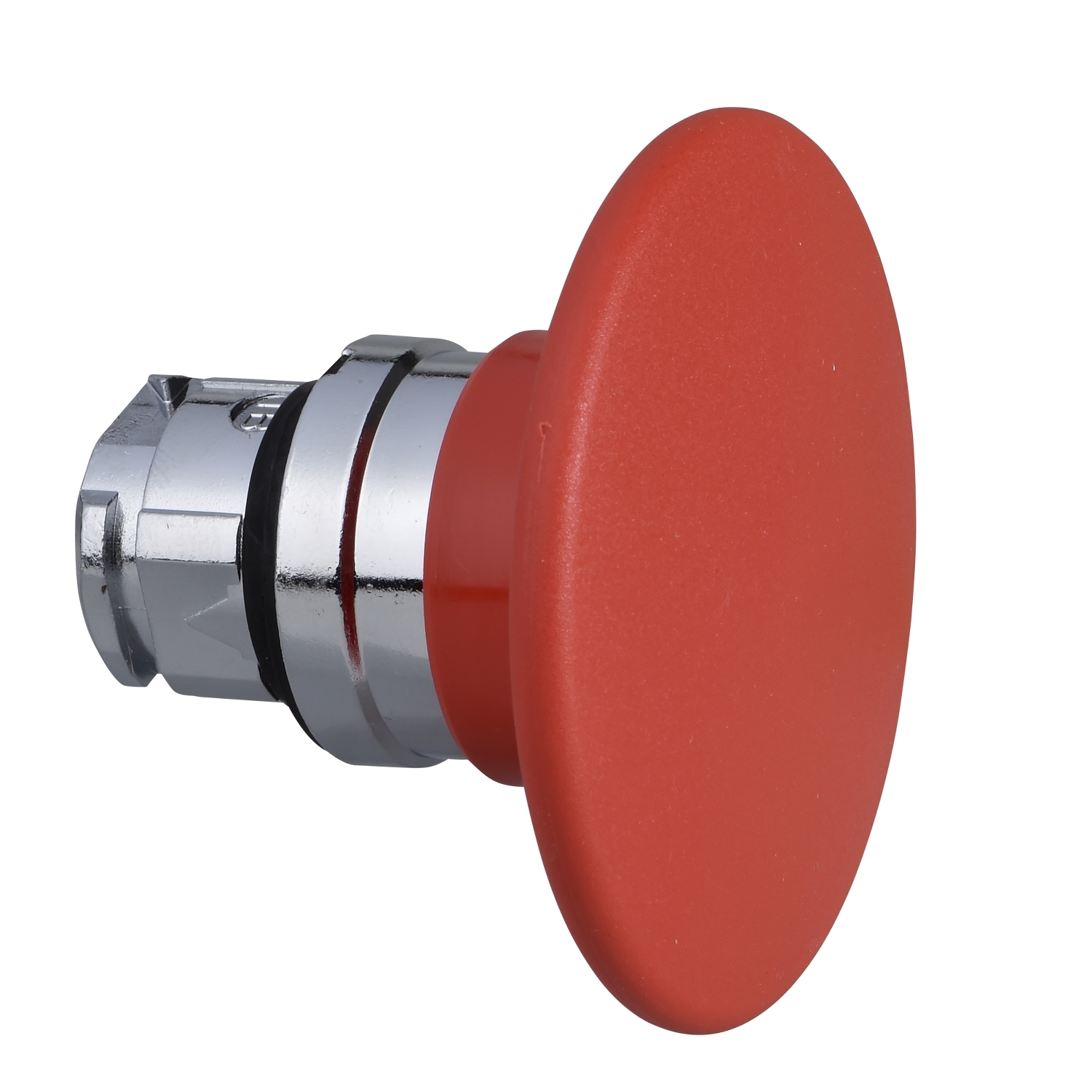

Head for non illuminated pushbutton, Harmony XB4, mushroom 60mm, metal, red, 22mm, spring return
ZB4BR4
Range of Product | Harmony XB4 |
---|---|
Product or Component Type | Head for non-illuminated push-button |
Device short name | ZB4 |
Bezel material | Chromium plated metal |
Mounting diameter | 0.9 in (22 mm) |
Sale per indivisible quantity | 1 |
Head type | Standard |
Shape of signaling unit head | Round |
Type of operator | spring return |
Operator profile | Red mushroom Ø 60 mm, unmarked |
Cap/operator or lens colour | Red |
CAD overall width | 2.4 in (60 mm) |
---|---|
CAD overall height | 2.4 in (60 mm) |
CAD overall depth | 2.05 in (52 mm) |
Mechanical durability | 5000000 cycles |
Electrical composition code | C1 9 single front mounting C2 9 single and double front mounting C11 3 single front mounting C15 1 single front mounting |
device presentation | Basic element |
protective treatment | TH |
---|---|
Ambient Air Temperature for Storage | -40.0000000000…158.0000000000 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -40.0000000000…158.0000000000 °F (-40…70 °C) |
Overvoltage category | Class I IEC 60536 |
IP degree of protection | IP66 IEC 60529 IP67 IP69 IP69K |
NEMA degree of protection | NEMA 13 NEMA 4X |
IK degree of protection | IK03 conforming to IEC 50102 |
Standards | CSA C22.2 No 14 EN/IEC 60947-5-1 EN/IEC 60947-1 EN/IEC 60947-5-5 UL 508 JIS C8201-5-1 EN/IEC 60947-5-4 JIS C8201-1 |
Product Certifications | CSA BV DNV GL LROS (Lloyds register of shipping) UL Listed |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Category | US10CS222468 |
---|---|
Discount Schedule | 0CS2 |
GTIN | 3389110888508 |
Returnability | Yes |
Country of origin | FR |
Unit Type of Package 1 | PCE |
---|---|
Number of Units in Package 1 | 1 |
Package 1 Height | 3.543 in (9.000 cm) |
Package 1 Width | 2.756 in (7.000 cm) |
Package 1 Length | 2.756 in (7.000 cm) |
Package 1 Weight | 3.175 oz (90.000 g) |
Unit Type of Package 2 | S02 |
Number of Units in Package 2 | 20 |
Package 2 Height | 5.906 in (15.000 cm) |
Package 2 Width | 11.811 in (30.000 cm) |
Package 2 Length | 15.748 in (40.000 cm) |
Package 2 Weight | 4.709 lb(US) (2.136 kg) |
Warranty | 18 months |
---|
