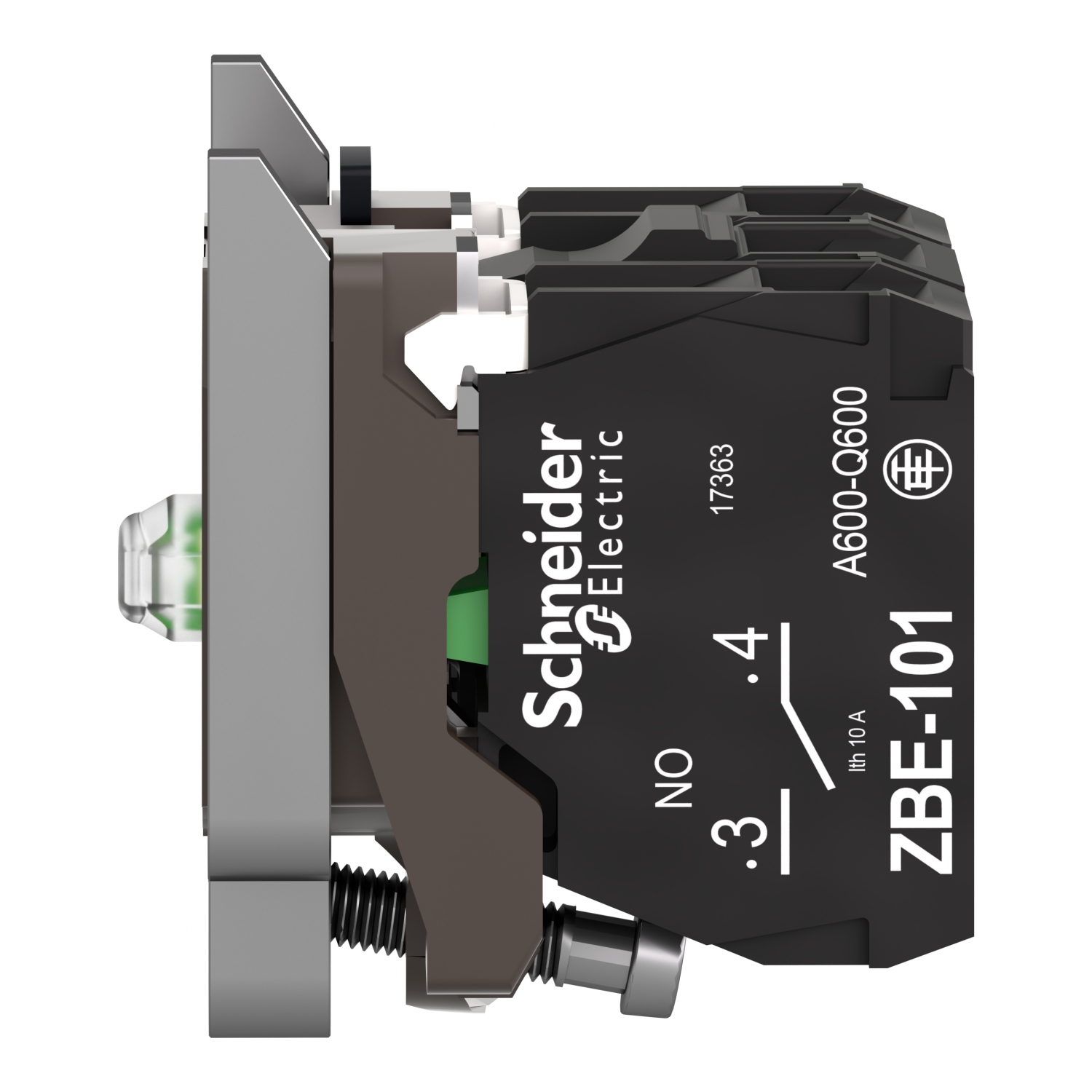

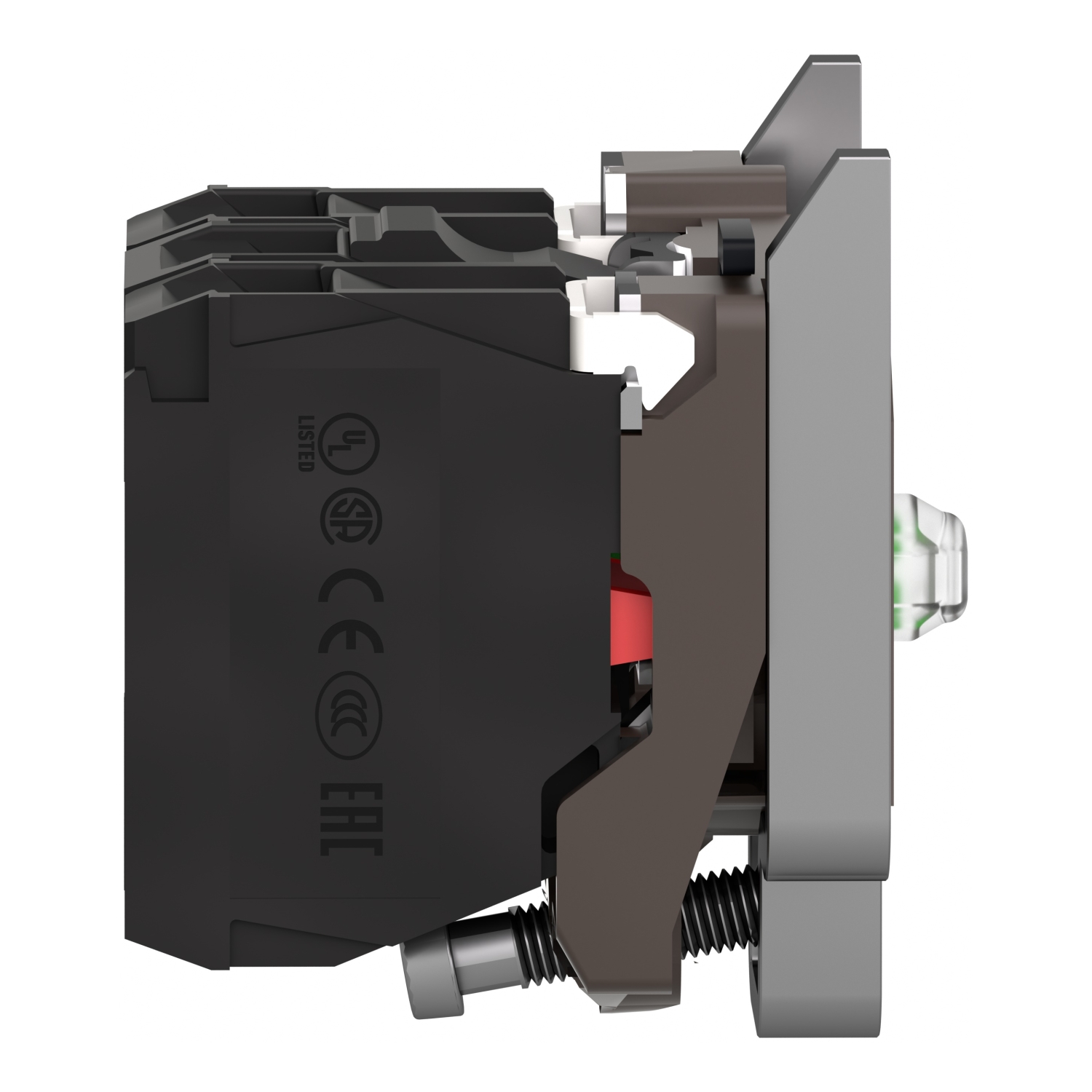

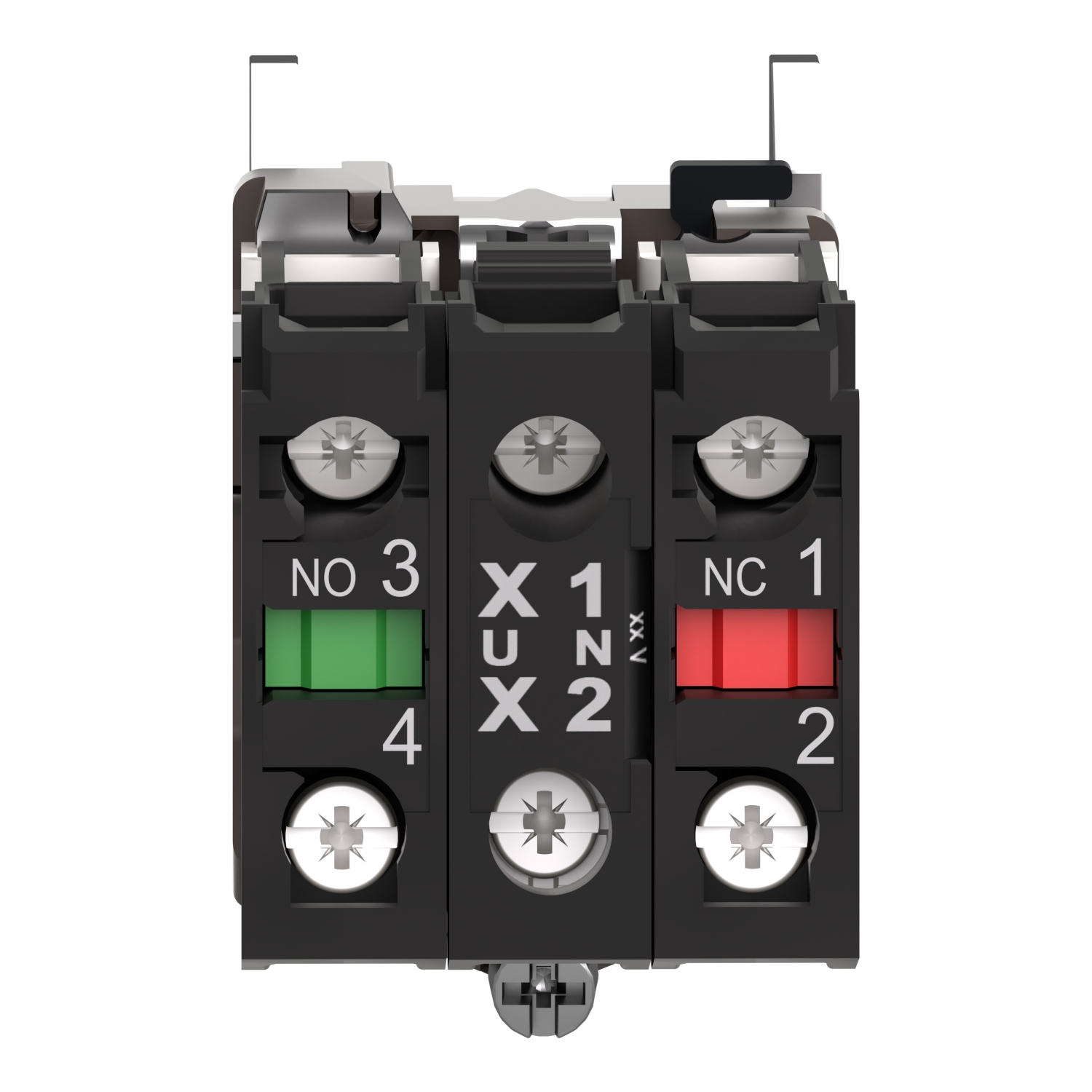

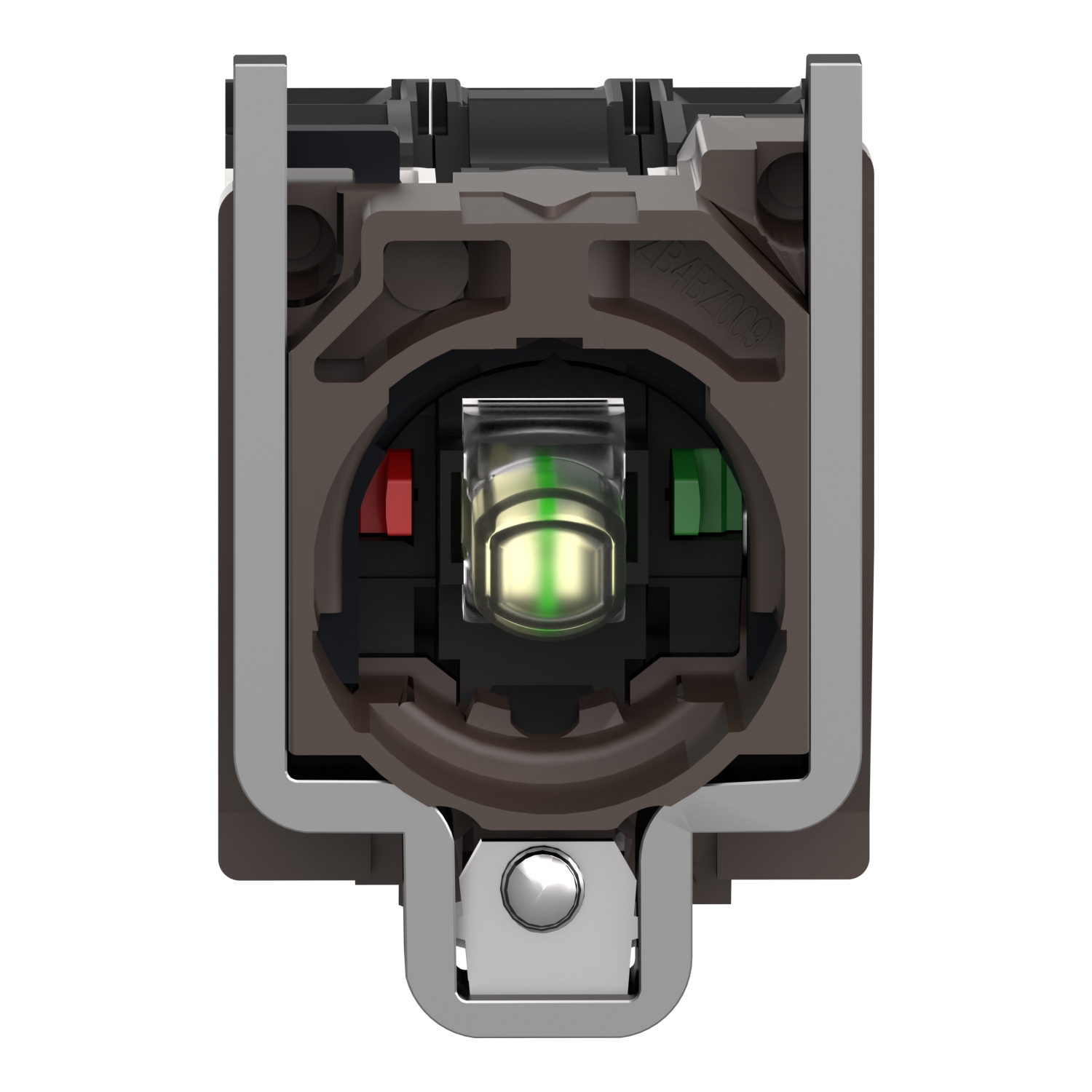

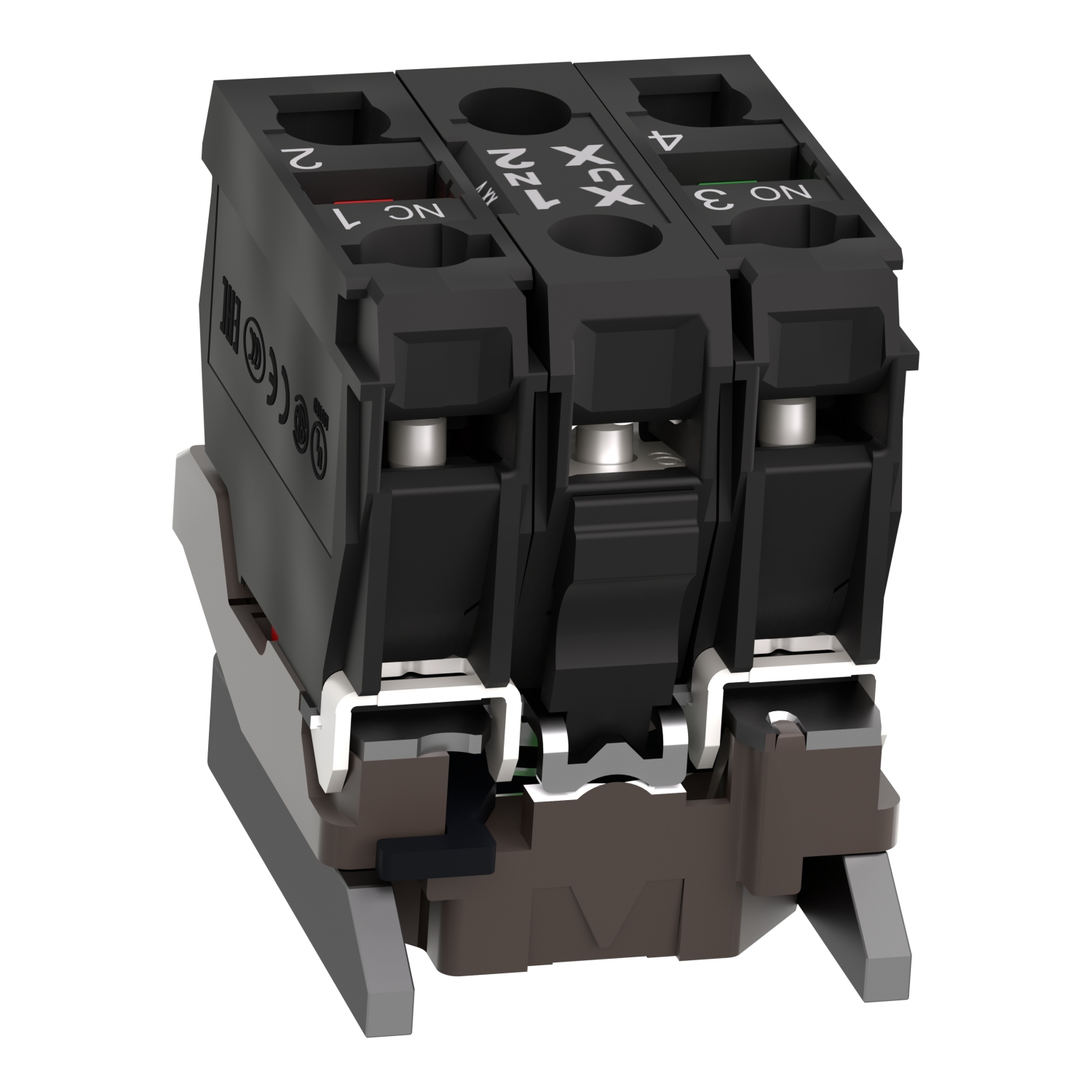

ZB4BW0M15, Complete body contact assembly and light block, Harmony XB4, metal, universal LED, body fixing collar, 1NO + 1NC, 230…240V AC

MXN $875.00 - (IVA Incluido) + Envío

51 disponibles

This Harmony XB4, light block with body/fixing collar is white, operates with a universal LED. It has 1 x NO + 1 x NC contacts and a metal body and is compatible with Harmony XB4 pilot lights. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by universal LED. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It is designed to fit with a standard 22mm control and signaling units, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 55°C allows versatility in usage of product.

Comprar Ahora
SKU: ZB4BW0M15

Complete body contact assembly and light block, Harmony XB4, metal, universal LED, body fixing collar, 1NO + 1NC, 230…240V AC

ZB4BW0M15

Main
Range of Product Harmony XB4
Product or Component Type Complete body/contact assembly and light block
Device short name ZB4
Fixing collar material Zamak
Sale per indivisible quantity 1
Head type Standard
Contacts type and composition 1 NO + 1 NC
Contact operation Slow-break
Connections – terminals Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1
Screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Light source Universal LED
Bulb base Integral LED
Light block supply Direct
Light source colour White
[Us] rated supply voltage 230…240 V AC 50/60 Hz
Complementary
CAD overall width 1.2 in (30 mm)
CAD overall height 1.9 in (47 mm)
Terminals description ISO n°1 (11-12)NC
Net Weight 0.163 lb(US) (0.074 kg)
Contacts usage Standard
Positive opening With IEC 60947-5-1 appendix K
Operating travel 0.06 in (1.5 mm) NC changing electrical state)
0.1 in (2.6 mm) NO changing electrical state)
0.2 in (4.3 mm) total travel)
Operating force 2 N NC changing electrical state
2.3 N NO changing electrical state
Operating torque 0.44 lbf.in (0.05 N.m) NO changing electrical state
Mechanical durability 5000000 cycles
Tightening torque 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1
Shape of screw head Cross Philips no 1
Cross pozidriv No 1
Slotted flat Ø 4 mm
Slotted flat Ø 5.5 mm
Contacts material Silver alloy (Ag/Ni)
Short-circuit protection 10 A cartridge fuse gG IEC 60947-5-1
[Ith] conventional free air thermal current 10 A IEC 60947-5-1
[Ui] rated insulation voltage 600 V 3)IEC 60947-1
[Uimp] rated impulse withstand voltage 6 kV IEC 60947-1
[Ie] rated operational current 3 A 240 V, AC-15, A600 IEC 60947-5-1
6 A 120 V, AC-15, A600 IEC 60947-5-1
0.1 A 600 V, DC-13, Q600 IEC 60947-5-1
0.27 A 250 V, DC-13, Q600 IEC 60947-5-1
0.55 A 125 V, DC-13, Q600 IEC 60947-5-1
1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Electrical durability 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Electrical reliability Λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4
Λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Signalling type Steady
Supply voltage limits 195…264 V AC
Current Consumption 14 mA
Service life 100000 h at rated voltage and 25 °C
Surge withstand 1 kV IEC 61000-4-5
device presentation Basic sub-assemblies
Environment
protective treatment TH
Ambient Air Temperature for Storage -40.0000000000…158.0000000000 °F (-40…70 °C)
Ambient Air Temperature for Operation -40.0000000000…158.0000000000 °F (-40…70 °C)
Electrical shock protection class Class I IEC 60536
Standards CSA C22.2 No 14
IEC 60947-5-5
IEC 60947-1
JIS C8201-5-1
IEC 60947-5-4
IEC 60947-5-1
UL 508
JIS C8201-1
Product Certifications CSA
BV
DNV
UL Listed
GL
LROS (Lloyds register of shipping)
Vibration resistance 5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Resistance to fast transients 2 kV IEC 61000-4-4
Resistance to electromagnetic fields 9.1 V/m (10 V/m) IEC 61000-4-3
Resistance to electrostatic discharge 6 kV on contact (on metal parts) IEC 61000-2-6
8 kV in free air (in insulating parts) IEC 61000-2-6
Electromagnetic emission Class B IEC 55011
Ordering and shipping details
Category US10CS222469
Discount Schedule 0CS2
GTIN 3389110893533
Returnability Yes
Country of origin FR
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 1.417 in (3.600 cm)
Package 1 Width 2.087 in (5.300 cm)
Package 1 Length 2.323 in (5.900 cm)
Package 1 Weight 2.469 oz (70.000 g)
Unit Type of Package 2 S03
Number of Units in Package 2 150
Package 2 Height 11.811 in (30.000 cm)
Package 2 Width 11.811 in (30.000 cm)
Package 2 Length 15.748 in (40.000 cm)
Package 2 Weight 24.328 lb(US) (11.035 kg)
Unit Type of Package 3 P06
Number of Units in Package 3 1200
Package 3 Height 29.528 in (75.000 cm)
Package 3 Width 23.622 in (60.000 cm)
Package 3 Length 31.496 in (80.000 cm)
Package 3 Weight 224.440 lb(US) (101.804 kg)
Contractual warranty
Warranty 18 months
Peso 0.07 kg
Dimensiones 5.3 × 5.9 × 3.6 cm
