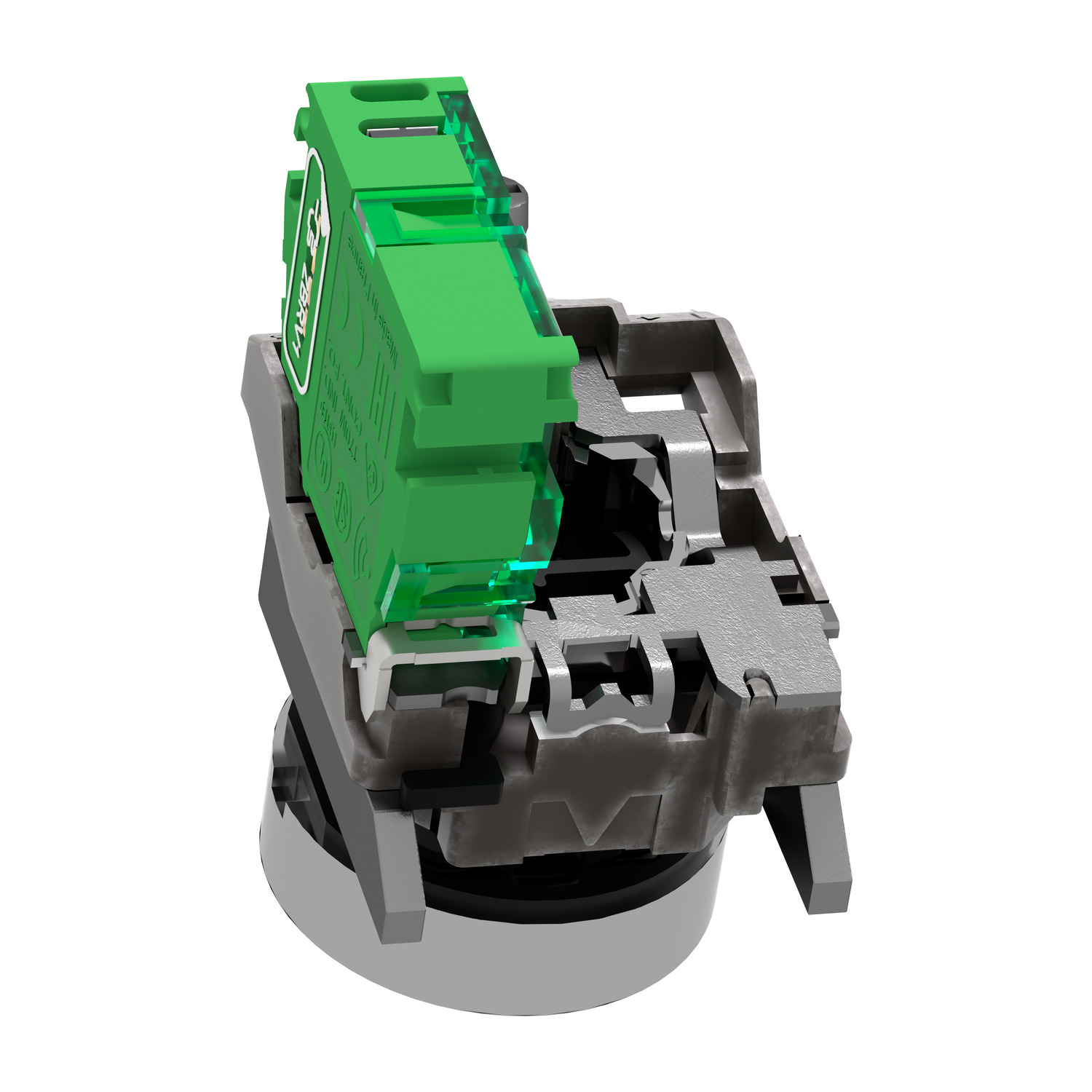

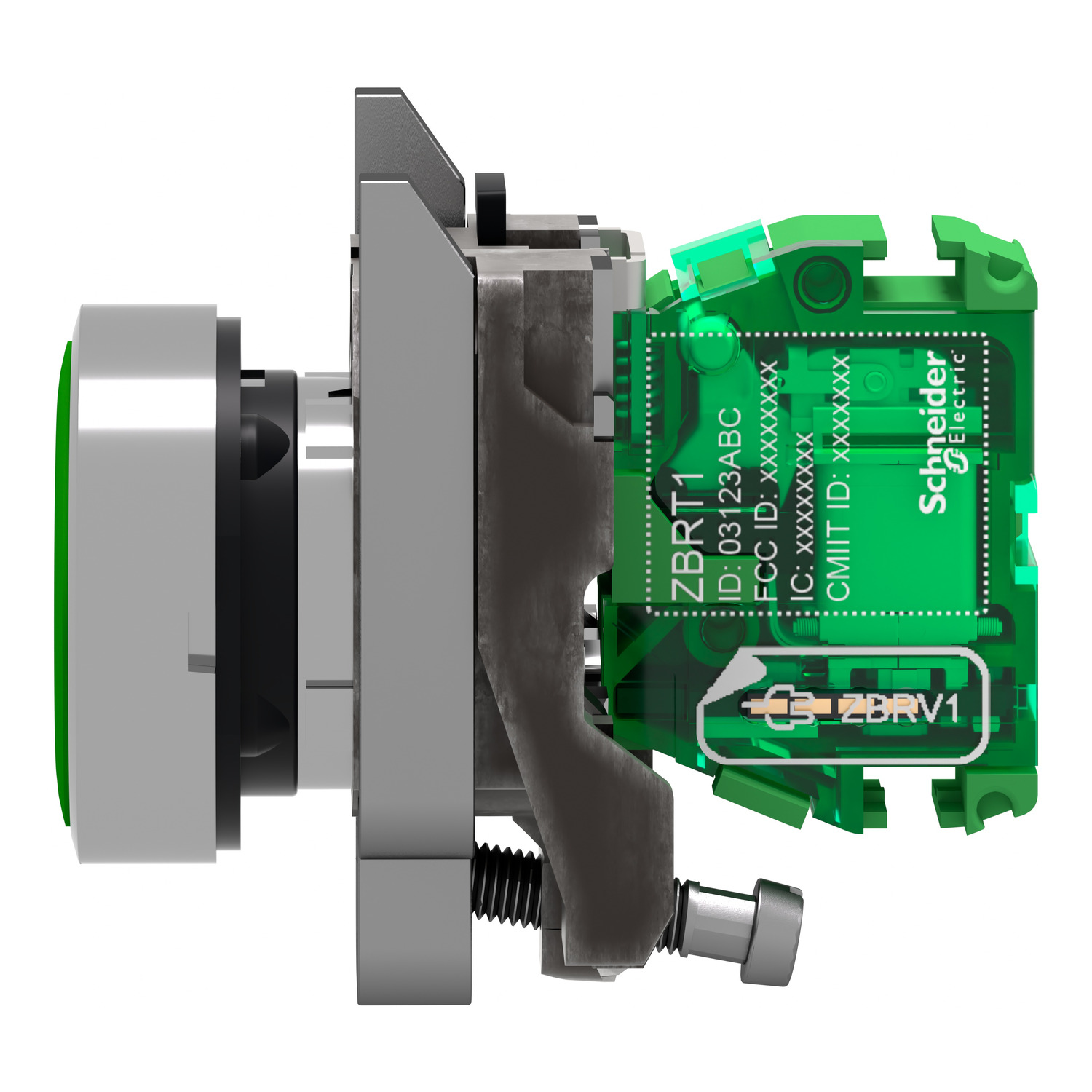

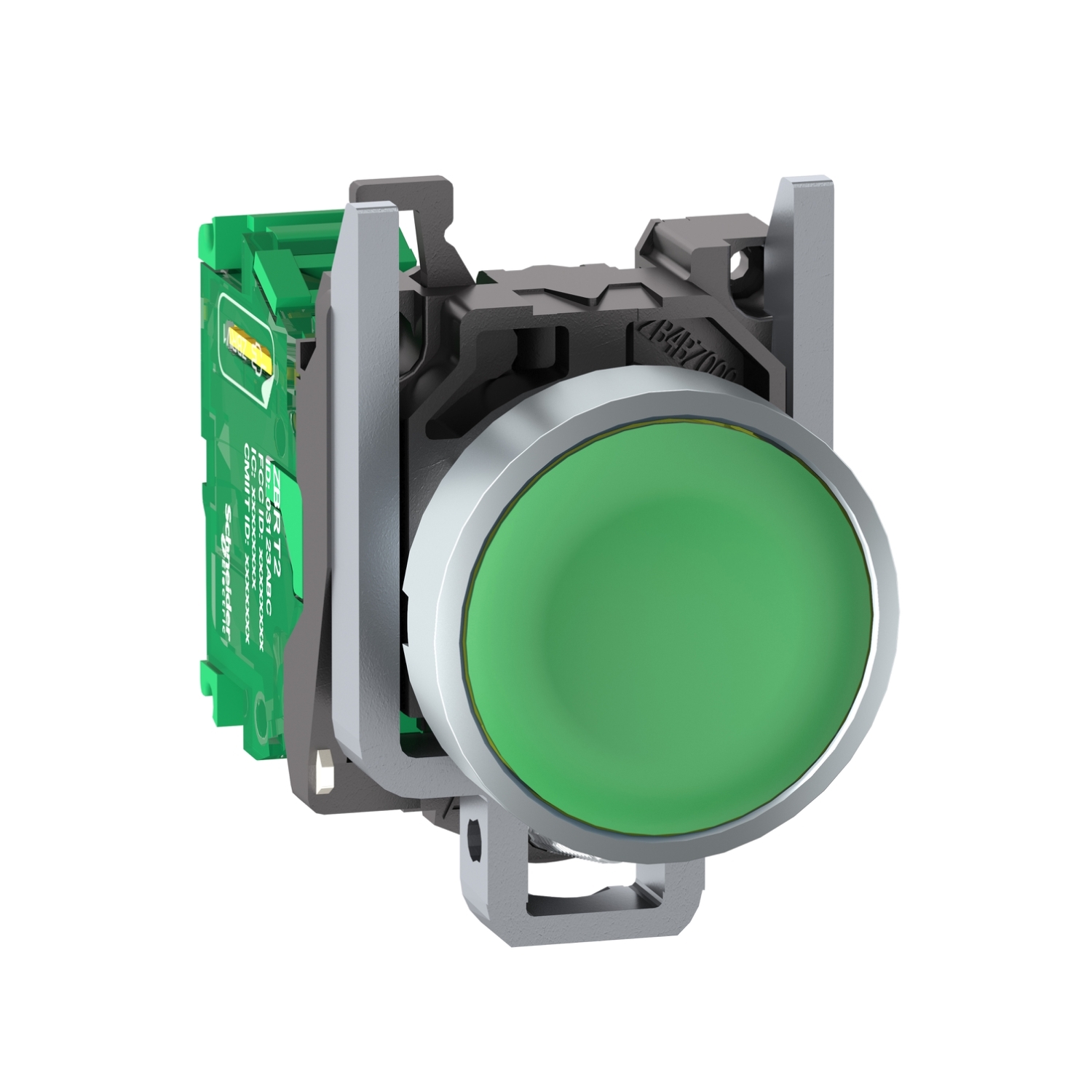

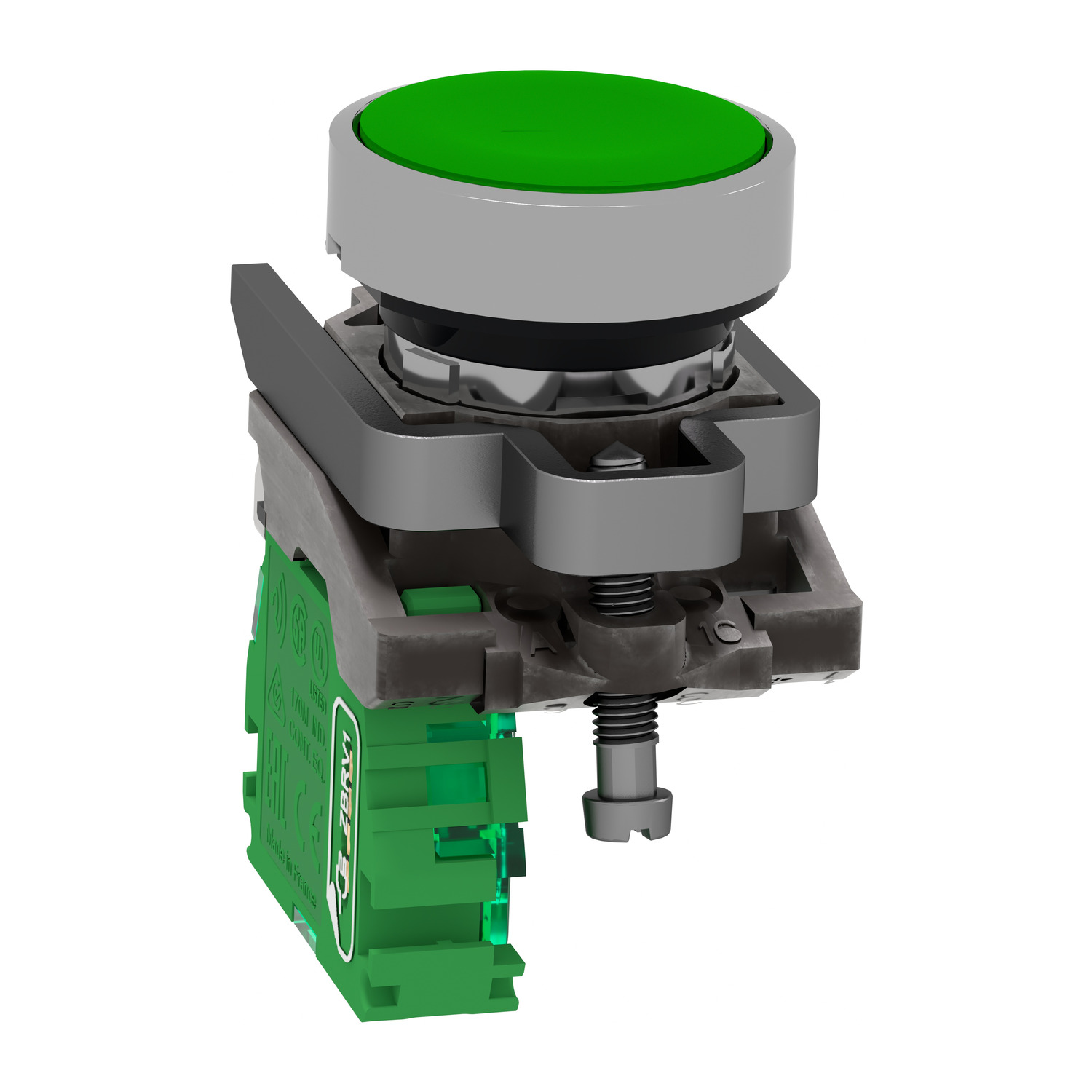

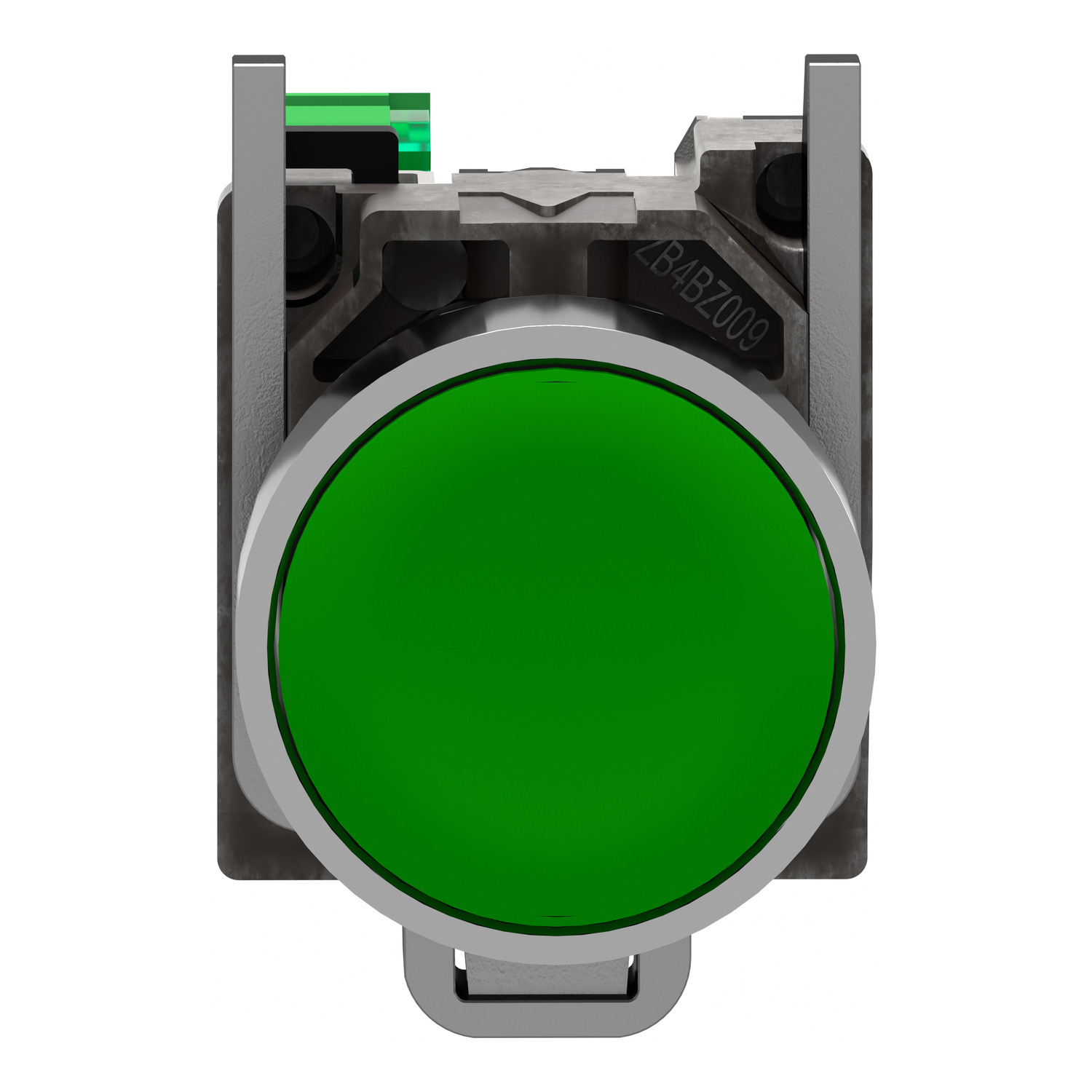

Wireless and batteryless transmitter, Harmony XB5R, push button, metal, green, 22mm, spring return
ZB4RTA3
| Range of Product | Harmony XB5 |
|---|---|
| Product or Component Type | Wireless and batteryless transmitter |
| Device short name | XB5R |
| Bezel material | Chromium plated metal |
| Fixing collar material | Zamak |
| Mounting diameter | 0.9 in (22 mm) |
| Transmission frequency | 2405 MHz |
| emission class | 5M00G7W |
| Antenna type | Omnidirectional |
| Shape of signaling unit head | Round |
|---|---|
| Type of operator | spring return push-button with transmitter |
| Operator profile | Green flush |
| Max power consumption in W | 1 mW |
| Number of channels | 16 |
| modulation technique | O-QPSK |
| Bandwidth | 5 MHz |
| Antenna gain | 0 dBi |
| Embedding Depth | 1.7 in (42 mm) |
| CAD overall height | 1.6 in (41.5 mm) |
| CAD overall width | 1.2 in (30 mm) |
| CAD overall depth | 1.7 in (43 mm) |
| Net Weight | 0.099 lb(US) (0.045 kg) |
| Operating travel | 0.2 in (4.3 mm) total travel) |
| Operating force | 10 N C/O changing electrical state |
| Mechanical robustness | Free fall resistance 1000 mm EN/IEC 60068-2-32 |
| Standards | CSA C22.2 No 14 EN/IEC 60947-1 EN/IEC 60947-5-1 UL 508 |
| Radio agreement | ANATEL ARIB T66 FCC ICASA RSS |
| Communication port protocol | Zigbee green power 2.4 GHz IEEE 802.15.4 |
| Maximum sensing distance | 328.08 ft (100 m) in free field 82.02 ft (25 m) transmitter in a plastic box type XAL D and receiver in a metal enclosure 984.3 ft (300 m) transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna |
| Acquisition time | 2 ms |
| Response time | < 2 ms |
| Emission Power | 3 mW |
| Fixing mode | Fixing screw beneath head 7.08…10.6 lbf.in (0.8…1.2 N.m) |
| Electrical composition code | PW1 |
| protective treatment | TH |
|---|---|
| Ambient Air Temperature for Storage | -40.0000000000…158.0000000000 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40.0000000000…158.0000000000 °F (-40…70 °C) |
| Relative humidity | 95 % -40…158 °F (-40…70 °C) without condensation |
| IP degree of protection | IP66 IEC 60529 front face) IP67 IEC 60529 front face) IP69 IEC 60529 front face) IP69K IEC 60529 front face) |
| IK degree of protection | IK03 conforming to IEC 50102 |
| Mechanical durability | 1000000 cycles |
| Shock resistance | 25 gn 6 ms) 6000 shocks IEC 60068-2-27 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Vibration resistance | 5 gn 11…500 Hz)IEC 60068-2-6 +/- 10 mm 2…11 Hz)IEC 60068-2-6 |
| Electromagnetic compatibility | Electrostatic discharge immunity test – test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2 Electrostatic discharge immunity test – test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2 Susceptibility to electromagnetic fields – test level: 20 V/m (80…3000 MHz) conforming to IEC 61000-4-3 Susceptibility to electromagnetic fields – test level: 6 V/m (3000…6000 MHz, distance = 20 m) conforming to IEC 61000-4-3 |
| Product Certifications | BT 2006/95/EC C-tick UL GOST CSA |
| Directives | 1999/5/EC – R&TTE directive 2004/108/EC – electromagnetic compatibility |
| Category | US1000I22470 |
|---|---|
| Discount Schedule | 000I |
| GTIN | 3606480334504 |
| Returnability | Yes |
| Country of origin | US |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.09 in (5.3 cm) |
| Package 1 Width | 1.3 in (3.4 cm) |
| Package 1 Length | 3.4 in (8.7 cm) |
| Package 1 Weight | 3.3 oz (93.0 g) |
| Unit Type of Package 2 | S01 |
| Number of Units in Package 2 | 25 |
| Package 2 Height | 5.9 in (15.0 cm) |
| Package 2 Width | 5.9 in (15.0 cm) |
| Package 2 Length | 15.7 in (40.0 cm) |
| Package 2 Weight | 5.562 lb(US) (2.523 kg) |
| Warranty | 18 months |
|---|
