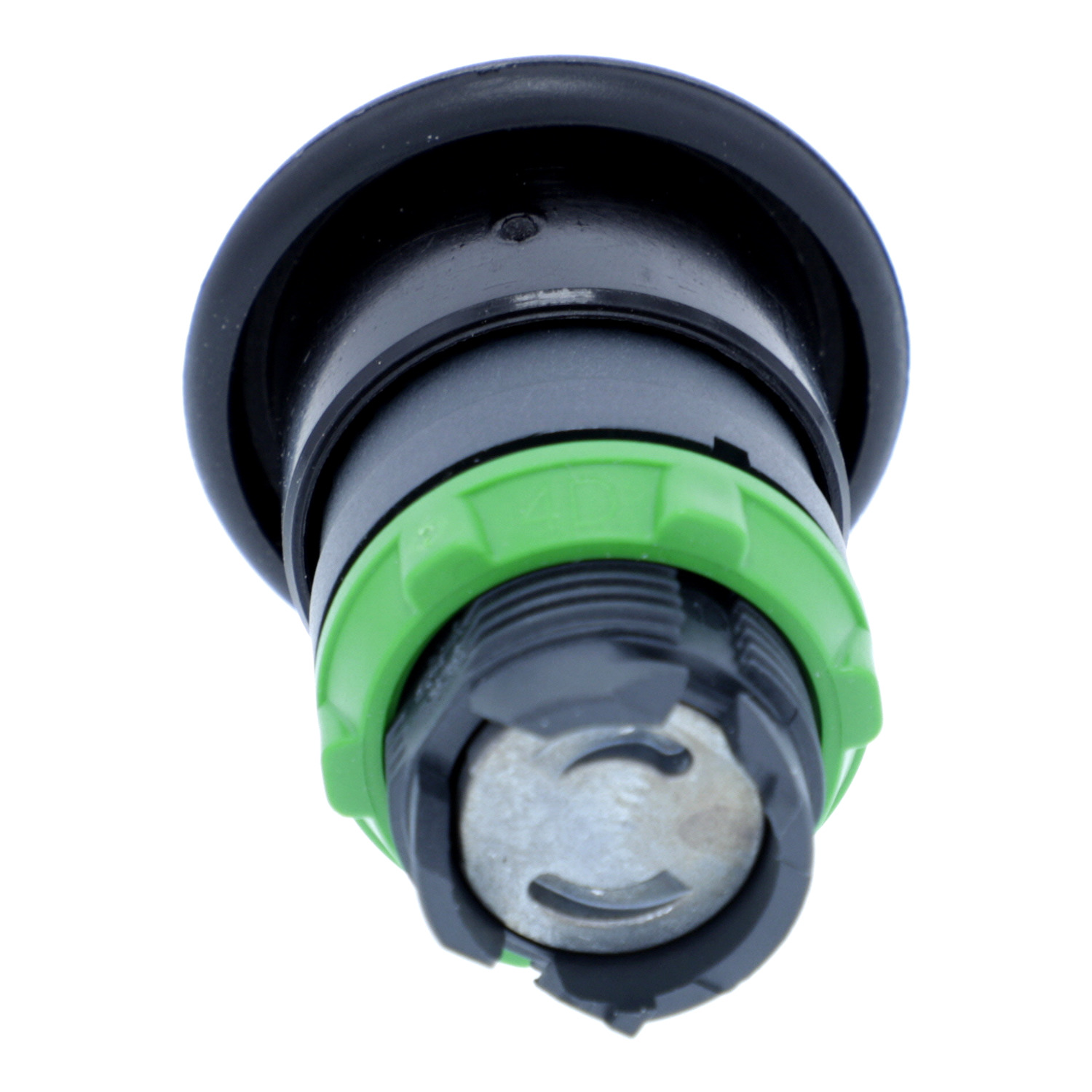

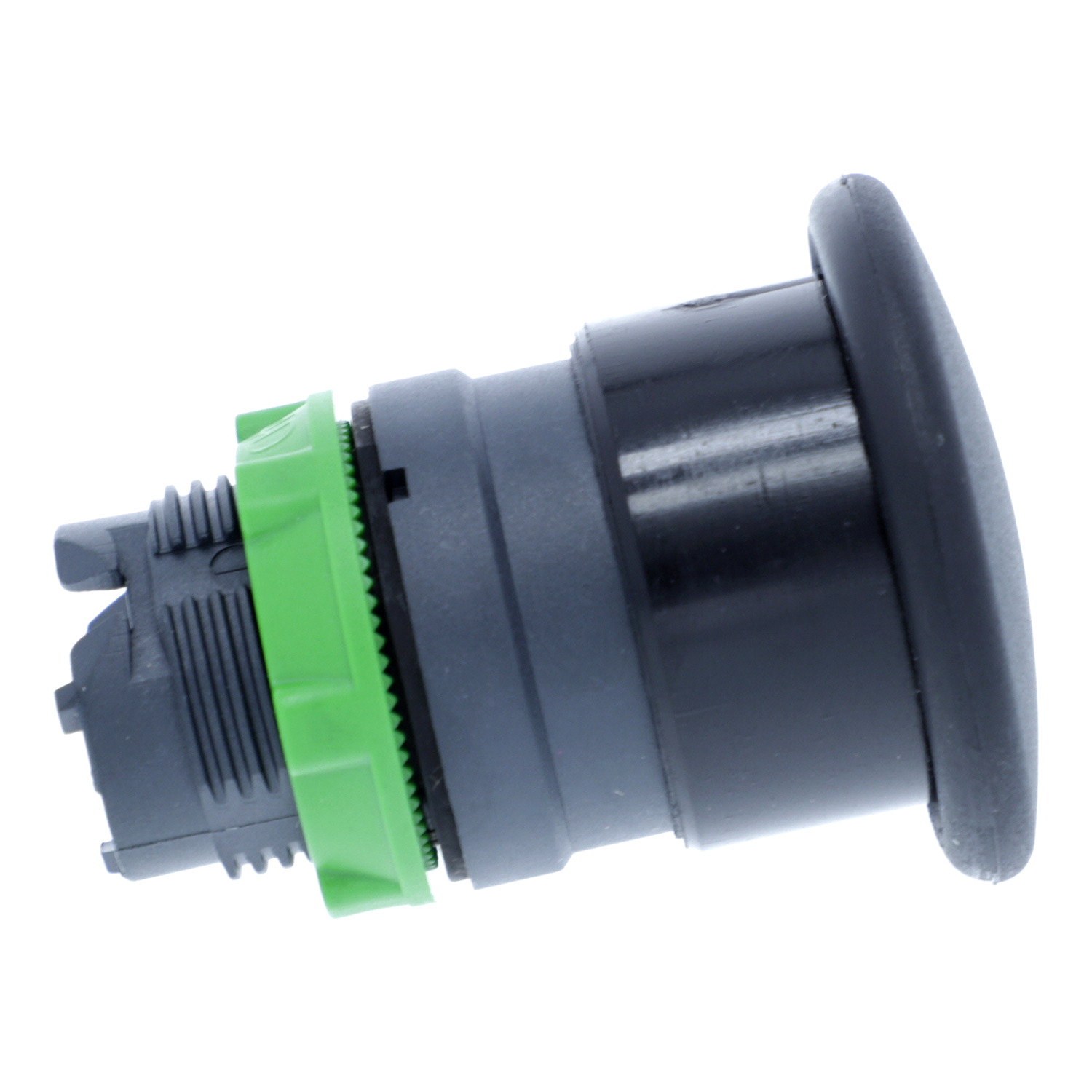

ZB5AC2, Head for non illuminated pushbutton, Harmony XB5, plastic, black, mushroom 40mm, 22mm, spring return

MXN $692.00 - (IVA Incluido) + Envío

1 disponibles

This Harmony XB5, 40mm mushroom black button head operates with a spring return mechanism. This 40mm mushroom shaped push-button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Comprar Ahora
SKU: ZB5AC2

Head for non illuminated pushbutton, Harmony XB5, plastic, black, mushroom 40mm, 22mm, spring return

ZB5AC2

Main
Range of Product Harmony XB5
Product or Component Type Head for non-illuminated push-button
Device short name ZB5
Bezel material Dark grey plastic
Head type Standard
Mounting diameter 0.9 in (22 mm)
Sale per indivisible quantity 1
Shape of signaling unit head Round
Type of operator spring return
Operator profile Black mushroom Ø 40 mm, unmarked
device presentation Basic element
Complementary
CAD overall width 1.6 in (40 mm)
CAD overall height 1.6 in (40 mm)
CAD overall depth 2.05 in (52 mm)
Net Weight 0.101 lb(US) (0.046 kg)
Mechanical durability 5000000 cycles
Station name XALD 1 cut-out
XALK 1 cut-out
Electrical composition code C1 9 single front mounting
C2 9 single and double front mounting
C11 3 single front mounting
C15 1 single front mounting
SF1 3 single front mounting
SR1 3 single rear mounting
Compatibility code ZB5
Environment
protective treatment TH
Ambient Air Temperature for Storage -40.0000000000…158.0000000000 °F (-40…70 °C)
Ambient Air Temperature for Operation -40.0000000000…158.0000000000 °F (-40…70 °C)
Overvoltage category Class II IEC 60536
IP degree of protection IP66 IEC 60529
IP69
IP69K
NEMA degree of protection NEMA 13
NEMA 4X
Resistance to high pressure washer 1015.3 psi (7000000 Pa) 131.0000000000 °F (55 °C) 0.1 m
IK degree of protection IK03 conforming to IEC 50102
Standards IEC 60947-5-1
JIS C8201-5-1
UL 508
IEC 60947-1
CSA C22.2 No 14
IEC 60947-5-4
JIS C8201-1
Product Certifications GL
LROS (Lloyds register of shipping)
DNV
CSA
BV
UL Listed
Vibration resistance 5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ordering and shipping details
Category US10CS222467
Discount Schedule 0CS2
GTIN 3389110904864
Returnability Yes
Country of origin CZ
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 1.772 in (4.500 cm)
Package 1 Width 2.165 in (5.500 cm)
Package 1 Length 3.346 in (8.500 cm)
Package 1 Weight 1.665 oz (47.200 g)
Unit Type of Package 2 S02
Number of Units in Package 2 42
Package 2 Height 5.906 in (15.000 cm)
Package 2 Width 11.811 in (30.000 cm)
Package 2 Length 15.748 in (40.000 cm)
Package 2 Weight 4.892 lb(US) (2.219 kg)
Unit Type of Package 3 P06
Number of Units in Package 3 672
Package 3 Height 29.528 in (75.000 cm)
Package 3 Width 31.496 in (80.000 cm)
Package 3 Length 23.622 in (60.000 cm)
Package 3 Weight 95.903 lb(US) (43.501 kg)
Contractual warranty
Warranty 18 months
Peso 0.047 kg
Dimensiones 5.5 × 8.5 × 4.5 cm
Marcas

Schneider Electric

Marca

Schneider Electric
