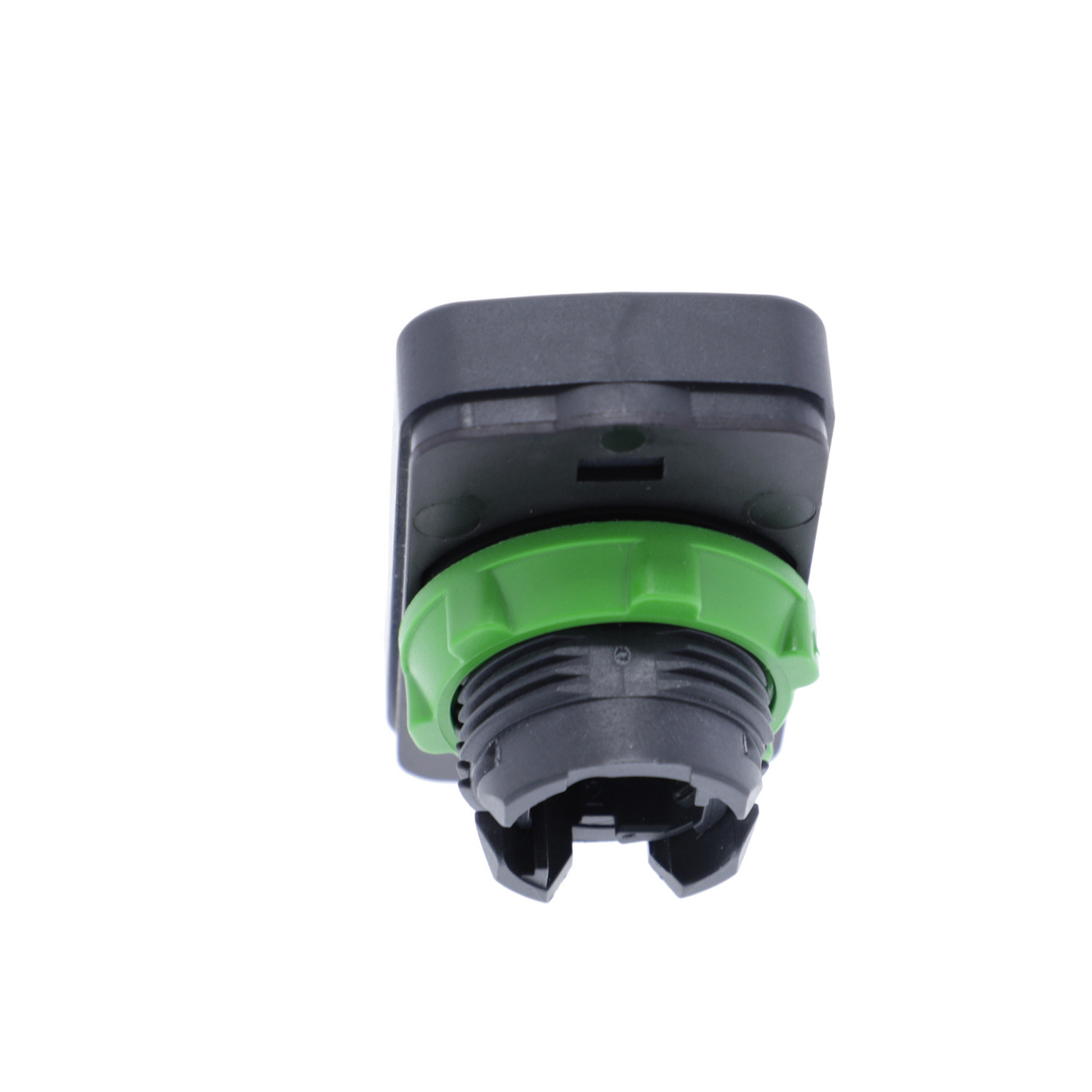

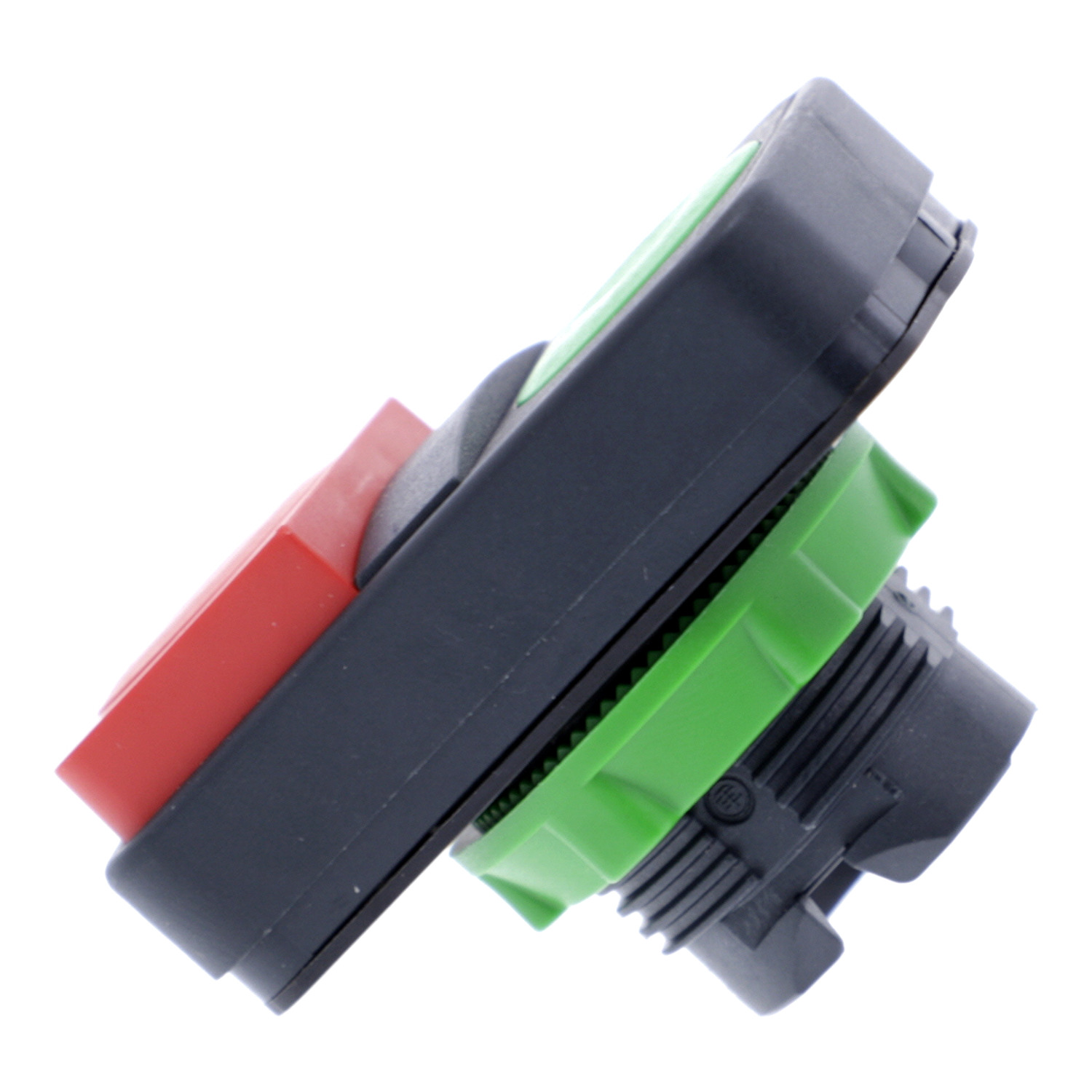

Head for double headed push button, Harmony XB5, plastic, 22mm, 1 green flush marked I + 1 red projecting marked O
ZB5AL7341
| Range of Product | Harmony XB5 |
|---|---|
| Product or Component Type | Head for double-headed push-button |
| Device short name | ZB5 |
| Bezel material | Dark grey plastic |
| Mounting diameter | 0.9 in (22 mm) |
| Head type | Standard |
| Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Rectangular |
| Type of operator | spring return |
| Operator profile | 1 flush – 1 projecting push-buttons |
| Operators description | Green ”I” – red ”O” |
| CAD overall width | 1.2 in (30 mm) |
|---|---|
| CAD overall height | 2.0 in (50 mm) |
| CAD overall depth | 1.4 in (35 mm) |
| Net Weight | 0.051 lb(US) (0.023 kg) |
| Colour of marking | White marking when green, red or black caps Black marking when white caps |
| Operator profile | Green flush, I white) Red projecting, O white) |
| Mechanical durability | 1000000 cycles |
| Station name | XALD 1 cut-out |
| Electrical composition code | C3 6 single front mounting C4 6 single and double front mounting C14 2 single front mounting SF2 2 single front mounting SR2 2 single rear mounting |
| device presentation | Basic element |
| protective treatment | TH |
|---|---|
| Ambient Air Temperature for Storage | -40.0000000000…158.0000000000 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13.0000000000…158.0000000000 °F (-25…70 °C) |
| Electrical shock protection class | Class II IEC 60536 |
| IP degree of protection | IP66 IEC 60529 IP69K IEC 60529 |
| NEMA degree of protection | NEMA 13 NEMA 4X |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131.0000000000 °F (55 °C) 0.1 m |
| IK degree of protection | IK03 conforming to IEC 50102 |
| Standards | IEC 60947-5-4 IEC 60947-1 CSA C22.2 No 14 IEC 60947-5-1 JIS C8201-5-1 UL 508 JIS C8201-1 |
| Product Certifications | GL BV LROS (Lloyds register of shipping) CSA DNV UL Listed |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Category | US10CS222467 |
|---|---|
| Discount Schedule | 0CS2 |
| GTIN | 3389119043311 |
| Returnability | Yes |
| Country of origin | FR |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.2 in (5.5 cm) |
| Package 1 Width | 1.3 in (3.3 cm) |
| Package 1 Length | 2.09 in (5.3 cm) |
| Package 1 Weight | 0.9 oz (26.0 g) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 200 |
| Package 2 Height | 11.8 in (30 cm) |
| Package 2 Width | 11.8 in (30 cm) |
| Package 2 Length | 15.7 in (40 cm) |
| Package 2 Weight | 12.659 lb(US) (5.742 kg) |
| Warranty | 18 months |
|---|
